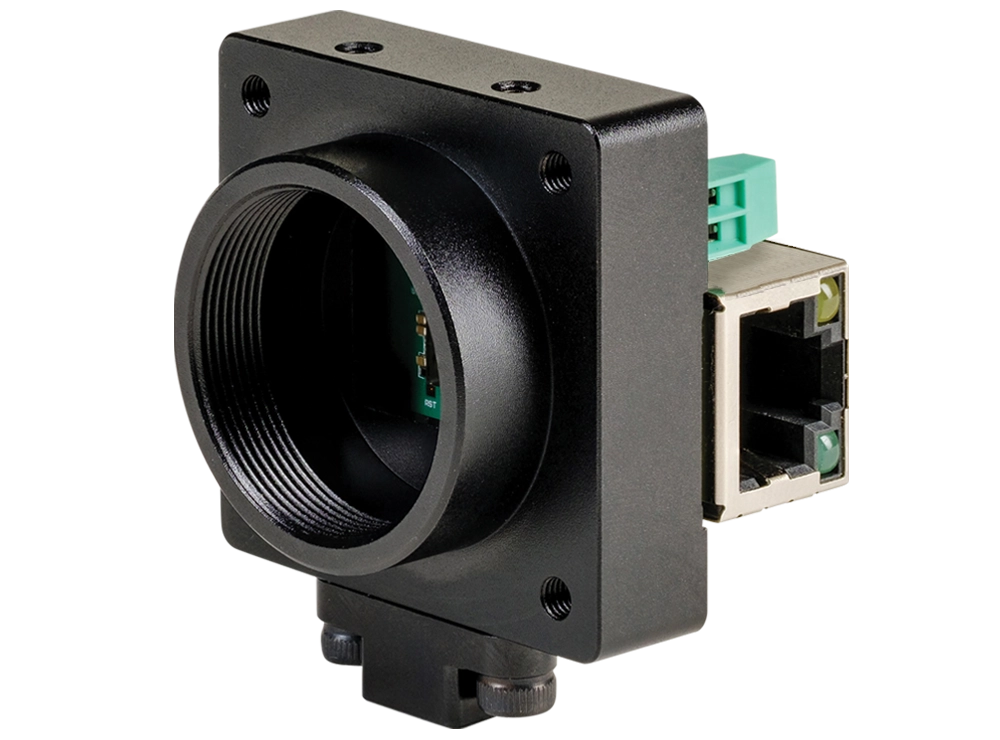

The Imaging Source’s new GigE board-level cameras feature a single-board design with an angled RJ45 connector, delivering an especially compact form factor, measuring just 36 x 36 x 18 mm. With robust data transmission and support for cable lengths up to 100 meters, the GigE board-level cameras ensure stable connectivity and flexible positioning in diverse environments.
| Product code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel size | Trigger | I/O | PoE | Lens mount |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMM 47GX900 | 3.1 MP | 2,048×1,536 | 36 | ¹⁄₃.₁″ | IMX900 | Mono | Global | 2.25 µm | ✓ | ✓ | ✗ | C |
| DMM 47GX568 | 5 MP | 2,448×2,048 | 23 | ¹⁄₁.₈″ | IMX568 | Mono | Global | 2.74 µm | ✓ | ✓ | ✗ | C |
| DMM 47GR0521 | 5 MP | 2,592×1,944 | 22 | ¹⁄₂.₅″ | AR0521 | Mono | Rolling | 2.2 µm | ✓ | ✓ | ✗ | C |
| DMM 47GX676 | 12.5 MP | 3,536×3,536 | 9 | ¹⁄₁.₆″ | IMX676 | Mono | Rolling | 2 µm | ✓ | ✓ | ✗ | C |
| DMM 47GR2020 | 19.7 MP | 5,120×3,840 | 6 | ¹⁄₁.₈″ | AR2020 | Mono | Rolling | 1.4 µm | ✓ | ✓ | ✗ | C |
| DFM 47GX900 | 3.1 MP | 2,048×1,536 | 36 | ¹⁄₃.₁″ | IMX900 | Color | Global | 2.25 µm | ✓ | ✓ | ✗ | C |
| DFM 47GX568 | 5 MP | 2,448×2,048 | 23 | ¹⁄₁.₈″ | IMX568 | Color | Global | 2.74 µm | ✓ | ✓ | ✗ | C |
| DFM 47GR0521 | 5 MP | 2,592×1,944 | 22 | ¹⁄₂.₅″ | AR0521 | Color | Rolling | 2.2 µm | ✓ | ✓ | ✗ | C |
| DFM 47GX676 | 12.5 MP | 3,536×3,536 | 9 | ¹⁄₁.₆″ | IMX676 | Color | Rolling | 2 µm | ✓ | ✓ | ✗ | C |
| DFM 47GR2020 | 19.7 MP | 5,120×3,840 | 6 | ¹⁄₁.₈″ | AR2020 | Color | Rolling | 1.4 µm | ✓ | ✓ | ✗ | C |
The Imaging Source’s new GigE board-level cameras feature a single-board design with an angled RJ45 connector, delivering an especially compact form factor, measuring just 36 x 36 x 18 mm. With robust data transmission and support for cable lengths up to 100 meters, the GigE board-level cameras ensure stable connectivity and flexible positioning in diverse environments.
Automated wide field of view microscope for single lens
Auto Focus & Tracking for automated optical inspection (AOI) Systems and industrial microscopes
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Built in optical protection against strong light or laser sources which can disturb the focus measurement
Full laser line with segment processing
Extreme robust focus results by interactive selection of best focus parameters
Motor controller interface with analog & digital outputs for a seamless closed loop integration with third party’s stepper motor-, piezo-, voice-coil- or servo drives
Applicable to Plan Apo lenses 1x-150x, VIS, IR & UV
Adjustable laser power limitation
User interface with enhanced network capabilities for multi sensor operation
Easy integration of UI functions into the customer software without software library needed
The Imaging Source’s readily customizable USB 2.0 board cameras with onsemi CMOS sensors are the perfect choice for very cost-sensitive USB 2.0 machine vision projects.
