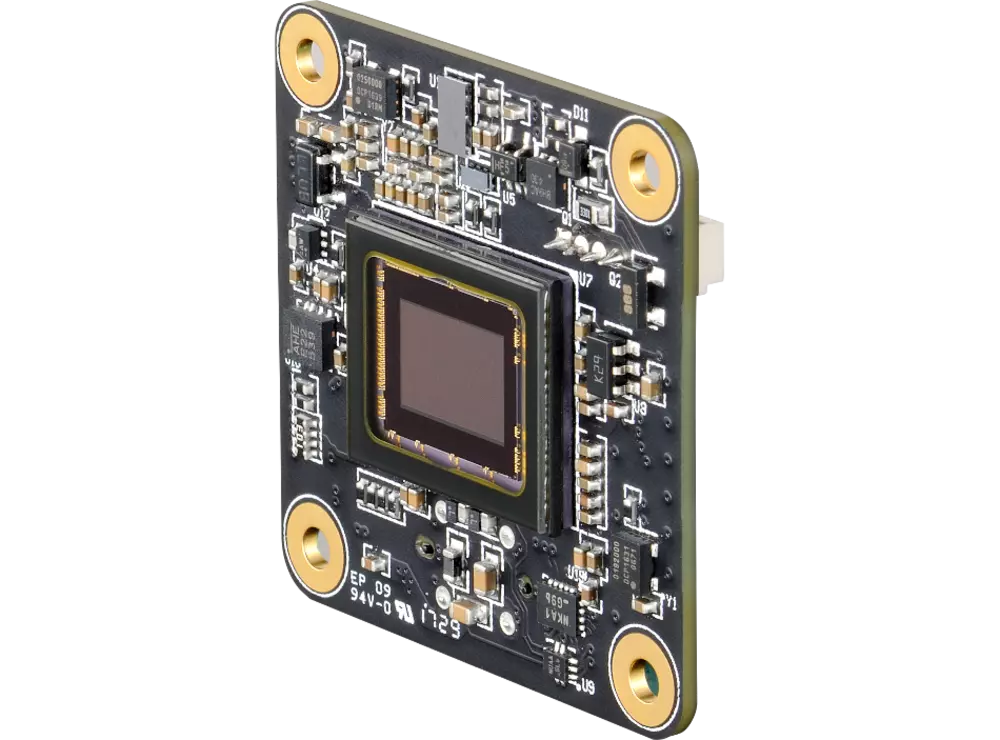

The Imaging Source – 37U Board camera

Name: The Imaging Source – 37U Board camera
SKU: 9303
Availability: InStock

Resolution: 0.4-19.7 MPShutter Type: Rolling & GlobalInterface: USB 3.1

The Imaging Source’s 37 Series board-level cameras provide OEMs with a diverse range of sensor options, making them well-suited to a variety markets and applications. The cameras are USB3 Vision-compliant, offering sensor resolutions ranging from 0.4 MP to an impressive 20 MP. Developers will appreciate the versatile trigger and I/O options, as well as high-contrast images characterized by high dynamic range and exceptional color reproduction.

Features

CMOS sensors: CMOS (Global), CMOS (Rolling), CMOS STARVIS (Rolling), CMOS Pregius (Global), CMOS Pregius S (Global)
Resolutions: 0.4 MP – 19.7 MP
Frame rates: 19 FPS – 539 FPS
Interface: USB 3.1 Interface
Trigger: Yes
OEM Cameras: OEM applications and co-branding for customer projects
Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools by for Windows, Linux x86 and Linux ARM.
Warranty: 3-year warranty with continuous support

Specification for 37U board camera

Product code	MP	Resolution	FPS	Format	Sensor	Mono/Color	Shutter	Pixel size	Trigger	I/O
DMM 37UX287-ML	0.4 MP	720×540	539	¹⁄₂.₉″	IMX287	Mono	Global	6.9 µm	✓	✓
DMM 37UX273-ML	1.6 MP	1,440×1,080	238	¹⁄₂.₉″	IMX273	Mono	Global	3.45 µm	✓	✓
DMM 37UX290-ML	2.1 MP	1,920×1,080	143	¹⁄₂.₈″	IMX290	Mono	Rolling	2.9 µm	✓	✓
DMM 37UR0234-ML	2.3 MP	1,920×1,200	100	¹⁄₂.₆″	AR0234	Mono	Global	3 µm	✓	✓
DMM 37UX252-ML	3.1 MP	2,048×1,536	119	¹⁄₁.₈″	IMX252	Mono	Global	3.45 µm	✓	✓
DMM 37UX265-ML	3.1 MP	2,048×1,536	60	¹⁄₁.₈″	IMX265	Mono	Global	3.45 µm	✓	✓
DMM 37UX250-ML	5 MP	2,448×2,048	75	²⁄₃″	IMX250	Mono	Global	3.45 µm	✓	✓
DMM 37UX568-ML	5 MP	2,448×2,048	74	¹⁄₁.₈″	IMX568	Mono	Global	2.74 µm	✓	✓
DMM 37UX264-ML	5 MP	2,448×2,048	38	²⁄₃″	IMX264	Mono	Global	3.45 µm	✓	✓
DMM 37UR0521-ML	5 MP	2,592×1,944	60	¹⁄₂.₅″	AR0521	Mono	Rolling	2.2 µm	✓	✓
DMM 37UX178-ML	6.3 MP	3,072×2,048	60	¹⁄₁.₈″	IMX178	Mono	Rolling	2.4 µm	✓	✓
DMM 37UX226-ML	12 MP	4,000×3,000	30	¹⁄₁.₇″	IMX226	Mono	Rolling	1.85 µm	✓	✓
DMM 37UR2020-ML	19.7 MP	5,120×3,840	19	¹⁄₁.₈″	AR2020	Mono	Rolling	1.4 µm	✓	✓
DFM 37UX287-ML	0.4 MP	720×540	539	¹⁄₂.₉″	IMX287	Color	Global	6.9 µm	✓	✓
DFM 37UX273-ML	1.6 MP	1,440×1,080	238	¹⁄₂.₉″	IMX273	Color	Global	3.45 µm	✓	✓
DFM 37UX290-ML	2.1 MP	1,920×1,080	143	¹⁄₂.₈″	IMX290	Color	Rolling	2.9 µm	✓	✓
DFM 37UX462-ML	2.1 MP	1,920×1,080	143	¹⁄₂.₈″	IMX462	Color	Rolling	2.9 µm	✓	✓
DFM 37UR0234-ML	2.3 MP	1,920×1,200	100	¹⁄₂.₆″	AR0234	Color	Global	3 µm	✓	✓
DFM 37UX252-ML	3.1 MP	2,048×1,536	119	¹⁄₁.₈″	IMX252	Color	Global	3.45 µm	✓	✓
DFM 37UX265-ML	3.1 MP	2,048×1,536	60	¹⁄₁.₈″	IMX265	Color	Global	3.45 µm	✓	✓
DFM 37UX250-ML	5 MP	2,448×2,048	75	²⁄₃″	IMX250	Color	Global	3.45 µm	✓	✓
DFM 37UX568-ML	5 MP	2,448×2,048	74	¹⁄₁.₈″	IMX568	Color	Global	2.74 µm	✓	✓
DFM 37UX264-ML	5 MP	2,448×2,048	38	²⁄₃″	IMX264	Color	Global	3.45 µm	✓	✓
DFM 37UR0521-ML	5 MP	2,592×1,944	60	¹⁄₂.₅″	AR0521	Color	Rolling	2.2 µm	✓	✓
DFM 37UX178-ML	6.3 MP	3,072×2,048	60	¹⁄₁.₈″	IMX178	Color	Rolling	2.4 µm	✓	✓
DFM 37UX226-ML	12 MP	4,000×3,000	30	¹⁄₁.₇″	IMX226	Color	Rolling	1.85 µm	✓	✓
DFM 37UR2020-ML	19.7 MP	5,120×3,840	19	¹⁄₁.₈″	AR2020	Color	Rolling	1.4 µm	✓	✓

Select options below to view price

Add to Proposal

12K Multispectrum TDI-CMOS Image Sensor

TDI Line Scan · Multispectrum

General Description

I7 is a high resolution multi-spectrum CMOSTDI image sensor with embedded CCD pixels. The sensor is composed of 1 P zone and 4 B zones. P zone features 12K-pixel resolution with 128 TDI stages, pixel size 7um*7um. B zone features 3K-pixel resolution with 64 TDI stages, pixel size 28um*28um. It is designed
with radiation hardness to work reliably in the radiation environment.

Features
High sensitivity and high dynamic range
BSI with peak QE 85%
Highly Integrated SOC with on-chip clock driver, timing & control, ADC
Advanced design structure for better Full-Well and lower noise
Enhanced NIR performance
Super radiation hardness

Applications
 LEO Satellite Observation.
 Industrial Inspection.
 Scientific Research.

Key Parameters

Parameter	P zone	B zone
Resolution	12,288 px	3,072 px
TDI stage	128	64
Pixel size	7 µm × 7 µm	28 µm × 28 µm
Full well	80 Ke⁻	240 Ke⁻
Total noise	< 10 e⁻	< 60 e⁻
Line rate	100 KHz	25 KHz
TDI direction	Bi-direction	Bi-direction
ADC	14-bit	14-bit
MTF	0.50	0.50
FPN	< 1.2%	< 1.2%
PRNU	< 1.5%	< 1.5%
TID	100 Krad	100 Krad
SEE	75 MeV·mg/cm²	75 MeV·mg/cm²

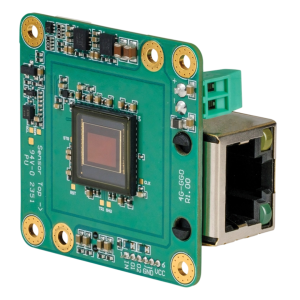

The Imaging Source – 47G ML Variant Board camera
