Name: The Imaging Source – 33U Industrial camera
SKU: 9137
Availability: InStock

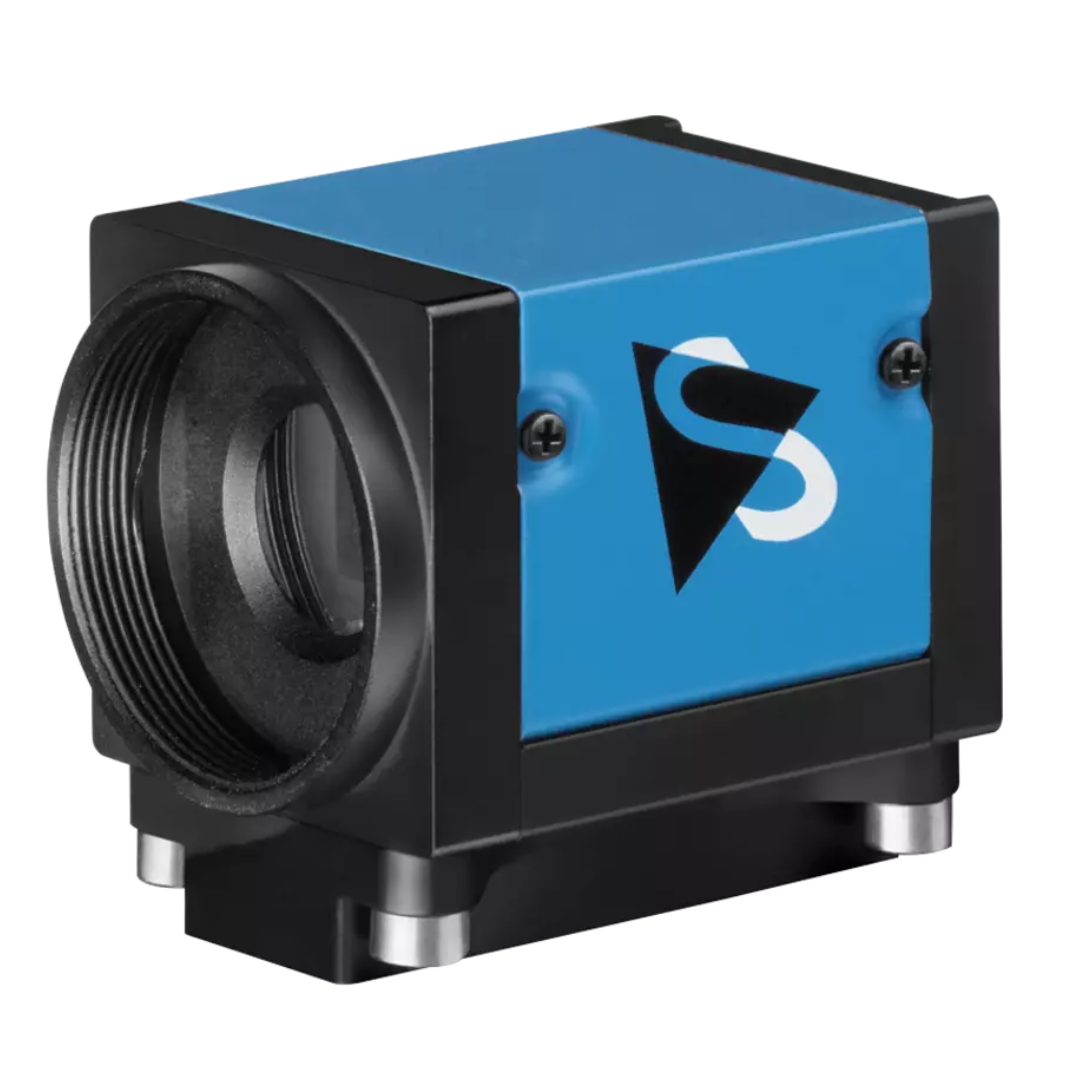

The Imaging Source – 33U Industrial camera

Resolution: 0.4-20 MPShutter Type: Rolling & GlobalInterface: USB 3.0

The 33U Series: The Imaging Source’s largest selection of industrial cameras offers developers and integrators a broad selection of resolutions and frame rates. The cameras’ USB 3 interface ensures efficient data transfer with frame rates of up to 539 fps (higher when using ROIs). These full-featured, industrial cameras deliver cost-effective imaging with a compact and lightweight design.

Features:

CMOS sensors: CMOS Pregius S (Global), CMOS Python (Global), CMOS (Global), CMOS (Rolling), CMOS Pregius (Global), CMOS STARVIS (Rolling), CMOS Exmor (Rolling), CMOS Pregius Polarsens (Global)
Resolutions: 0.4 MP – 20 MP
Frame rates: 18 FPS – 539 FPS
Interface: USB 3.0 Interface
Trigger: Yes
Color camera variants without IR-cut filters: Ideal for near-infrared sensitivity (DBK variant).
OEM Cameras: OEM applications and co-branding for customer projects
Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools by for Windows, Linux x86 and Linux ARM.
Warranty: 3-year warranty with continuous support

Specifications for 33U

Product Code	MP	Resolution	FPS	Format	Sensor	Mono/Color	Shutter	Pixel Size	Trigger	I/O	Avail. w/o IR-Cut
DMK 32AUVR024	0.4 MP	744×480	89	⅓″	AR0234	Mono	Global	6 µm	✗	✗	✗
DMK 32BUVR024	0.4 MP	744×480	89	⅓″	AR0234	Mono	Global	6 µm	✓	✓	✗
DMK 32AUR0234	2.3 MP	1,920×1,200	13	⅒₆″	AR0234	Mono	Global	3 µm	✗	✗	✗
DMK 32BUR0234	2.3 MP	1,920×1,200	13	⅒₆″	AR0234	Mono	Global	3 µm	✓	✓	✗
DMK 32AUR0521	5 MP	2,592×1,944	6	⅒₅″	AR0521	Mono	Rolling	2.2 µm	✗	✗	✗
DMK 32BUR0521	5 MP	2,592×1,944	6	⅒₅″	AR0521	Mono	Rolling	2.2 µm	✓	✓	✗
DFK 32AUVR024	0.4 MP	744×480	89	⅓″	AR0234	Color	Global	6 µm	✗	✗	✓
DFK 32BUVR024	0.4 MP	744×480	89	⅓″	AR0234	Color	Global	6 µm	✓	✓	✓
DFK 32AUR0234	2.3 MP	1,920×1,200	13	⅒₆″	AR0234	Color	Global	3 µm	✗	✗	✓
DFK 32BUR0234	2.3 MP	1,920×1,200	13	⅒₆″	AR0234	Color	Global	3 µm	✓	✓	✓
DFK 32AUR0521	5 MP	2,592×1,944	6	⅒₅″	AR0521	Color	Rolling	2.2 µm	✗	✗	✓
DFK 32BUR0521	5 MP	2,592×1,944	6	⅒₅″	AR0521	Color	Rolling	2.2 µm	✓	✓	✓

Select options below to view price

Add to Proposal

Boost performance by up to 3x over its precursor thanks to an Intel x6000 series embedded processor
Capture high-resolution images at high speed through a choice of CMOS sensors from two to 16 Megapixels
Deploy in dirty, humid, or harsh industrial environments by way of a compact IP67-rated design
Communicate actions and results to other automation and enterprise equipment via real-time digital I/Os, and Ethernet (TCP/IP, CC-Link IE Field Basic, EtherNet/IP™², Modbus®, PROFINET®, and native robot interfaces)
Handle Human-Machine Interface (HMI) function by way of VGA and USB connectivity
Simplify vision setup and upkeep via integrated lens focusing and illumination intensity control
Synchronize to the manufacturing line through the support for incremental rotary encoders
Solve machine vision applications efficiently with Matrox Design Assistant X software by constructing flowcharts instead of writing program code
Maintain control and independence through the ability to code custom flowchart steps
Tackle machine vision applications with utmost confidence using field-proven tools for analyzing, locating, classifying, measuring, reading, and verifying
Leverage deep learning for visual inspection through image classification and segmentation tools
