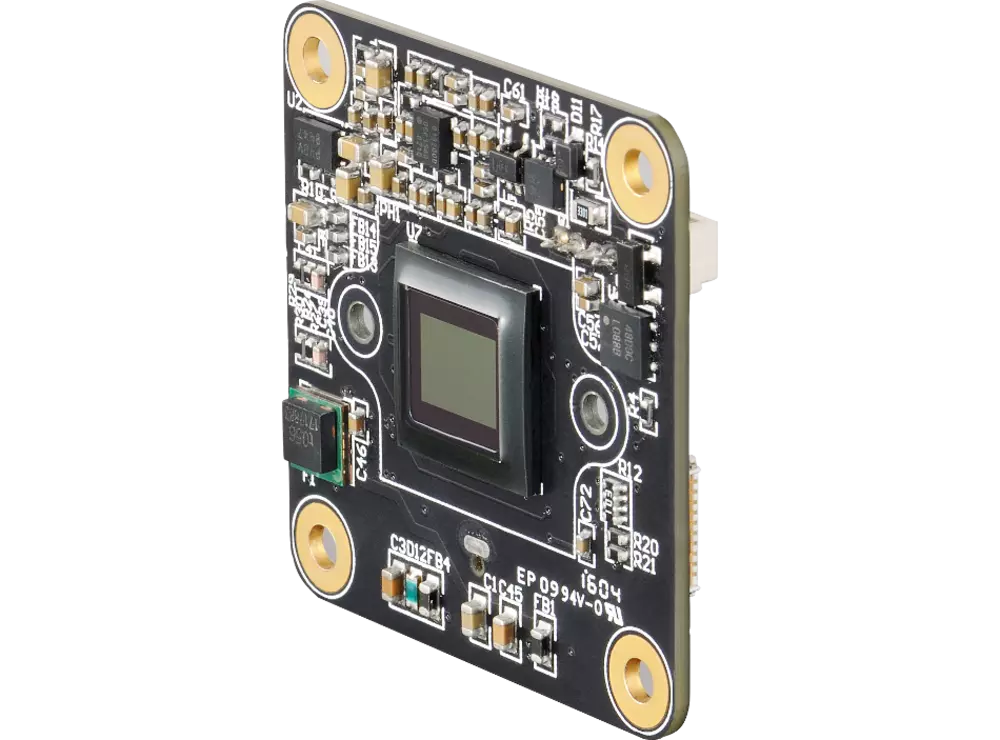

27U Series USB 3.0 board-level cameras from The Imaging Source combine cost optimized onsemi sensors and proven design for a variety of industrial applications.
| Product code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel size | Trigger | I/O |
|---|---|---|---|---|---|---|---|---|---|---|
| DMM 27UR0135-ML | 1.2 MP | 1,280×960 | 60 | ¹⁄₃″ | AR0135 | Mono | Global | 3.75 µm | ✓ | ✓ |
| DFM 27UR0135-ML | 1.2 MP | 1,280×960 | 60 | ¹⁄₃″ | AR0135 | Color | Global | 3.75 µm | ✓ | ✓ |
The Canon IDCCFC Series (IDCCFC-659, IDCCFC-943, IDCCFC-1318) is a CIS type line scan camera by Canon Components, Inc., designed as the ultimate solution for glossy surface inspection. Featuring built-in custom designed diffuse illumination, it delivers reliable and consistent imaging on reflective and high-sheen materials where conventional cameras fall short.
Available in scanning widths up to 1318mm, the series supports resolutions of 600, 300, 200, and 150dpi in both color and monochrome modes, with scan speeds reaching up to 648MPM in monochrome fast mode. Operating on a single 24V power supply and Camera Link® compliant, it integrates easily into existing machine vision systems.
Ideal for a wide range of demanding inspection applications including metal, textile, film, web, wafer, measurement, and print.
Pulse/Direction output (current source to drive opto-isolator of stepper/servo motor drive
Analog focus control output 0-10V (e.g. to feed servo-, piezo- or voice coil controllers in open or closed loop)
Analog quality signal output 0-10V
Ethernet communication to PC (RJ45 supports passive POE)
2x 3W isolated LED supply controlled by Auto Focus user interface
Industrial equipment suitable robust I/O interfacing, power supply/ground isolation, protection circuits, supply 24-48V
Inputs for limit switches and safety stop
Automated Differential Interference Contrast microscope
Automated microscope with rotary lens changer
