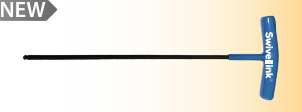

The 5/32 T-Handle wrench is use for the screws in all of the knuckles in both the standard series and XS series (AFSB-2, AFSB-290, AFSB-2XS, AFSB-2XS90, and AFSB-2-2XS) as well as the AFSB-1XS Ball Base mounting to the XS series mounting plates.
This single arm Standard Series kit with a 6” link is ready to mount any standard series mounting
plate. This kit includes: (2) AFSB-1 bases, (2) AFSB-2 knuckles, (1) AFSB-3-6 link, and (1) AFSB-Clamp Handle.
The AFSB-CLAMP HANDLE kit can be used in the standard and XS series knuckles (AFSB-2, AFSB290, AFSB-2XS, AFSB-2XS90, and the AFSB-2-2XS coupler) to make quick adjustments in the positioning of the arms. Remove one of the screws of the knuckle and add the spacer and handle. Once the position is set, tighten the remaining screws. The handle and spacer can then be removed and the original screw can be re-inserted, or the handle can be left on the knuckle.
This kit has a mounting plate for Baumer sensors CS100, ID100, ID110, XC100, XC200, XF100, and XF200. Includes (1) AFSB-580-B-VS plate, (2) AFSB-1XS bases, (2) AFSB-2XS90 tee knuckles, (1) AFSB-3-4XS 4” link.
This single arm Standard Series kit with an 8” link is ready to mount any standard series mounting plate. This kit includes: (2) AFSB-1 bases, (2) AFSB-2 knuckles, (1) AFSB-3-8 link, and (1) AFSB-Clamp Handle.
