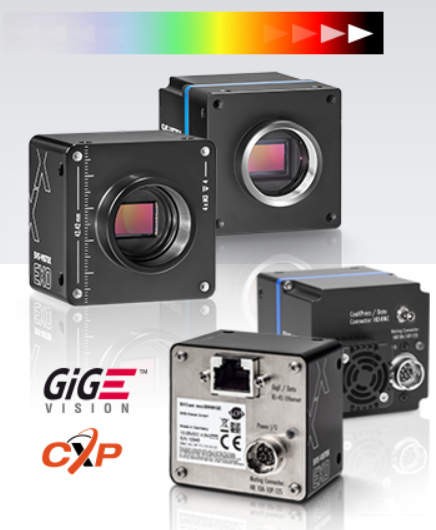

SVS-Vistek SWIR cameras incorporate Sony SenSWIR technology and the proven EXO and FXO camera platforms. Thanks to their wide spectral range and high sensitivity, SVS-Vistek SWIR cameras combine the benefits of an extremely compact footprint with a range from 400nm VIS to the SWIR range at 1700nm. With an innovative thermal design, users can have outstanding optical quality and dynamic range results, potentially using a single camera for multiple areas of the light spectrum.
The FXO stands for excellent image quality. The fast CoaXPress-12 interface gives the camera outstanding properties in terms of trigger latency and constant data rate.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are geared towards applications in demanding industrial automation.
Technical highlights:
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
Polarized cameras are equipped with special image sensors and measure the polarization properties of light that are imperceptible to the human eye. The degree of polarization and the planes of polarization can be determined from a single image. Global shutter, high resolution, high optical dynamic range and high frame rate allow detailed structural analysis of even moving objects.
Despite the special sensors, the EXO Polarized is a standard industrial camera for use with standard lenses. The integrated 4-channel strobe controller supports complex lighting and analysis setups.
