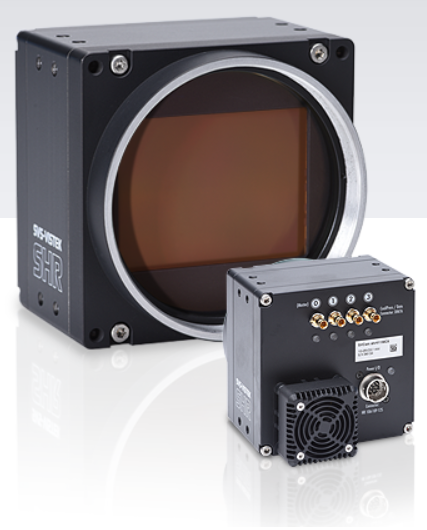

Highest resolution with large pixels and large sensor format: The SHR shines with up to 245 MP resolution when the task at hand requires uncompromising image quality.
Large pixels have many advantages when it comes to image quality in cameras, the physics here are clear. Some high-end tasks require the highest resolutions and impeccable image quality, which cannot be achieved without correspondingly large pixels for the optimum transfer function. This also applies to the highest resolutions. Tasks made for the SHR series.
Large sensors require special care in the camera to ensure a homogeneous image. Shading correction for demanding optical tasks and user-defined defect pixel correction ensure outstanding linearity, homogeneity and low noise.
We connect CMOS sensors in this category with the most powerful interfaces in order to make full use of the sensor’s high data rates. All cameras in the SHR series offer extensive I/O functions with sequencer and integrated strobe controller.
Highest resolution with optimized frame rate
Sony CMOS sensors with rolling and global shutter
Mono and Color (Bayer Pattern, Auto White Balance)
512 MB internal image memory
8 or 12 bit transmission
M72 thread (FFD 19.55)
User-defined Defect Pixel Correction
ROI, Look Up Table, Binning, Gamma, Offset
GenICam compatible
Exposure time: Trigger manual/auto/external
Integrated multi-channel LED strobe controller
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS23
The SHR offers low-noise CMOS sensors with the highest resolution and large pixels in medium format. The high-quality harmonization of the pixels guarantees an impeccable image. Highest structural precision in sensor adjustment in a solid, thermally highly optimized housing make the SHR with its lens shading correction the ideal partner for the most demanding optical tasks.
CoaXPress is currently the fastest standardized interface for industrial cameras over long distances with thin cables. The industrial I/O interface facilitates integration.
Model | [MP] | Resolution [pixel] | Sensor | Sensor Size | Shutter | Frame
Rate [fps] | Chroma | Mount | Interface |
|---|---|---|---|---|---|---|---|---|---|
| shr461CCX | 101.8 | 11648 x 8742 | IMX461LQA / Sony | 55mm (Type 3.4) | R | 8.7 | color | M72x0.75 | CXP-6 with 4 Connections |
| shr461MCX | 101.8 | 11648 x 8742 | IMX461LLA / Sony | 55mm (Type 3.4) | R | 8.7 | mono | M72x0.75 | CXP-6 with 4 Connections |
| shr661CCX12 | 127.6 | 13392 x 9528 | IMX661LQA / Sony | 56.73mm (Type 3.6) | G | 20.3 | color | M72x0.75 | CXP-12 with 4 Connections |
| shr661MCX12 | 127.6 | 13392 x 9528 | IMX661LLA / Sony | 56.73mm (Type 3.6) | G | 20.3 | mono | M72x0.75 | CXP-12 with 4 Connections |
| shr411CCX | 151 | 14192 x 10640 | IMX411AQR / Sony | 66.7mm (Type 4.2) | R | 6.1 | color | M72x0.75 | CXP-6 with 4 Connections |
| shr411MCX | 151 | 14192 x 10640 | IMX411ALR / Sony | 66.7mm (Type 4.2) | R | 6.1 | mono | M72x0.75 | CXP-6 with 4 Connections |
| shr811CCX12 | 245.8 | 19200 x 12800 | IMX811-AAQR-C / Sony | 64.84mm (Type 4.1) | R | 12.4 | color | M72x0.75 | CXP-12 with 4 Connections |
| shr811MCX12 | 245.8 | 19200 x 12800 | IMX811-AAMR-C / Sony | 64.84mm (Type 4.1) | R | 12.4 | mono | M72x0.75 | CXP-12 with 4 Connections |
Matrox® Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox Imaging vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronization of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).
![SVS-VISTEK HR [CoaXPress]](https://www.jm-vistec.com/wp-content/uploads/2023/01/SVS-HR-300x300.png)
The HR series combines high-resolution image sensors with powerful machine vision interfaces. With state-of-the-art interfaces, the HR achieves data rates of up to 50 Gbit/s and resolutions of up to 122 MP.
The 10GigE version also offers a world first: thermoelectric cooling/heating and an innovative ventilation system ensure an absolutely stable sensor temperature and therefore excellent image quality.
The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.
HR series cameras combine high resolutions with high data rates. The elaborately designed solid housing ensures excellent temperature management, which guarantees stable operation even with large sensors. The HR series is ideally equipped with the latest machine vision interfaces (10GigE Vision, Camera Link, CoaXPress).
High-resolution sensors require special care when adjusting the homogeneity of the image. Shading correction for demanding optical tasks and user-defined Defect Pixel Correction ensure outstanding linearity, homogeneity and low noise.
The M58 lens thread was designed so that almost all lenses can be connected using appropriate adapters (F-mount and EF-mount) and can be optimally adapted to your imaging task.
The IO concept offers programmable IO logic, sequencer, timer, SafeTrigger and an integrated 4-channel LED flash controller. The controller integrated in the GenICam tree of the camera can be controlled via any GenICam application (e.g. HALCON, MERLIC, MatLab, VisionPro) or the SV-Capture from the SVS-Vistek SDK.
The high resolution enables an extremely wide field of view and makes the HR series ideal for applications such as optical metrology, quality control and monitoring of large areas. The HR is available with 10GigE, CoaXPress or Camera Link interface.
The HR series combines high-resolution image sensors with powerful machine vision interfaces. With state-of-the-art interfaces, the HR achieves data rates of up to 50 Gbit/s and resolutions of up to 122 MP.
The 10GigE version also offers a world first: thermoelectric cooling/heating and an innovative ventilation system ensure an absolutely stable sensor temperature and therefore excellent image quality.
The HR series with Camera Link Interface combines the advantages of this interface, the performance, with safe and easy handling.
HR series cameras combine high resolutions with high data rates. The elaborately designed solid housing ensures excellent temperature management, which guarantees stable operation even with large sensors. The HR series is ideally equipped with the latest machine vision interfaces (10GigE Vision, Camera Link, CoaXPress).
High-resolution sensors require special care when adjusting the homogeneity of the image. Shading correction for demanding optical tasks and user-defined Defect Pixel Correction ensure outstanding linearity, homogeneity and low noise.
The M58 lens thread was designed so that almost all lenses can be connected using appropriate adapters (F-mount and EF-mount) and can be optimally adapted to your imaging task.
The IO concept offers programmable IO logic, sequencer, timer, SafeTrigger and an integrated 4-channel LED flash controller. The controller integrated in the GenICam tree of the camera can be controlled via any GenICam application (e.g. HALCON, MERLIC, MatLab, VisionPro) or the SV-Capture from the SVS-Vistek SDK.
The high resolution enables an extremely wide field of view and makes the HR series ideal for applications such as optical metrology, quality control and monitoring of large areas. The HR is available with 10GigE, CoaXPress or Camera Link interface.
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
