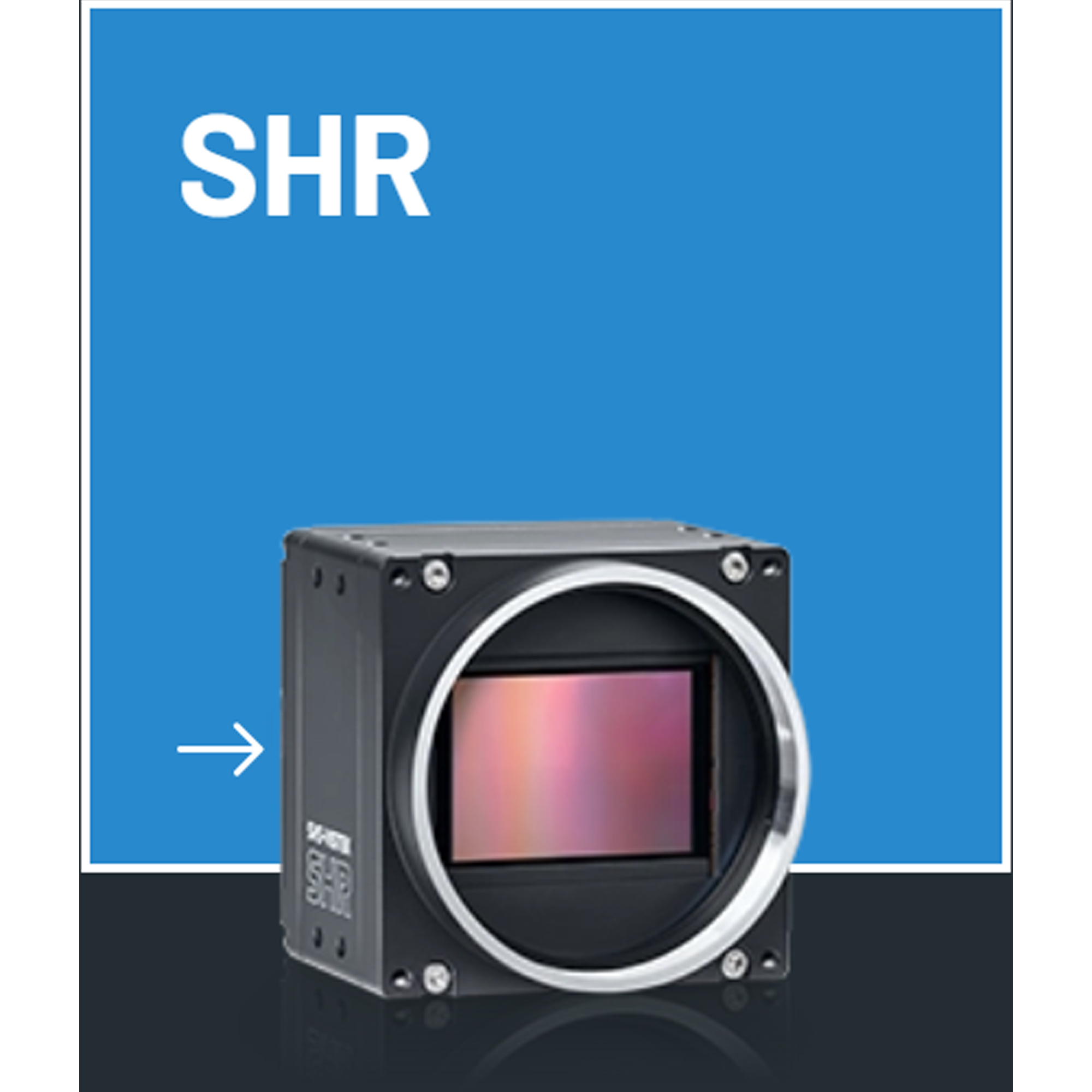

Highest resolution with large pixels and large sensor format: The SHR shines with up to 245 MP resolution when the task at hand requires uncompromising image quality.
Large pixels have many advantages when it comes to image quality in cameras, the physics here are clear. Some high-end tasks require the highest resolutions and impeccable image quality, which cannot be achieved without correspondingly large pixels for the optimum transfer function. This also applies to the highest resolutions. Tasks made for the SHR series.
Large sensors require special care in the camera to ensure a homogeneous image. Shading correction for demanding optical tasks and user-defined defect pixel correction ensure outstanding linearity, homogeneity and low noise.
We connect CMOS sensors in this category with the most powerful interfaces in order to make full use of the sensor’s high data rates. All cameras in the SHR series offer extensive I/O functions with sequencer and integrated strobe controller.
Highest resolution with optimized frame rate
Sony CMOS sensors with rolling and global shutter
Mono and Color (Bayer Pattern, Auto White Balance)
512 MB internal image memory
8 or 12 bit transmission
M72 thread (FFD 19.55)
User-defined Defect Pixel Correction
ROI, Look Up Table, Binning, Gamma, Offset
GenICam compatible
Exposure time: Trigger manual/auto/external
Integrated multi-channel LED strobe controller
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS23
The SHR series offers image quality at the highest level with the highest resolutions. This is made possible by the special physical features offered by large pixels in large-format sensors. Added to this is the highest structural precision in sensor adjustment in a solid, thermally highly optimized housing. The large M72 lens mount with a flange distance of 19.55 mm can be adapted to any lens.
The economical and high-performance 10GigE interface offers up to 1.25 GB/s data transfer for these large images. A special frame grabber is not required.
Highlights of the SHR series (some features only on some models):
Model | [MP] | Resolution [pixel] | Sensor | Sensor Size | Shutter | Frame
Rate [fps] | Chroma | Mount | Interface |
|---|---|---|---|---|---|---|---|---|---|
| shr461CXGE | 101.8 | 11648 x 8742 | IMX461LQA / Sony | 55mm (Type 3.4) | R | 8.7 | color | M72x0.75 | 10GigE |
| shr461MXGE | 101.8 | 11648 x 8742 | IMX461LLA / Sony | 55mm (Type 3.4) | R | 8.7 | mono | M72x0.75 | 10GigE |
| shr661CXGE | 127.6 | 13392 x 9528 | IMX661LQA / Sony | 56.73mm (Type 3.6) | G | 8.2 | color | M72x0.75 | 10GigE |
| shr661MXGE | 127.6 | 13392 x 9528 | IMX661LLA / Sony | 56.73mm (Type 3.6) | G | 8.2 | mono | M72x0.75 | 10GigE |
| shr411CXGE | 151 | 14192 x 10640 | IMX411AQR / Sony | 66.7mm (Type 4.2) | R | 6.1 | color | M72x0.75 | 10GigE |
| shr411CXGE-T | 151 | 14192 x 10640 | IMX411AQR / Sony | 66.7mm (Type 4.2) | R | 6.1 | color | M72x0.75 | 10GigE |
| shr411MXGE | 151 | 14192 x 10640 | IMX411ALR / Sony | 66.7mm (Type 4.2) | R | 6.1 | mono | M72x0.75 | 10GigE |
| shr411MXGE-T | 151 | 14192 x 10640 | IMX411ALR / Sony | 66.7mm (Type 4.2) | R | 6.1 | mono | M72x0.75 | 10GigE |
