Excellent Performance, Flexibility And Cost Efficiency

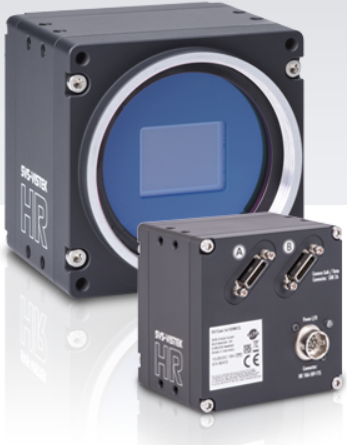

The HR series with Camera Link Interface combines the advantages of this interface, the performance, with safe and easy handling.
Highest resolutions at high frame rates for industrial cameras is the core area of the HR series. The HR series impresses with a wide range of features:
Camera Link offers high data rates, deterministic time response and very direct access to the image sensor. This enables settings and operating modes that are not available with other interfaces, even for industrial cameras with the highest resolutions.
The high resolutions recommend the HR for demanding measurement technology.
The main areas of application are semiconductor, pharmaceutical and beverage technology as well as pressure inspection.
| Model | MP | Resolution | Chroma | Sensor Size | Frame Rates (fps) |
| hr25MCL | 25 | 5120 x 5120 pixel | M0nochrome | APS-H (32,58mm) CMOS | 31.8 |
| hr49MCL | 49 | 7008 x 7000 pixel | M0nochrome | 37.4mm CMOS | 17 (Grade 2 Sensor) |
| hr65MCL | 65 | 9344 x 7000 pixel | M0nochrome | 37.4mm CMOS | 13 |
| hr65MCL-G2 | 65 | 9344 x 7000 pixel | M0nochrome | 37.4mm CMOS | 13 (Grade 2 Sensor) |
| hr120MCL | 122 | 13272 x 9176 pixel | M0nochrome | APS-H" CMOS | 6.8 |
| hr120MCL-F | 122 | 13272 x 9176 pixel | M0nochrome | APS-H" CMOS | 6.8 |
| hr25CCL | 25 | 5120 x 5120 pixel | Color (Bayer) | APS-H (32,58mm) CMOS | 31.8 |
| hr49CCL | 49 | 7008 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 17 (Grade 2 Sensor) |
| hr65CCL | 65 | 9344 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 13 |
| hr65CCL-G2 | 65 | 9344 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 13 (Grade 2 Sensor) |
| hr120CCL-F | 122 | 13272 x 9176 pixel | Color (Bayer) | APS-H" CMOS | 6.8 |
| hr120CCL | 122 | 13272 x 9176 pixel | Color (Bayer) | APS-H" CMOS | 6.8 |
Thermoelectric Cooling (TEC) TEC is dynamically controlled to maintain stable sensor temp. Quickly compensates for varying ambient temperatures Creates reproducible measuring results Long exposure times without induced thermal noise.
