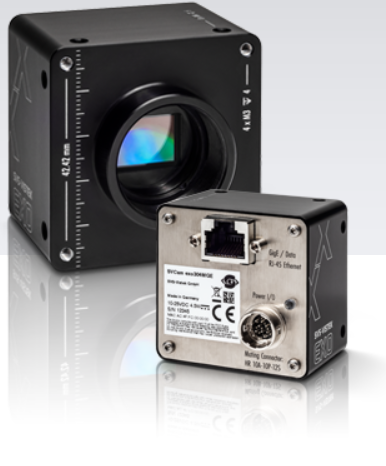

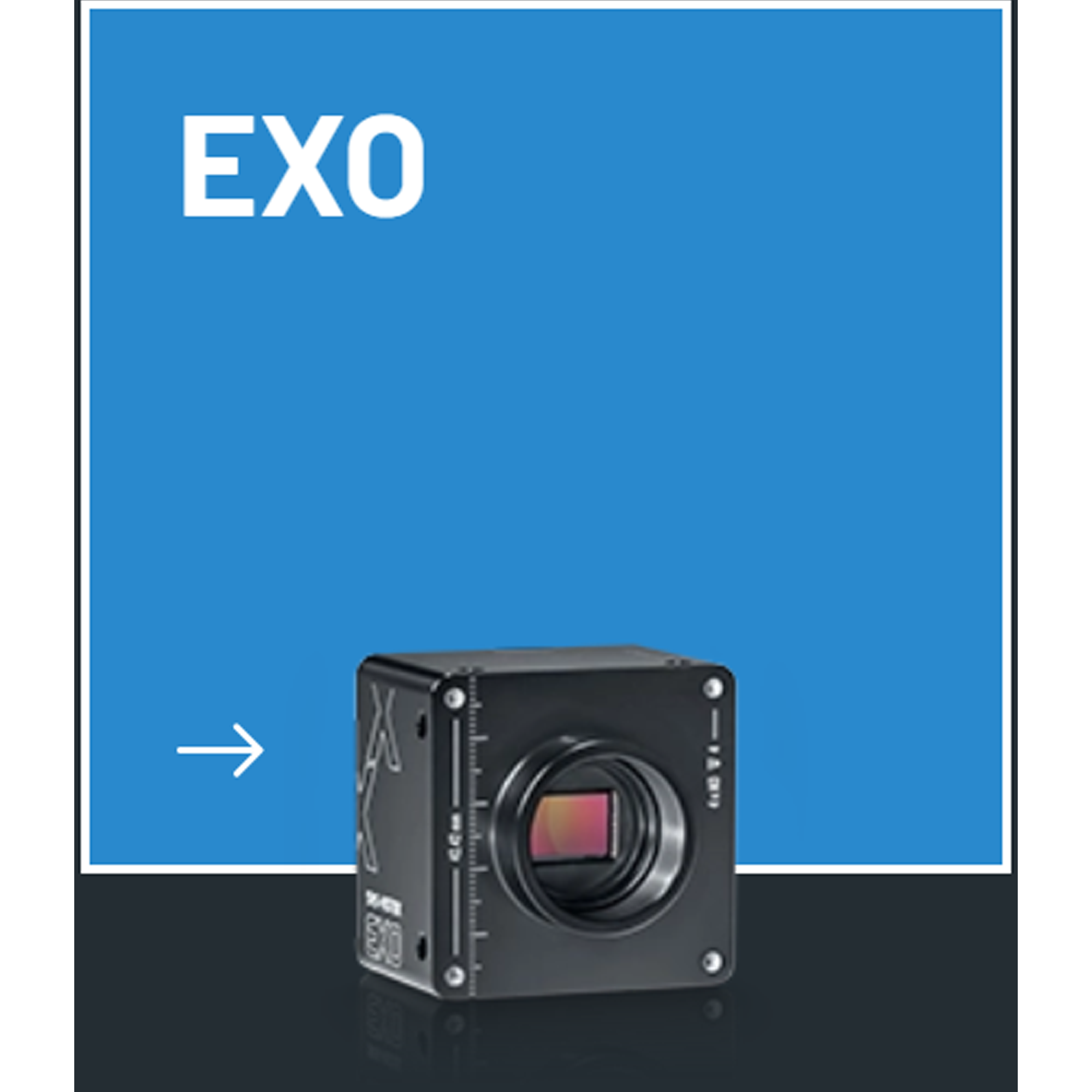

A wide variety of CMOS sensors are installed in the EXO. It offers a wide range of interfaces such as GigE Vision, Camera Link and USB3 Vision, all with an integrated strobe controller.
The precisely crafted unibody housing and a wide range of CMOS sensors from Sony and CMOSIS form the basis for this versatile industrial camera. The EXO is easy to integrate thanks to the large number of standardized mounting holes and offers a stable connection for any type of lens.
With an excellent image, outstanding temperature performance, multiple inputs, PLC functionality and a multichannel strobe controller, the EXO offers an extremely flexible, powerful and economical overall package.
The EXO series with GigE Vision interface offers cameras with resolutions from 1.6 to 24.5 MP.
A close thermal connection of the low-power optimized electronics and the sensor to the unibody housing enables operating temperatures of 60°C for most EXOs. The EXO is available with the established GigE Vision, Camera Link and USB3 Vision interfaces and supports the latest standards such as GenICam 3.0 and USB 3.1. In the tracer version, it controls all lens functions such as zoom, focus and iris with its MFT bayonet. The integrated power I/O interface enables simple control tasks to be performed with hardware precision via the PLC functionality and/or up to 4 LED lights to be controlled directly without additional drivers.
The EXO series therefore fulfills a wide range of different requirements: A robust and precise industrial camera, extremely scalable with a wide range of CMOS sensors, easy to integrate thanks to standardized pinouts and consistent dimensions, extremely flexible due to availability in the most important interface standards and rich in important features.
Model | [MP] | Resolution [pixel] | Sensor | Sensor Size | Shutter | Frame
Rate [fps] | Chroma | Mount | Interface |
|---|---|---|---|---|---|---|---|---|---|
| exo273CGE | 1.6 | 1440 x 1080 | IMX273LQR / Sony | 6.3mm (Type 1/2.9) | G | 79 | color | C | GigE |
| exo273MGE | 1.6 | 1440 x 1080 | IMX273LLR / Sony | 6.3mm (Type 1/2.9) | G | 79 | mono | C | GigE |
| exo174CGE | 2.3 | 1920 x 1200 | IMX174LQJ / Sony | 13.4mm (Type 1/1.2) | G | 53.6 | color | C | GigE |
| exo174MGE | 2.3 | 1920 x 1200 | IMX174LLJ / Sony | 13.4mm (Type 1/1.2) | G | 53.6 | mono | C | GigE |
| exo249CGE | 2.3 | 1920 x 1200 | IMX249LQJ / Sony | 13.4mm (Type 1/1.2) | G | 41 | color | C | GigE |
| exo249MGE | 2.3 | 1920 x 1200 | IMX249LLJ / Sony | 13.4mm (Type 1/1.2) | G | 41 | mono | C | GigE |
| exo265CGE | 3.1 | 2048 x 1536 | IMX265LQR / Sony | 8.9mm (Type 1/1.8) | G | 39 | color | C | GigE |
| exo265MGE | 3.1 | 2048 x 1536 | IMX265LLR / Sony | 8.9mm (Type 1/1.8) | G | 39 | mono | C | GigE |
| exo4000CGE | 4 | 2048 x 2048 | CMV4000-3E5C1PP / CMOSIS | 15.9mm (1") | G | 29.5 | color | C | GigE |
| exo4000MGE | 4 | 2048 x 2048 | CMV4000-3E5M1PP / CMOSIS | 15.9mm (1") | G | 29.5 | mono | C | GigE |
| exo250CGE | 5 | 2448 x 2048 | IMX250LQR / Sony | 11.1mm (Type 2/3) | G | 24.5 | color | C | GigE |
| exo250MGE | 5 | 2448 x 2048 | IMX250LLR / Sony | 11.1mm (Type 2/3) | G | 24.5 | mono | C | GigE |
| exo264CGE | 5 | 2448 x 2048 | IMX264LQR / Sony | 11.1mm (Type 2/3) | G | 24.5 | color | C | GigE |
| exo264MGE | 5 | 2448 x 2048 | IMX264LLR / Sony | 11.1mm (Type 2/3) | G | 24.5 | mono | C | GigE |
| exo547CGE | 5 | 2448 x 2048 | IMX547LQA / Sony | 8.8mm (Type 1/1.8) | G | 24.5 | color | C | GigE |
| exo547MGE | 5 | 2448 x 2048 | IMX547LLA / Sony | 8.8mm (Type 1/1.8) | G | 24.5 | mono | C | GigE |
| exo428CGE | 7.1 | 3208 x 2200 | IMX428LQR / Sony | 17.6mm (Type 1.1) | G | 17.4 | color | C | GigE |
| exo428MGE | 7.1 | 3208 x 2200 | IMX428LLR / Sony | 17.6mm (Type 1.1) | G | 17.4 | mono | C | GigE |
| exo546CGE | 8.1 | 2840 x 2840 | IMX546LQA / Sony | 11.1mm (Type 2/3) | G | 15 | color | C | GigE |
| exo546MGE | 8.1 | 2840 x 2840 | IMX546LLA / Sony | 11.1mm (Type 2/3) | G | 15 | mono | C | GigE |
| exo267CGE | 8.8 | 4096 x 2160 | IMX267LQR / Sony | 16.1mm (Type 1) | G | 13.5 | color | C | GigE |
| exo267MGE | 8.8 | 4096 x 2160 | IMX267LLR / Sony | 16.1mm (Type 1) | G | 13.5 | mono | C | GigE |
| exo304CGE | 12.3 | 4096 x 3000 | IMX304LQR / Sony | 17.6mm (Type 1.1) | G | 10 | color | C | GigE |
| exo304MGE | 12.3 | 4096 x 3000 | IMX304LLR / Sony | 17.6mm (Type 1.1) | G | 10 | mono | C | GigE |
| exo545CGE | 12.3 | 4096 x 3000 | IMX545LQA / Sony | 14mm (Type 1/1.1) | G | 10 | color | C | GigE |
| exo545MGE | 12.3 | 4096 x 3000 | IMX545LLA / Sony | 14mm (Type 1/1.1) | G | 10 | mono | C | GigE |
| exo542CGE | 16.1 | 5320 x 3032 | IMX542LQA / Sony | 16.8mm (Type 1.1) | G | 7 | color | C | GigE |
| exo542MGE | 16.1 | 5320 x 3032 | IMX542LLA / Sony | 16.8mm (Type 1.1) | G | 7 | mono | C | GigE |
| exo901CGE | 16.4 | 8016 x 2048 | IMX901-AQR / Sony | 22.7mm (Type 1.4) | G | 7.5 | color | C | GigE |
| exo901MGE | 16.4 | 8016 x 2048 | IMX901-AMR / Sony | 22.7mm (Type 1.4) | G | 7.5 | mono | C | GigE |
| exo387CGE | 16.8 | 5456 x 3076 | IMX387LQA / Sony | 21.7mm (Type 4/3) | G | 7.4 | color | M42 | GigE |
| exo387MGE | 16.8 | 5456 x 3076 | IMX387LLA / Sony | 21.7mm (Type 4/3) | G | 7.4 | mono | M42 | GigE |
| exo367CGE | 19.6 | 4416 x 4428 | IMX367LQA / Sony | 21.6mm (Type 4/3) | G | 6.2 | color | M42 | GigE |
| exo367MGE | 19.6 | 4416 x 4428 | IMX367LLA / Sony | 21.6mm (Type 4/3) | G | 6.2 | mono | M42 | GigE |
| exo183CGE | 20.2 | 5496 x 3672 | IMX183CQJ / Sony | 15.86mm (Type 1) | R | 6 | color | C | GigE |
| exo183MGE | 20.2 | 5496 x 3672 | IMX183CLK / Sony | 15.86mm (Type 1) | R | 6 | mono | C | GigE |
| exo541CGE | 20.3 | 4504 x 4504 | IMX541LQA / Sony | 17.5mm (Type 1.1) | G | 6 | color | C | GigE |
| exo541MGE | 20.3 | 4504 x 4504 | IMX541LLA / Sony | 17.5mm (Type 1.1) | G | 6 | mono | C | GigE |
| exo540CGE | 24.5 | 5320 x 4600 | IMX540LQA / Sony | 19.3mm (Type 1.2) | G | 5 | color | C | GigE |
| exo540MGE | 24.5 | 5320 x 4600 | IMX540LLA / Sony | 19.3mm (Type 1.2) | G | 5 | mono | C | GigE |
| exo342CGE | 31.4 | 6464 x 4852 | IMX342LQA / Sony | 27.9mm (APS-C) | G | 3.8 | color | M42 | GigE |
| exo342MGE | 31.4 | 6464 x 4852 | IMX342LLA / Sony | 27.9mm (APS-C) | G | 3.8 | mono | M42 | GigE |
Key Features:
The FXO series combines the outstanding image quality of the Sony Pregius S sensor with state-of-the-art, fast interfaces. 10GigE, 25GigE and CoaXPress-12 are supported. The integrated strobe controller facilitates the construction of very slim applications.
The Pregius S sensor from Sony with global shutter shines with outstanding image quality and is the heart of the FXO series. The 2.74 µm – 9 µm pixel has a high light sensitivity combined with very low noise. The excellent homogeneity and dynamic range of the image set standards.
An elaborately milled housing for each sensor provides the optimum temperature distribution for this high-performance sensor. The FXO combines the outstanding sensor with the fastest interfaces in the machine vision sector.
With its excellent image, fast interfaces, versatile inputs and an integrated multichannel strobe controller, the FXO offers an extremely flexible, powerful and economical camera concept. The small pixel enables more favorable lenses for the high resolutions.
The FXO series with CXP interface is available in versions with one or two CoaXPress-12 connections. This enables the FXO to achieve data rates of 12.5 or 25 Gbit/s.
The FXO 10GigE offers resolutions of up to 24.5 MP and frame rates of up to 124 fps.
Brand new and incredibly fast: the FXO 25GigE delivers up to 671 fps with a resolution of 1.8 MP.
The highest demands on image quality and data rate are the field of application of the FXO. The small pixels allow a high resolution in the application despite the small design and the use of inexpensive lenses.
The integrated GenICam strobe controller effectively saves costs by reducing the number of components. In plant engineering, the fast FXO scores with the latest sensor technology, the extended temperature range and many I/O interfaces.
Winner of the prestigious Vision Systems and Design Magazine’s Innovators Award 2018, the IC-X50T-CXP mono and color versions showcase ISVI’s expertise in leading-edge camera design.
Key Features:
Key Features:
