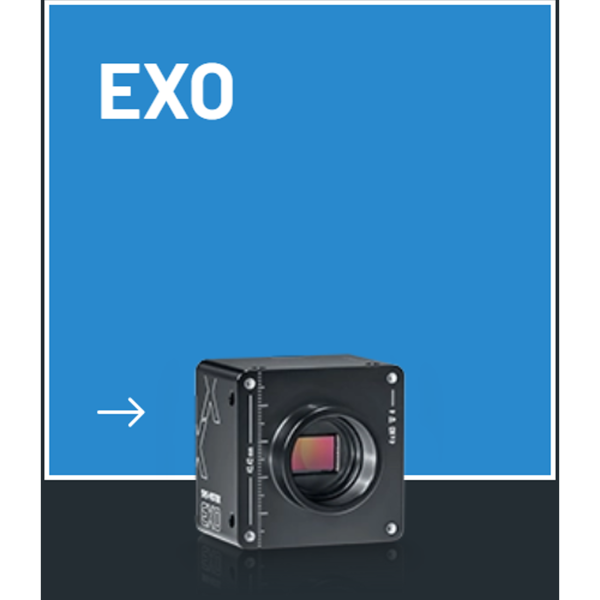

A wide variety of CMOS sensors are installed in the EXO. It offers a wide range of interfaces such as GigE Vision, Camera Link and USB3 Vision, all with an integrated strobe controller.
The precisely crafted unibody housing and a wide range of CMOS sensors from Sony and CMOSIS form the basis for this versatile industrial camera. The EXO is easy to integrate thanks to the large number of standardized mounting holes and offers a stable connection for any type of lens.
With an excellent image, outstanding temperature performance, multiple inputs, PLC functionality and a multichannel strobe controller, the EXO offers an extremely flexible, powerful and economical overall package.

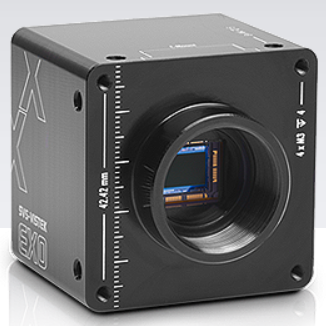

Small, very robust, easy to integrate: The EXO Camera Link series offers resolutions from 2.3 to 20.2 MP.
The EXO series with GigE Vision interface offers cameras with resolutions from 1.6 to 24.5 MP.
Particularly versatile: The EXO series with USB3 interface offers resolutions from 2.3 MP (160 fps) to 31.4 MP (12 fps).
The EXO Tracer series with MFT mount is available with GigE Vision and USB3 interface.
A close thermal connection of the low-power optimized electronics and the sensor to the unibody housing enables operating temperatures of 60°C for most EXOs. The EXO is available with the established GigE Vision, Camera Link and USB3 Vision interfaces and supports the latest standards such as GenICam 3.0 and USB 3.1. In the tracer version, it controls all lens functions such as zoom, focus and iris with its MFT bayonet. The integrated power I/O interface enables simple control tasks to be performed with hardware precision via the PLC functionality and/or up to 4 LED lights to be controlled directly without additional drivers.
The EXO series therefore fulfills a wide range of different requirements: A robust and precise industrial camera, extremely scalable with a wide range of CMOS sensors, easy to integrate thanks to standardized pinouts and consistent dimensions, extremely flexible due to availability in the most important interface standards and rich in important features.
| Model | MP | Resolution | Chroma | Sensor Size | Frame Rates (fps) |
| exo174MCL | 2.3 | 1920 x 1200 pixel | Monochrome | 1/1.2" CMOS | 105 |
| exo252MCL | 3.1 | 2048 x 1536 pixel | Monochrome | 1/1.8" CMOS, | 78 |
| exo250MCL | 5 | 2448 x 2048 pixel | Monochrome | 2/3" CMOS, | 49 |
| exo267MCL | 8.8 | 4096 x 2160 pixel | Monochrome | 1" CMOS | 28 |
| exo304MCL | 12.3 | 4096 x 3000 pixel | Monochrome | 1.1" CMOS | 20 |
| exo183MCL | 20.2 | 5488 x 3672 pixel | Monochrome | 1" CMOS | 12 |
| exo174CCL | 2.3 | 1920 x 1200 pixel | Color (Bayer) | 1/1.2" CMOS | 105 |
| exo252CCL | 3.1 | 2048 x 1536 pixel | Color (Bayer) | 1/1.8" CMOS, | 78 |
| exo250CCL | 5 | 2448 x 2048 pixel | Color (Bayer) | 2/3" CMOS, | 49 |
| exo267CCL | 8.8 | 4096 x 2160 pixel | Color (Bayer) | 1" CMOS | 28 |
| exo304CCL | 12.3 | 4096 x 3000 pixel | Color (Bayer) | 1.1" CMOS | 20 |
| exo183CCL | 20.2 | 5488 x 3672 pixel | Color (Bayer) | 1" CMOS | 12 |
The FXO series combines the outstanding image quality of the Sony Pregius S sensor with state-of-the-art, fast interfaces. 10GigE, 25GigE and CoaXPress-12 are supported. The integrated strobe controller facilitates the construction of very slim applications.
The Pregius S sensor from Sony with global shutter shines with outstanding image quality and is the heart of the FXO series. The 2.74 µm – 9 µm pixel has a high light sensitivity combined with very low noise. The excellent homogeneity and dynamic range of the image set standards.
An elaborately milled housing for each sensor provides the optimum temperature distribution for this high-performance sensor. The FXO combines the outstanding sensor with the fastest interfaces in the machine vision sector.
With its excellent image, fast interfaces, versatile inputs and an integrated multichannel strobe controller, the FXO offers an extremely flexible, powerful and economical camera concept. The small pixel enables more favorable lenses for the high resolutions.
The FXO series with CXP interface is available in versions with one or two CoaXPress-12 connections. This enables the FXO to achieve data rates of 12.5 or 25 Gbit/s.
The FXO 10GigE offers resolutions of up to 24.5 MP and frame rates of up to 124 fps.
Brand new and incredibly fast: the FXO 25GigE delivers up to 671 fps with a resolution of 1.8 MP.
The highest demands on image quality and data rate are the field of application of the FXO. The small pixels allow a high resolution in the application despite the small design and the use of inexpensive lenses.
The integrated GenICam strobe controller effectively saves costs by reducing the number of components. In plant engineering, the fast FXO scores with the latest sensor technology, the extended temperature range and many I/O interfaces.
Key Features:
Matrox® Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox Imaging vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronization of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).
The HR series combines high-resolution image sensors with powerful machine vision interfaces. With state-of-the-art interfaces, the HR achieves data rates of up to 50 Gbit/s and resolutions of up to 122 MP.
The 10GigE version also offers a world first: thermoelectric cooling/heating and an innovative ventilation system ensure an absolutely stable sensor temperature and therefore excellent image quality.
The HR series, equipped with state-of-the-art 10GigE interface and resolutions up to 65 MP, sets new standards in terms of speed, reliability, and flexibility. Thanks to the brand new TEC technology in the -T versions, these HR cameras deliver an unbeatable stable image even at fluctuating temperatures.
The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.
The HR series with Camera Link Interface combines the advantages of this interface, the performance, with safe and easy handling.
HR series cameras combine high resolutions with high data rates. The elaborately designed solid housing ensures excellent temperature management, which guarantees stable operation even with large sensors. The HR series is ideally equipped with the latest machine vision interfaces (10GigE Vision, Camera Link, CoaXPress).
High-resolution sensors require special care when adjusting the homogeneity of the image. Shading correction for demanding optical tasks and user-defined Defect Pixel Correction ensure outstanding linearity, homogeneity and low noise.
The M58 lens thread was designed so that almost all lenses can be connected using appropriate adapters (F-mount and EF-mount) and can be optimally adapted to your imaging task.
The IO concept offers programmable IO logic, sequencer, timer, SafeTrigger and an integrated 4-channel LED flash controller. The controller integrated in the GenICam tree of the camera can be controlled via any GenICam application (e.g. HALCON, MERLIC, MatLab, VisionPro) or the SV-Capture from the SVS-Vistek SDK.
The high resolution enables an extremely wide field of view and makes the HR series ideal for applications such as optical metrology, quality control and monitoring of large areas. The HR is available with 10GigE, CoaXPress or Camera Link interface.
