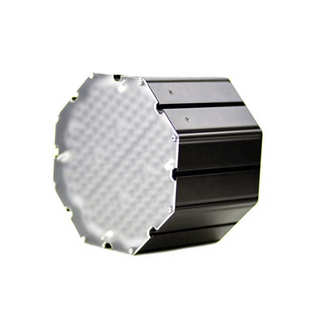

The XR256 Series High-Speed Strobe Light is a high speed, high power, pulse-initiated or pulse following strobe with a maximum output of 5000 strobes per second and a pulsed energy rating of 2000 W. The XR256 offers eight manually controlled settings between a 20 μs to 1000 μs strobe pulse duration in pulse-initiated mode and features a preprogrammed 2% duty cycle. The XR256 Series also features SafeStrobe™ technology which protects LEDs from overheating and premature degradation.
| Product Details | |
| Illumination Type | Bright Field, Direct Lighting |
| IP Rating | IP50 |
| Mode | OverDrive™ |
| Wavelength | WHI- White / 470 - Blue / 530 - Green / 625 - Red / 850 - IR |
| Lens Configuration | Narrow - 14° / Wide - 30° / Wide - 50° / Wide - 80° |
The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.
