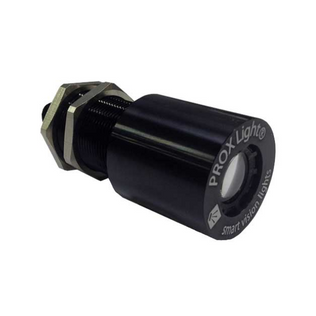

The SXA30 Prox Light Series spot lights featuring an adjustable-length lens, allowing users to select the correct spot size needed for the specific application without having to adjust the position of the whole light. Equipped with convenient mounting options, the SXA30 also offers a completely homogeneous light pattern at any working distance for a defined and even projected spot. The SXA30 Prox Light includes an NPN and PNP trigger signal input with a 1-10VDC analog signal line for added versatility. The SXA30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.
| Product Details | |
| Illumination Type | Bright Field, Projector |
| IP Rating | IP50 |
| Min Working Distance | 500 mm |
| Max Working Distance | 4000 mm |
| Mode | Continuous |
| Wavelength | WHI - White / 365 - UV / 395 - UV / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The LWE150 features a stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWE150 has an integrated Multi-Drive™ constant-current driver that operates continuous operation or in OverDrive™ strobe mode, depending on wiring configuration. NPN or PNP trigger signals can be used to control the pulse of the light.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
