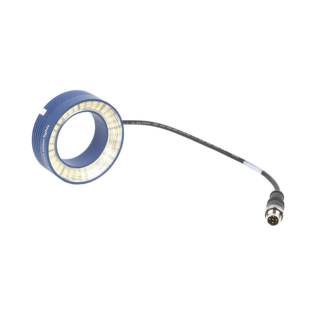

Offering an ideal working distance of 100-500 mm, the RMX75 Mini Ring Light Series is specifically engineered for radial and bright field applications. The light’s silicone lens provides an extra-tight seal and IP65 rating. The RMX75 features an integrated Multi-Drive™ constant current driver that operates in continuous operation or OverDrive™ strobe mode depending on the wiring method. The industry-standard 5-pin M12 connector makes for simple wiring.
| Product Details | |
| Illumination Type | Dark Field, Radial |
| IP Rating | IP65 |
| Min Working Distance | 100 mm |
| Max Working Distance | 500 mm |
| Mode | Multi-Drive™ |
| Wavelength | WHI - White / 365 - UV / 470 - Blue / 530 - Green / 625 - Red / 850 - IR |
The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application
