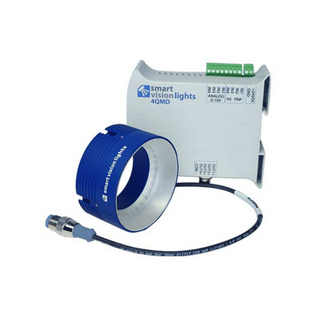

The compact and powerful RM75-4Z Mini Ring Light is a low-angle ring light that works best for dark field ring applications. The light can also be used for radial illumination. The RM75-4Z has four zones, making it a quadrant light that can have each individual zone controlled independently of one another. The 4ZMD-250 is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive™, allowing a range to be set from 10%-100% for continuous operation or OverDrive™ strobe mode. The RM75-4Z KIT includes a RM75-4Z mini ring light and a 4ZMD-250 external driver.
| Product Details | |
| Illumination Type | Dark Field, Radial |
| IP Rating | IP50 |
| Min Working Distance | 50 mm |
| Max Working Distance | 200 mm |
| Mode | Multi-Drive™ |
| Wavelength | WHI - White / 470 - Blue / 530 - Green / 625 - Red |
The modular design of the LX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LX300 together.
The LSR series is a SmartVisionLink™-enabled linear light that can produce over 340,000 lux and is offered in lengths up to 1200 mm. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, the LSR Series can have its intensity remotely adjusted. The LSR Series is easily mounted with the built-in T-slot rail system.
The ODLW300 Series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The integrated OverDrive™ driver allows for a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signal input can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six ODLW300 lights together.
The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.
