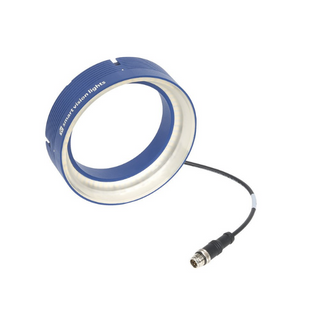

The compact and powerful RM140 Mini Ring Light is a low-angle ring light that works for radial and dark field ring applications. The RM140 series features a sealed, IP65-rated aluminum housing and includes Smart Vision Lights’ built-in Multi-Drive™ constant current driver, which allows the light to operate continuous operation or in OverDrive™ strobe mode. The industry-standard 5-pin M12 connector makes for simple wiring.
| Product Details | |
| Illumination Type | Dark Field, Radial |
| IP Rating | IP65 |
| Min Working Distance | 50 mm |
| Max Working Distance | 200 mm |
| Mode | Multi-Drive™ |
| Wavelength | WHI - White / 470 - Blue / 530 - Green / 625 - Red |
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application
The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
