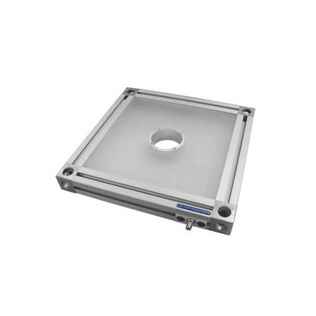

The RL300 Large Ring Light Series is designed to produce a homogeneous, uniform light pattern for larger applications and longer working distances. The RL300 runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The 5-pin M12 connector makes wiring to the light simple.
| Product Details | |
| Illumination Type | Radial |
| IP Rating | IP50 |
| Min Working Distance | 500 mm |
| Max Working Distance | 4000 mm |
| Mode | Continuous |
| Wavelength | WHI - White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
| Lens Configuration | Narrow - 14° / Wide - 30° |
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
