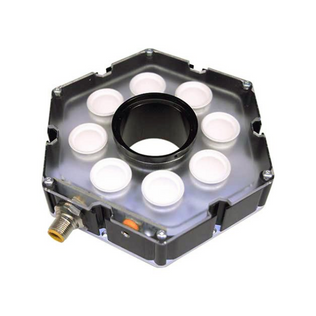

The RCC130 EZ Mount Ring Light contains special lenses to produce a narrow uniform/homogeneous light pattern. Its simple plug-and-play 5-pin M12 connector is easy to use. The RCC130 operates with either an NPN or a PNP signal and runs on an industry-standard 24VDC. The 10%-100% intensity control gives users full control over light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.
| Product Details | |
| Illumination Type | Radial |
| IP Rating | IP50 |
| Min Working Distance | 500 mm |
| Max Working Distance | 5000 mm |
| Mode | Continuous |
| Wavelength | WHI - White / 365 - UV / 395 - UV / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
