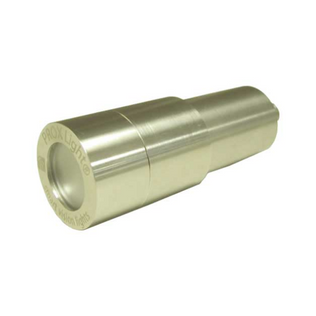

The ODSXW30 Prox Light Series of spot lights features a stainless-steel enclosure for applications in washdown environments. This light operates in OverDrive™ strobe mode. The ODSXW30 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the manual potentiometer.
| Product Details | |
| Illumination Type | Bright Field, Projector |
| IP Rating | IP68 |
| Min Working Distance | 500 mm |
| Max Working Distance | 4000 mm |
| Mode | OverDrive™ |
| Wavelength | WHI- White / 365 - UV / 395 - UV / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
| Lens Configuration | Line - 10° width, 50° fan angle / Narrow - 14° / Wide - 30° |
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
