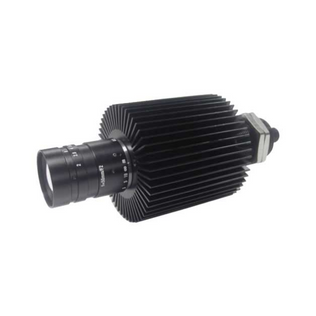

The ODSXP30 Series Projector Light offers a homogeneous light pattern. This light is designed for Overdrive™ strobe mode only and offers NPN or PNP trigger signal input. The 9 mm2 die emits five times the intensity of a constant current SXP30. The housing is constructed of finned 6061-T6 aluminum and designed to dissipate as much heat as possible, therefore allowing the LED to be run at a much higher current than the standard 1 mm2 die LEDs. Multiple interchangeable pattern styles are available along with optional custom patterns.
| Product Details | |
| Illumination Type | Bright Field, Projector |
| Mode | OverDrive™ |
| IP Rating | IP50 / IP65 with 50mm lens cover / IP65 with 70mm lens cover |
| Wavelength | WHI - White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
