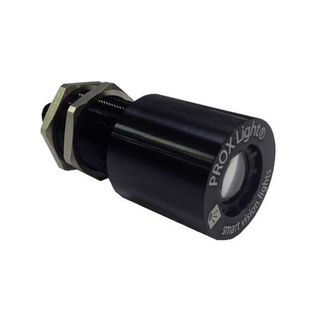

The ODSXA30 Prox Light Series spot lights featuring an adjustable-length lens, allowing users to select the correct spot size needed for the specific application without having to adjust the position of the whole light. This light operates in OverDrive™ strobe mode. Equipped with convenient mounting options, the ODSXA30 also offers a completely homogeneous light pattern at any working distance for a defined and even projected spot. The ODSXA30 Prox Light includes an NPN and PNP trigger signal input with a 1-10VDC analog signal line for added versatility. The ODSXA30 Prox Light has multiple mounting options allowing for ease of install and comes with two mounting nuts.
| Product Details | |
| Illumination Type | Bright Field, Projector |
| IP Rating | IP50 |
| Min Working Distance | 500 mm |
| Max Working Distance | 4000 mm |
| Mode | OverDrive™ |
| Wavelength | WHI - White / 365 - UV / 395 - UV / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The LW300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light and runs in continuous operation mode. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six LW300 lights together.
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
