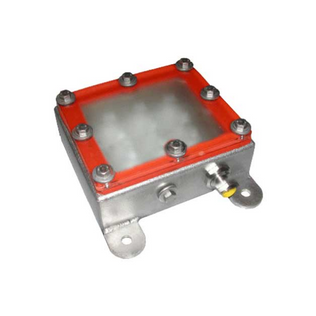

The ODSW75 Brick Light Series of spot lights features a 316 stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.
| Product Details | |
| Illumination Type | Bright Field, Dark Field, Direct Lighting |
| IP Rating | IP68 |
| Min Working Distance | 300 mm |
| Max Working Distance | 4000 mm |
| Mode | OverDrive™ |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
| Lens Configuration | Line - 10° width, 50° fan angle / Narrow - 104° / Wide - 30° |
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.
The LZEW300 is a SmartVisionLinkTM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
