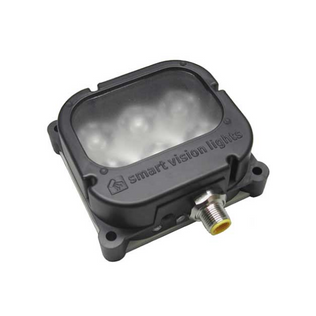

The ODSB75 Brick Light features a smart driver with OverDrive™ strobe mode. The light’s diffused lens makes it a viable option for silhouetting objects. The manual potentiometer control allows the intensity to be adjusted from 10%-100%. A user can also adjust the intensity using the 1-10VDC remote analog signal. The ODSB75 has the ability to produce up to 5000 strobes per second at a maximum strobe length of 125 mS when at a 10% maximum duty cycle. Heat is dissipated through the aluminum backplate, allowing the ODSB75 to be run at a high current and great intensity.
| Product Details | |
| Illumination Type | Backlight |
| IP Rating | IP50 |
| Mode | OverDrive™ |
| Wavelength | WHI - White / 470 - Blue / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
