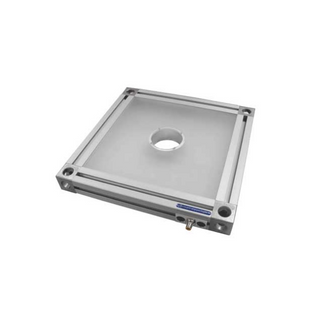

The ODRL300 Large Ring Light Series is designed to produce a homogeneous, uniform light pattern for larger applications and longer working distances. This light operates in OverDrive™ strobe mode. The ODRL300 runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The 5-pin M12 connector makes wiring to the light simple.
| Product Details | |
| Illumination Type | Radial |
| IP Rating | IP50 |
| Min Working Distance | 500 mm |
| Max Working Distance | 4000 mm |
| Mode | OverDrive™ |
| Wavelength | WHI - White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
| Lens Configuration | Narrow - 14° / Wide - 30° |
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
