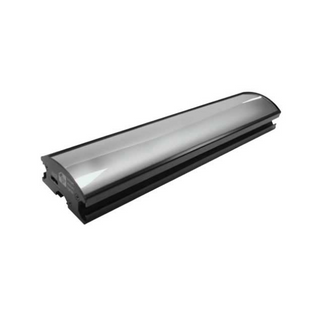

Part of the Direct Connect series linear lights, which offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. This light operates in OverDrive™ strobe mode. The ODLHF300 series was designed as a direct LED replacement for standard fluorescent lighting. The ODLHF300 array uses 30 high-intensity LEDs and features a diffuse lens cover designed to disperse the light in the same fashion as a fluorescent light of equivalent length. Use NPN or PNP trigger signal to control the light’s pulse.
| Product Details | |
| Illumination Type | Bright Field, Dark Field, Direct Lighting |
| IP Rating | IP50 |
| Min Working Distance | 150 mm |
| Max Working Distance | 2000 mm |
| Mode | OverDrive™ |
| Wavelength | WHI- White / 470 - Blue / 625 - Red / 850 - IR |
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
