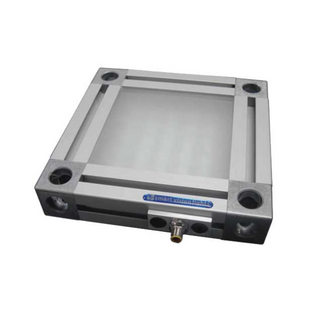

The ODAL Area Light Series of spot lights is designed for OverDrive™ strobing and produces maximum light output. NPN or PNP trigger signals input can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line. Proper heat dissipation is achieved using the side extrusion and backplate. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The AL Area Light has a built-in driver. No external driver is required. Standard sizes are: 150×150, 300×150, 300×300 – additional sizes are available upon request.
| Product Details | |
| Illumination Type | Bright Field |
| IP Rating | IP50 |
| Mode | Continuous |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
| Size | 150 mm ×150 mm / 300 mm ×150 mm / 300 mm × 300 mm |
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
