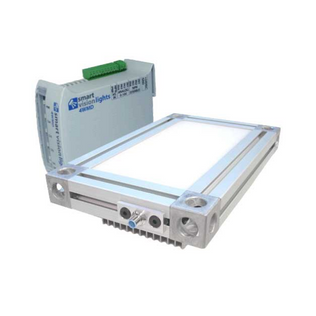

The MOBL (RGBW) Backlight Series is designed for maximum output and includes four wavelengths. Each wavelength is independent and can be tuned individually, allowing for the light to output just about any color imaginable. Proper heat dissipation is achieved using the side extrusion. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The MOBL (RGBW) Backlight Kit includes an MOBL RGBW backlight, external driver and reverse-key jumper cable. This product comes in the following sizes: 150 mm x 150 mm, 300 mm x 150 mm, and 300 mm x 300 mm.
| Product Details | |
| Illumination Type | Backlight |
| IP Rating | IP50 |
| Mode | Multi-Drive™ |
| Wavelength | RGBW |
| Size | 150 mm x 150 mm / 300 mm x 150 mm / 300 mm x 300 mm |
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
