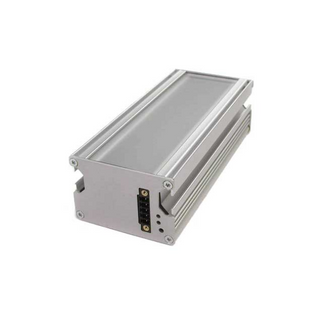

The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
| Product Details | |
| Illumination Type | Bright Field, Dark Field, Direct Lighting |
| IP Rating | IP50 |
| Min Working Distance | 300 mm |
| Max Working Distance | 4000 mm |
| Mode | Continuous |
| Wavelength | WHI- White / 365 - UV / 395 - UV / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
| Lens Configuration | Line - 10° width, 50° fan angle / Narrow - 14° / Wide - 30° |
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
Delivering up to 100,000 lux, the LXE300 includes our advanced Multi-Drive™ driver, allowing users to operate the linear light in continuous operation or OverDrive™ strobe (high-pulse operation) mode. Users can connect up to six LXE300 lights to create ultra-long linear lights at a fraction of the cost of traditional monolithic solutions without any loss in uniformity.
The LXE300 is available in three different connector options:
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
