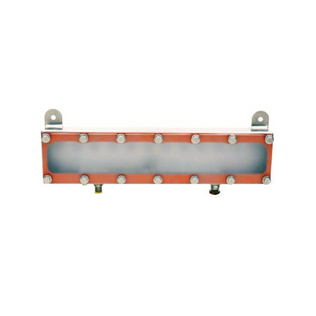

Smart Vision Lights LWB300 Linear Backlight Connect-a-Light Washdown

The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.

Product Advantages

Built-In Driver: This light features a built-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: 10-year warranty on most of our products.

Zebra Technologies & Matrox Imaging Datasheet

Add to Proposal

Product Details
Illumination Type	Backlight
IP Rating	IP65
Min Working Distance	300 mm
Max Working Distance	4000 mm
Mode	Continuous
Wavelength	WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR

FDA compliant. IP68 rated. Affordable.

We’re revolutionizing washdown lights with the new LZEW300. The aluminum housing with non-stick coating is FDA-compliant and costs significantly less than stainless steel. Prefer stainless? The LZEW300 is also available in 316 stainless steel.

All the features of the LZE300, now in a washdown

The LZEW300 is a SmartVisionLink^TM-enabled washdown linear light. With the addition of the BTM-1000 Bluetooth module, the LZEW300 can be wirelessly adjusted for intensity levels. Connect the LZEW300 in a series of up to six lights through daisy-chain, to create a total of 18 independently controllable lighting zones.

Product Highlights

Connect up to six LZEW300 linear lights
SmartVisionLink^TM-enabled provides easy intensity adjustment in both continuous and OverDrive^TM modes
NanoDrive^TM provides the ability to turn the light fully on in less than 500 ns
FDA compliant non-stick coated aluminum housing or 316 stainless steel housing

Smart Vision Lights ODL300 OverDrive™ Linear Connect-a-Light

The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive^™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.

Product Advantages

Built-In Driver: This light features a built-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
SafeStrobe^™ Technology: This unique technology applies safe working parameters to ensure the LEDs are not damaged by driving them beyond their limits.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: 10-year warranty on most of our products.

Smart Vision Lights LTF Linear Light with Tunable Field of View

The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLink^TM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLink^TM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.

LTF Series Highlights

Three independently tunable beam angle channels
Ability to switch and mix channels to adjust working distance and illumination angle*
SmartVisionLink^TM-enabled to allow for easy intensity adjustment in both continuous and OverDrive^TM strobe modes.
Ability to control intensity for the entire light or for each of the three LED channels if using BTM-1000 Bluetooth Module^†
Multi-Drive^TM allows for continuous or OverDrive^TM strobe operation

Product Advantages

Built-In Driver: This light features a build-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: 10-year warranty on most of our products. View warranty policy for more details

Smart Vision Lights LXE300 Direct Connect Linear Light

Delivering up to 100,000 lux, the LXE300 includes our advanced Multi-Drive^™ driver, allowing users to operate the linear light in continuous operation or OverDrive^™ strobe (high-pulse operation) mode. Users can connect up to six LXE300 lights to create ultra-long linear lights at a fraction of the cost of traditional monolithic solutions without any loss in uniformity.

The LXE300 is available in three different connector options:

Direct Connect – This is the default option which allows connecting lights together with no additional cables. Lights are directly connected together, with no space between the lights. Up to six LXE300 lights can be directly connected together.
Daisy-Chain – The Daisy-Chain option allows for a locking 5PM-12 Jumper Cable to be used when connecting LXE300 lights together. Lights are able to be spaced apart from each other. Up to six LXE300 lights can be Daisy-Chained together.
Plug – If multiple units are not going to be used, a plug termination can be ordered.

Product Advantages

Built-In Driver: This light features a built-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
Multi-Drive^™ Allows the light to work in continuous operation or OverDrive^™ strobe mode.
SafeStrobe^™ Technology: This unique technology applies safe working parameters to ensure the LEDs are not damaged by driving them beyond their limits.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: 10-year warranty on most of our products.
