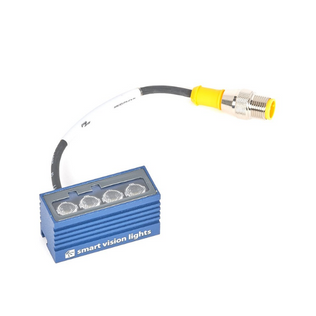

The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.
| Product Details | |
| Illumination Type | Bright Field, Dark Field |
| IP Rating | IP65 |
| Min Working Distance | 50 mm |
| Max Working Distance | 1000 mm |
| Mode | Multi-Drive™ |
| Wavelength | WHI - White / 365 - UV / 470 - Blue / 530 - Green / 625 - Red / 850 - IR |
| Lens Configuration | Line - 10° width, 50° fan angle / Narrow - 16° / Narrow - 25° / Standard - 50° / Wide - 80° |
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The LSR series is a SmartVisionLink™-enabled linear light that can produce over 340,000 lux and is offered in lengths up to 1200 mm. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, the LSR Series can have its intensity remotely adjusted. The LSR Series is easily mounted with the built-in T-slot rail system.
The LCZE300 is a SmartVisionLink™-enabled linear light. With the addition of the BTM-1000 Bluetooth module, the LCZE300 can be wirelessly adjusted for intensity levels. The LCZE300 can be connected in a series of up to six lights, either through direct-connect or daisy-chain, to create a total of 6 independently controllable lighting zones.
