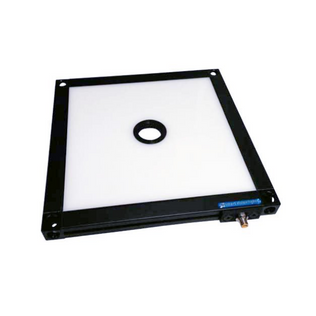

In the LLPX-H Light Panel Series, an optically clear internal light dispersion grid and a matte-white-finished backing plate allow more light to be reflected up and out through the diffusion acrylic. The LLPX-H features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on wiring method. The industry-standard 5-pin M12 connector makes for simple wiring. The 1-10VDC analog signal line gives the user total control over intensity in continuous operation. Removing the signal puts the light into OverDrive™ strobe mode. Custom placement, sizing, and number of holes available upon request.
| Product Details | |
| Illumination Type | Dome "Light Tent", Radial |
| IP Rating | IP50 |
| Mode | Multi-Drive™ |
| Wavelength | WHI- White / 470 - Blue / 530 - Green / 625 - Red / 850 - IR |
| Size | 306 mm × 306 mm / 459 mm ×459 mm |
| Patterned Area Lighting | Yes / No |
The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
