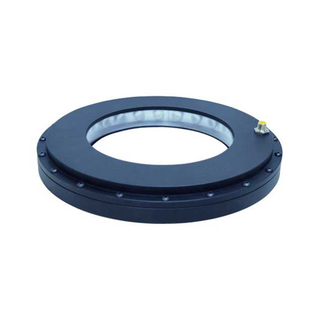

The DFLW-200 Dark Field Washdown Ring Light is IP65 rated and comes in an anodized black aluminum housing. The built-in Multi-Drive™ driver allows the light to work in continuous operation or OverDrive™ strobe mode, depending on the wiring configuration. The industry-standard 5-pin M12 connector makes for simple wiring. The 1-10VDC analog signal line gives the user total control over intensity in continuous operation mode. Grounding the analog signal line put the light into OverDrive™ strobe mode.
| Product Details | |
| Illumination Type | Dark Field |
| IP Rating | IP65 |
| Min Working Distance | 20 mm |
| Max Working Distance | 75 mm |
| Mode | Multi-Drive™ |
| Wavelength | WHI- White / 470 - Blue / 530 - Green / 625 - Red / 850 - IR |
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
