Home / 03. INDUSTRIAL LIGHTING / Smart Vision Lights DFLW-200-4Z (KIT) Dark Field Washdown Ring Light with Zones

Smart Vision Lights DFLW-200-4Z (KIT) Dark Field Washdown Ring Light with Zones

Name: Smart Vision Lights DFLW-200-4Z (KIT) Dark Field Washdown Ring Light with Zones
SKU: 1331
Availability: InStock

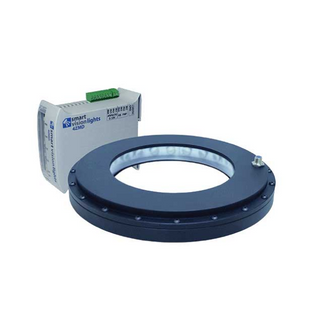

The DFLW-200-4Z Dark Field Washdown Ring Light is IP68 rated and comes in an anodized black aluminum housing. The DFLW-200-4Z has four zones, making it a quadrant light in which each individual zone can be controlled independently of each other. The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive^™, allowing a range to be set from 10%-100% for continuous operation or OverDrive^™ strobe mode. The DFLW-200-4Z (KIT) includes a DFLW-200-4Z, a 4ZMD-750 external driver and a 5PM12-J2000-KR jumper cable (2000 mm in length).

Smart Vision Lights Datasheet

Add to Proposal

This product is already in your proposal request list.

Browse List

Product Details
Illumination Type	Dark Field
IP Rating	IP50
Min Working Distance	20 mm
Max Working Distance	75 mm
Mode	Multi-Drive™
Wavelength	WHI- White / 470 - Blue / 530 - Green / 625 - Red

Product Advantages

Built-In Driver: This light features a built-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
Multi-Drive^™ Allows the light to work in continuous operation or OverDrive^™ strobe mode.
SafeStrobe^™ Technology: This unique technology applies safe working parameters to ensure the LEDs are not damaged by driving them beyond their limits.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: Learn more about the best warranty – up to 10 years – available today.

Smart Vision Lights LTF Linear Light with Tunable Field of View

The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLink^TM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLink^TM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.

LTF Series Highlights

Three independently tunable beam angle channels
Ability to switch and mix channels to adjust working distance and illumination angle*
SmartVisionLink^TM-enabled to allow for easy intensity adjustment in both continuous and OverDrive^TM strobe modes.
Ability to control intensity for the entire light or for each of the three LED channels if using BTM-1000 Bluetooth Module^†
Multi-Drive^TM allows for continuous or OverDrive^TM strobe operation

Product Advantages

Built-In Driver: This light features a build-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: 10-year warranty on most of our products. View warranty policy for more details

Smart Vision Lights ODL300 OverDrive™ Linear Connect-a-Light

The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive^™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.

Product Advantages

Built-In Driver: This light features a built-in constant current driver, no external driver is needed.
IEC Safety: This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory.
SafeStrobe^™ Technology: This unique technology applies safe working parameters to ensure the LEDs are not damaged by driving them beyond their limits.
Best Lead Time: Most of our standard products ship within three business days.
Best Warranty: 10-year warranty on most of our products.

Smart Vision Lights ODLX300 OverDrive™ Direct Connect Bar/Linear Light

The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive^™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
