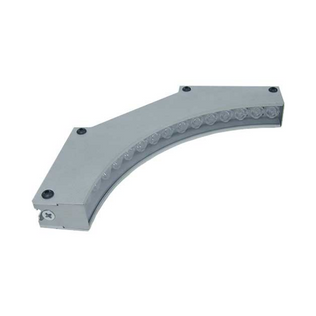

The DFL-460 Dark Field Linear Light provides a round 90° light illumination, allowing the light to “wrap” around a curved surface. Daisy-chain up to 4 lights together to cover an area up to 360°. Use NPN or PNP trigger signal to control the light’s pulse. Control intensity via a 110V analog signal line.
| Product Details | |
| Illumination Type | Dark Field |
| IP Rating | IP50 |
| Min Working Distance | 50 mm |
| Max Working Distance | 500 mm |
| Mode | Continuous |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
| Lens Configuration | Line - 10° width, 50° fan angle / Narrow - 10° / Wide - 25° |
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
The ODLW300 Series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The integrated OverDrive™ driver allows for a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signal input can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or the onboard manual potentiometer. Daisy-chain up to six ODLW300 lights together.
The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
LTF Series Highlights
The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.
