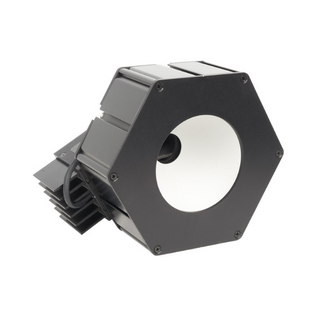

The DADL75 Series was designed as a multi-color inspection light with built-in individual on-axis and off-axis intensity control. Its exceptional uniformity and an intense output design make the DADL75 Series a perfect lighting solution for applications that require variable intensities with multiple color options or any product inspection process involving a highly reflective finish. Easily tune colors using the DADL Controller (sold separately).
| Product Details | |
| Illumination Type | Dome "Light Tent" |
| IP Rating | IP50 |
| Min Working Distance | 25 mm |
| Max Working Distance | 100 mm |
| Mode | Multi-Drive™ |
| Wavelength | RGB |
The L300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated constant current driver built into the light. Connect-a-Light Series of Linear Lights uses 24VDC and can operate in continuous mode. NPN or PNP strobe triggers can be used to control the on/off input of the light. Control intensity via a 1-10V analog signal line or manual potentiometer. Daisy-chain up to six L300 lights together.
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
