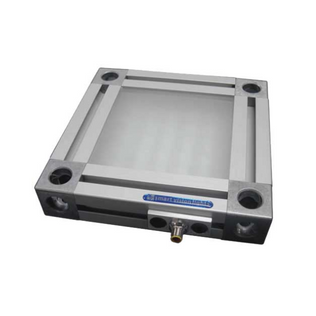

The AL Area Light Series of spot lights is designed for maximizing light output. The AL series works in continuous operation mode or can operate with either an NPN or PNP trigger signal when using on/off input mode. The AL Area Light runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion and back plate. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The AL Area Light has a built-in driver. No external driver is required.
| Product Details | |
| Illumination Type | Bright Field |
| IP Rating | IP50 |
| Mode | Continuous |
| Wavelength | WHI- White / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR |
| Size | 150 mm ×150 mm / 300 mm ×150 mm / 300 mm × 300 mm |
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
The modular design of the ODLX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen ODLX150 together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.
