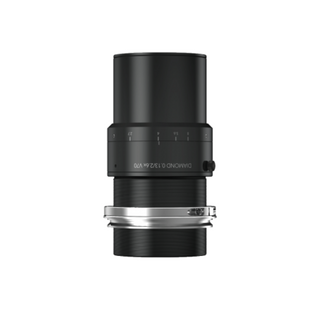

Schneider Diamond

Diamond’s Key Features:

  • Extremely high resolution down to 3.5µ pixel size
  • Image circle: 62.5 mm – 82 mm
  • Optimized for specific magnifications
  • 5 magnifications available: 2.6x – 5.2x
  • Versions with beampslitter available
  • Best azimuth marking
  • V-Mount for easy installation

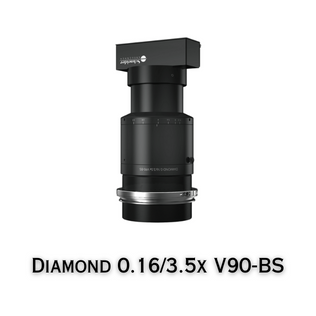

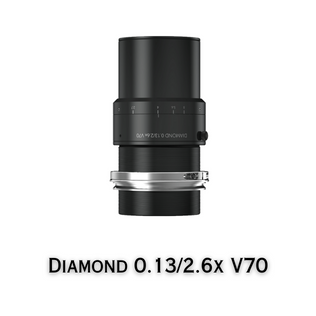

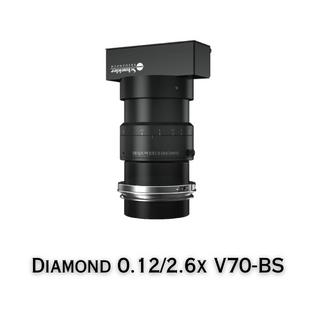

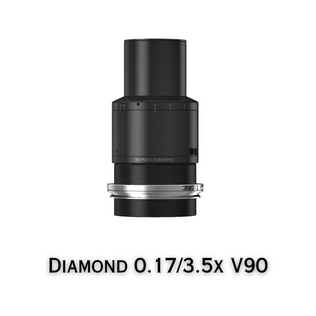

0.13/2.6x V70 0.12/2.6x V70-BS 0.17/3.5x V90 0.16/3.5x V90-BS

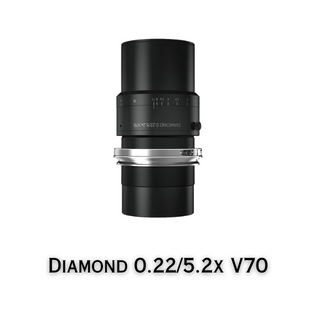

0.22/5.2x V70

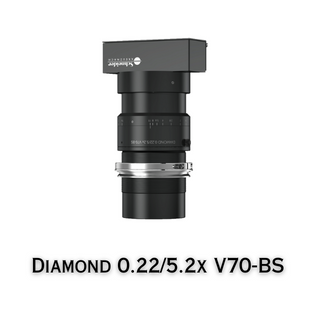

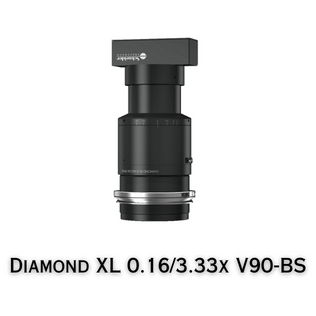

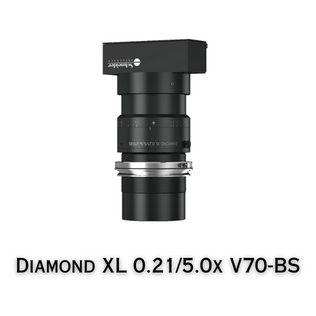

0.22/5.2x V70-BS XL 0.16/3.33x V90-BS XL 0.21/5.0x V70-BS
NA 0.13 0.12 0.17 0.16 0.22 0.16 0.16 0.21
Magnification 2.6x 2.6x 3.5x 3.5x 5.2x 5.2x 3.33x 5.0x
Mount V70 V70 V90 V90 V70 V70 V90 V70
Sensor Size 62.5mm 62.5mm 62.5mm 62.5mm 62.5mm 62.5mm 82mm 82mm
Type Standard With Beamsplitter Standard With Beamsplitter Standard With Beamsplitter Standard With Beamsplitter
Size D x L (mm x mm)
75 x 132.4
95 x 157.5
95 x 174
95 x 204.5
75 x 142
95 x 168.1
95 x 208.2
95 x 168.1
Weight (g) 1140 1350
2008
2260
Filter Thread
M40.5 x 0.5
-
M40.5 x 0.5
-
M58 x 0.75
M58 x 0.75
-
M58 x 0.75
Code 1078039 1076949 1076963 1079718 1079320 1081873 1098892 1099014
