Application areas: Inspection of reflective object surfaces, inspection of surface unevenness and defects, appearance inspection of food and pharmaceuticals, inspection of cigarette boxes and packaging printing, etc.
Advantages

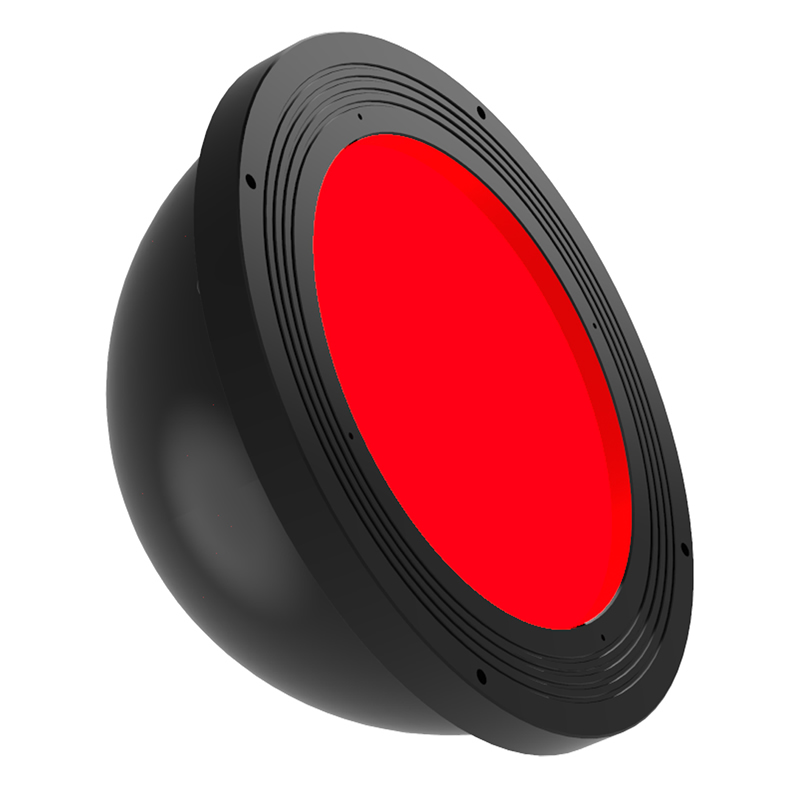

| model | Optics | Rated power (W) | Dimensions I×E×D (mm) | Weight (g) | |||||
| color | LED Row | Light emission diameter (mm) | Inner diameter (mm) | Voltage (V) | red | White, blue, green | |||
| RDLL-44-1 | Red, white, blue, green | 1 | 26 | 12 | twenty four | 1.5 | 2 | 44x35 | 78 |
| RDLL-70-1 | Red, white, blue, green | 1 | 45 | 12 | twenty four | 2.3 | 3 | 70x32 | 83 |
| RDLL-100-1 | Red, white, blue, green | 1 | 66 | 25 | twenty four | 8 | 12 | 116x57 | 235 |
| RDLL-120-1 | Red, white, blue, green | 1 | 84 | 35 | twenty four | 12 | 15 | 134x62.5 | 295 |
| RDLL-150-1 | Red, white, blue, green | 1 | 116 | 35 | twenty four | 18 | 2 | 166x82 | 420 |
| RDLL-180-1 | Red, white, blue, green | 1 | 138 | 30 | twenty four | twenty two | 28 | 198x90 | 535 |
| RDLL-250-1 | Red, white, blue, green | 1 | 216 | 50 | twenty four | 30 | 38 | 260x125.5 | 1070 |
The LWE150 features a stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWE150 has an integrated Multi-Drive™ constant-current driver that operates continuous operation or in OverDrive™ strobe mode, depending on wiring configuration. NPN or PNP trigger signals can be used to control the pulse of the light.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The modular design of the LXB150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB150 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LXB150 together.
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
