Features
-Outdoor RGB-D and indoor applications
-Frame rates up to 30 FPS
-Single/multi camera use capabilities
-Simple setup
-GigE interface
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption
Applications:
3D people counting for public settings, including supermarkets, elevators, and transport

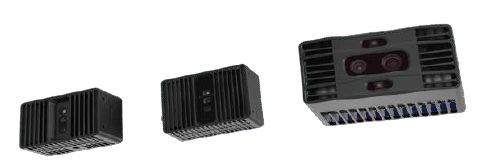

| Model | Max Frame Rate | Working Distance | FOV (H/V) | Z-axis Accuracy | XY-axis Accuracy | Depth Resolution | RGB Resolution | Data Interface | Power | IP Grade | Size | Weight |
| TL460-S1-E1 | 30 fps | 0.3-9.5m | 62°/49° | ±4+0.25% of depth | / | 640*480 | 1920*1080 | M12 A-Code | 13.6W(AVG) 29.68W(MAX) | IP67 | 140mm*94mm*70 mm | 1.1kg |
| TM460-E2 | 30 fps | 0.1m-4.1m | 65°/50° | ±6+ 1% of depth （depth＜2500） | / | 640*480 | 1920*1080 | RJ45 | 1.5~3.2W | IP40 | 87.4mm*51.5mm*38mm | 257g |
| TM461-E2 | 30 fps | 0.1m-10m | 65°/50° | ±5+1% of depth [400, 2200]； | / | 640*480 | 1920*1080 | RJ45 | 2.0~3.2W | IP50 | 96.4 mm*67.5 mm*35.8 mm | 315g |
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Log S can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 500–1000 mm
Near FOV: 360 × 250 @ 0.5 m
Far FOV: 710 × 490 @ 1.0 m
Resolution: 1280 x 1024
Megapixels: 1.3 MP
Z Repeatability: 0.1 mm @ 1 m
VDI/VDE Accuracy: 0.2 mm @ 1 m
Typical Capture Time: 0.3–0.5 s
Baseline: About 150 mm
Dimensions: About 270 mm × 72 mm × 130 mm
Weight: About 2.2 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 800–2000 mm
Near FOV: 520 × 390 @ 0.8 m
Far FOV: 1410 × 960 @ 2.0 m
Resolution: 1280 x 1024
Megapixels: 1.3 MP
Z Repeatability: 0.3 mm @ 2 m
VDI/VDE Accuracy: 0.3 mm @ 2 m
Typical Capture Time: 0.3–0.5 s
Baseline: About 280 mm
Dimensions: About 387 mm × 72 mm × 130 mm
Weight: About 2.4 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Pro M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 1000–2000 mm
Near FOV: 800 × 450 @ 1.0 m
Far FOV: 1500 × 890 @ 2.0 m
Resolution: 1920 × 1200
Megapixels: 2.3 MP
Z Repeatability: 0.2 mm @ 2 m
VDI/VDE Accuracy: 0.2 mm @ 2 m
Typical Capture Time: 0.3-0.6 s
Baseline: About 270 mm
Dimensions: About 353 mm × 57 mm × 100 mm
Weight: About 1.9 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
JMGV_VD100 active structured light binocular camera is a stereo vision camera deeply customized and developed according to the needs of robots and industrial stereo vision application scenarios. The industry-leading 940nm infrared structured light speckle projector is used to supplement light and texture, and OV9282 global shutter sensor has the highest tolerance in the industry for motion speed and environment. It can be widely used in industrial sorting, AGV and service robot obstacle avoidance, high precision visual positioning and other scenarios.
Product Features:
• 640×400@30fps, high resolution and frame rate, widely used in various scenarios.
• Industry leading wide FOV92.5°x80.5°x55.2° (DxHxV) for wider sensing range.
• 940nm infrared structured light projector has extremely high environmental tolerance and
can be used indoor and outdoor, dark and light environments. Compared with structured
light and TOF solutions, the material of detected object has a wider applicable range.
• Adopts a global shutter sensor, which can be adapted to high speed and dark light
environments.
• Dedicated ASIC binocular depth calculation chip, which consumes low power and does not
occupy the computing power of the host computer;
• Type C USB 2.0 interface with locking function, high reliability and good applicability.
• Ultra-low noise, very suitable for obstacle avoidance applications
• Mature Linux and ROS 2 development SDK;
