Features
-Enhanced accuracy at greater depths
-Single/multi camera use capabilities
-Simple setup
-GigE interface (USB optional)
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption
Applications:
-FM811-IX-E1: industrial measurement and commercial applications of different sizes objects, bin picking and unstack industrial applications

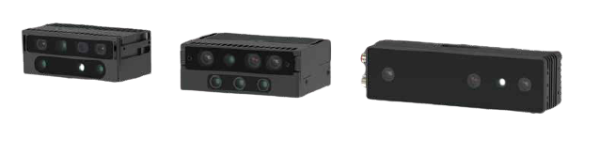

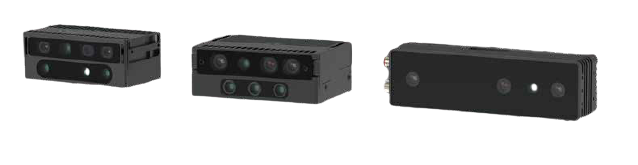

Model | Max Frame Rate | Working Distance | FOV (H/V) | Z-axis Accuracy | XY-axis Accuracy | Depth Resolution | RGB Resolution | Data Interface | Power | IP Grade | Size | Weight | ||||
FM811-IX-E1 | 5 fps | 0.7m-3.5m | 60°/48° | 4.85mm@2000mm | 8.23mm@2000mm | 1280*960 | 1280*960 | M12 X-Code | 2.9W ~ 5.2W | IP65 | 140mm*51.4mm*96mm | 860g | ||||
FM811-IX-E2 | 5 fps | 0.7m-3.5m | 60°/48° | 4.85mm@2000mm | 8.23mm@2000mm | 1280*960 | 1280*960 | RJ45 | 2.9W ~ 5.2W | IP43 | 124mm*49.3mm*86.8mm | 615g | ||||
FM813-IX-E1 | 5 fps | 0.7m-5m | 62°/51° |
|
| 1280*960 | 2592*1944 | M12 A-Code | 5.3W ~ 7.7W | IP65 | 204.2mm*58mm*53mm | 990g |
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 500–1500 mm
Near FOV: 480 × 360 @ 0.5 m
Far FOV: 1500 × 1200 @ 1.5 m
Resolution: Depth Map:2048 × 1536, RGB:4000 x 3000 OR 2000 x 1500
Megapixels: 3.0 MP
Z Repeatability: 0.2 mm @ 1.5 m
VDI/VDE Accuracy: 1.0 mm @ 1.5 m
Typical Capture Time: 0.5–0.9 s
Baseline: About 140 mm
Dimensions: About 222 mm × 77 mm × 126 mm
Weight: About 1.8 kg
Operating Temperature: -10–45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Red laser (638 nm, Class 2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 1200–3000 mm
Near FOV: 1200 × 1000 @ 1.2 m
Far FOV: 3000 × 2400 @ 3.0 m
Resolution: Depth Map:2048 × 1536, RGB:4000 x 3000 OR 2000 x 1500
Megapixels: 3.0 MP
Z Repeatability: 0.5 mm @ 3 m
VDI/VDE Accuracy: 1.0 mm @ 3 m
Typical Capture Time: 0.5–0.9 s
Baseline: About 380 mm
Dimensions: About 459 mm × 77 mm × 86 mm
Weight: About 2.9 kg
Operating Temperature: -10–45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,1.5 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Red laser (638 nm, Class 2)
IP Rating: IP65
Cooling: Passive
JMGV_VD100 active structured light binocular camera is a stereo vision camera deeply customized and developed according to the needs of robots and industrial stereo vision application scenarios. The industry-leading 940nm infrared structured light speckle projector is used to supplement light and texture, and OV9282 global shutter sensor has the highest tolerance in the industry for motion speed and environment. It can be widely used in industrial sorting, AGV and service robot obstacle avoidance, high precision visual positioning and other scenarios.
Product Features:
• 640×400@30fps, high resolution and frame rate, widely used in various scenarios.
• Industry leading wide FOV92.5°x80.5°x55.2° (DxHxV) for wider sensing range.
• 940nm infrared structured light projector has extremely high environmental tolerance and
can be used indoor and outdoor, dark and light environments. Compared with structured
light and TOF solutions, the material of detected object has a wider applicable range.
• Adopts a global shutter sensor, which can be adapted to high speed and dark light
environments.
• Dedicated ASIC binocular depth calculation chip, which consumes low power and does not
occupy the computing power of the host computer;
• Type C USB 2.0 interface with locking function, high reliability and good applicability.
• Ultra-low noise, very suitable for obstacle avoidance applications
• Mature Linux and ROS 2 development SDK;
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 1200–3500 mm
Near FOV: 970 × 1160 @ 1.2 m
Far FOV: 2830 × 3320 @ 3.5 m
Resolution: 2048 × 1536
Megapixels: 3 MP
Z Repeatability: 1.0 mm @ 3 m
VDI/VDE Accuracy: 3.0 mm @ 3m
Typical Capture Time: 0.7–1.1 s
Baseline: About 400 mm
Dimensions: About 481 mm × 98 mm × 145 mm
Weight: About 4.3 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
