Optotune has co-designed with its optics partners a series of lens modules developed around its electrically tunable lenses. This results in an optically optimized and integrated solution that simplifies the design of the vision system.

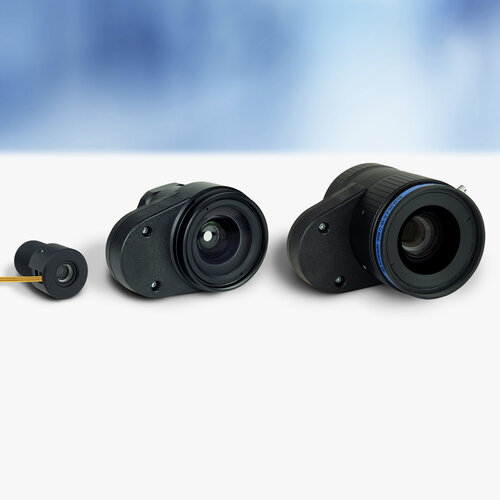

The ELM-F series consists of fixed focal length lenses specifically designed to accommodate Optotune’s electrically tunable lenses in the optical path. The series, which is in continuous expansion, currently supports S-mount and C-mount cameras up to a sensor size of 1.1” with focal lengths ranging from 5 to 300mm.
As a result of the optimization process, customers can benefit from:
Applications:
| Product | Focal Length (mm) | F # | Pixel Size (recommended) | Camera Sensor Format | Mount | Connector Type |
| ELM-5-5.0-7-S | 5 mm | 5.0 | 2.2um | 1/2.5" | S-mount | FPC |
| ELM-12-5.6-9-S | 12 mm | 5.6 | 2.4 um | 1/1.7" | S-mount | FPC |
| ELM-16-5.6-9-S | 16 mm | 5.6 | 2.4 um | 1/1.7" | S-mount | FPC |
| ELM-25-5.6-9-S | 25 mm | 5.6 | 2.4 um | 1/1.7" | S-mount | FPC |
| ELM-12-2.8-18-C | 12 mm | 2.8 | 2.4 um | 1.1" | C-mount | Hirose |
| ELM-25-2.8-18-C | 25 mm | 2.8 | 2.4 um | 1.1" | C-mount | Hirose |
| ELM-35-5.6-14-C | 35 mm | 5.6 | 3.0 um | 2/3" | C-mount | Hirose |
| ELM-35-5.6-16-C | 35 mm | 5.6 | 3.0 um | 1" | C-mount | Hirose |
| ELM-60-4.0-24-C | 60 mm | 4.0 | 5.0 um | 4/3" | C-mount | Hirose |
| ELM-75-4.0-8-C-NIR | 75 mm | 4.0 | 3.45um | 1/2" | C-mount | FPC |
| ELM-80-4.0-24-C | 80 mm | 4.0 | 5.0 um | 4/3" | C-mount | Hirose |
| ELM-150-7.5-11-C | 150 mm | 7.5 | 5.0 um | 2/3" | C-mount | Hirose |
| ELM-300-10.0-11-C | 300 mm | 10.0 | 8.0 um | 2/3" | C-mount | Hirose |
The compact EL-3-10 lens is designed for OEM integration into optical systems for various applications. The working principle is based on the well-established shape-changing lens technology. The curvature of the lens is adjusted by applying an electrical current. Thereby, the focal length is tuned to a desired value within very few milliseconds. The lens architecture is “push pull” which means that the lens curvature is deflected from concave to convex. With actuators based on proven voice-coil technology, the EL-3-10 focus tunable lens is extremely reliable and robust, well suited even for applications in harsh environments over large temperature ranges.
Key advantages:
Applications:
| Dimensions (Ø x thickness) | 10 x 4 mm |
| Clear aperture | 3mm |
| Range of optical power (focal length) | -13 dpt (-77mm) to +13 dpt (+77mm) |
| Transmission wavelength (>94%) | 420 to 1600nm (VIS and NIR coating options) |
| Response time (10/90% step), settling time | 1, 4 ms |
| Wavefront error | <0.15/<0.15λ* |
| Operating temperature | -20 to 65°C |
* Wavefront error provided in λ RMS @525nm with optical axis vertical / horizontal
Design faster and more compact optical systems without complex mechanics using the electrically focus tunable lens EL-10-30-TC. By applying a current, the focal length of the 10 mm aperture lens can be tuned to a specific value in milliseconds. Thanks to an integrated temperature sensor and characterization data, the lens can be driven to precise focal powers using Optotune’s lens driver 4. The EL-10-30-TC is available with two broadband coating options, VIS for 400-700nm and NIR for 700-1100nm.
Applications:
Building on customer feedback and learnings from over a decade, we are proud to present Optotune’s most effective liquid lens, the EL-12-30-TC. Redesigned from the ground up, it makes use of the latest materials and manufacturing technologies to provide best performance in a compact form-factor.
The tunable lens can be shaped from a flat zero-state into a plano-concave or plano-convex lens, resulting in a focal power range of -6 to +10 diopters (at -250 to +250mA).
The new lens design has been optimized for fast response times and low thermal sensitivity. Cover glasses are AR-coated for 420 to 950nm.
Key advantages:
Applications:
Design faster and more compact optical systems without complex mechanics using the electrically focus tunable lens EL-10-30-C. By applying a current of 0 to 300mA, the focal length of the 10 mm aperture lens can be tuned to a specific value within milliseconds. The EL-10-30-C features threads on either side for easy mounting as well as the possibility to replace the cover glass with a fixed focus offset lens, allowing for free adjustment of the focal length range according to the requirements of your application.
The EL-10-30-C has two main optical configurations:
The basic configuration has planar cover glasses and a focal power range of 5 to 10 dpt, making this the best choice for macro imaging.
The “MV” configuration is optimized for the most common machine vision applications. It contains a negative offset lens so that the over all focal power range range goes from -1.5 to 3.5 dpt, making it the ideal choice for combinations with infinity corrected objective lenses.
Applications:
