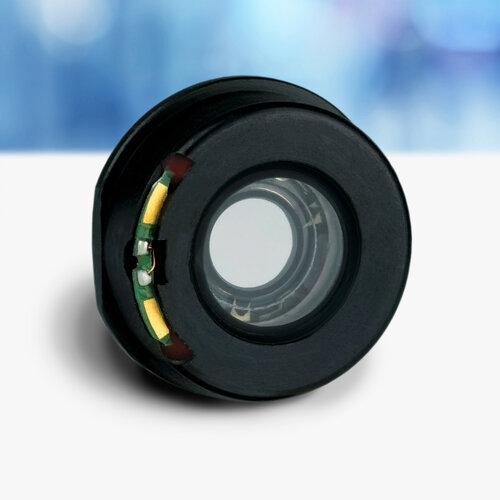

The compact EL-3-10 lens is designed for OEM integration into optical systems for various applications. The working principle is based on the well-established shape-changing lens technology. The curvature of the lens is adjusted by applying an electrical current. Thereby, the focal length is tuned to a desired value within very few milliseconds. The lens architecture is “push pull” which means that the lens curvature is deflected from concave to convex. With actuators based on proven voice-coil technology, the EL-3-10 focus tunable lens is extremely reliable and robust, well suited even for applications in harsh environments over large temperature ranges.
Key advantages:
Applications:
| Dimensions (Ø x thickness) | 10 x 4 mm |
| Clear aperture | 3mm |
| Range of optical power (focal length) | -13 dpt (-77mm) to +13 dpt (+77mm) |
| Transmission wavelength (>94%) | 420 to 1600nm (VIS and NIR coating options) |
| Response time (10/90% step), settling time | 1, 4 ms |
| Wavefront error | <0.15/<0.15λ* |
| Operating temperature | -20 to 65°C |
* Wavefront error provided in λ RMS @525nm with optical axis vertical / horizontal
| Product Name | Description |
| EL-3-10-NIR-26D-FPC |
|
| EL-3-10-NIR-26D-OEM |
|
| EL-3-10-NOC-26D-FPC |
|
| EL-3-10-NOC-26D-OEM |
|
| EL-3-10-VIS-26D-1-OEM-CG (class 1) |
|
| EL-3-10-VIS-26D-FPC |
|
| EL-3-10-VIS-26D-OEM |
|
| EL-3-10-VIS-26D-OEM-CG |
|
Design faster and more compact optical systems without complex mechanics using the electrically focus tunable lens EL-10-30-C. By applying a current of 0 to 300mA, the focal length of the 10 mm aperture lens can be tuned to a specific value within milliseconds. The EL-10-30-C features threads on either side for easy mounting as well as the possibility to replace the cover glass with a fixed focus offset lens, allowing for free adjustment of the focal length range according to the requirements of your application.
The EL-10-30-C has two main optical configurations:
The basic configuration has planar cover glasses and a focal power range of 5 to 10 dpt, making this the best choice for macro imaging.
The “MV” configuration is optimized for the most common machine vision applications. It contains a negative offset lens so that the over all focal power range range goes from -1.5 to 3.5 dpt, making it the ideal choice for combinations with infinity corrected objective lenses.
Applications:
The Optotune ML-20-37 manually focus-tunable lens features a 20mm clear aperture and is designed to have its lens curvature change between convex (+18 dpt), flat (0 dpt) and concave (-18 dpt) by the rotation of the outer adjustment ring. The rotation mechanism is extremely durable (>100’000 rotations), linear and low in torque, allowing for reliable motorization that reaches a repeatability of typically 0.1 dpt.
The ML-20-37 is available with and without C-mount adapter.
Key advantages:
Applications:
The electrically focus-tunable lens EL-10-42-OF with integrated proprietary optical feedback (OF) is dedicated to 2.5D and 3D laser applications. It sets the highest standards in terms of spot quality and speed.
With a focus tuning range of -2.0 to +2.0 diopters, a constant laser spot can be controlled over a large range along the z-axis (up to 250mm), with a long term repeatability of <0,02 dpt.
The EL-10-42-OF comes in two versions, one designed for use in the NIR (950-1100nm) up to 50 W, the other for the visible (532 nm) up to 20 W.
Applications:
| Dimension | 47 x 42 x 41 mm |
| Weight | 90 g |
| Maximum laser power | 50 W (NIR), 20 W (green) |
| Maximum input beam diameter | 8 mm |
| Response time (10-90%) | 8 ms |
| Processing speed | 6 m/s (with digital controller) |
| Laser spot diameter | < 45 μm (constant) |
| Z-range* | 70-100 mm |
| Field size* | 100 x 100 mm |
| Repeatability* | < 500 μm |
Design faster and more compact optical systems without complex mechanics using the electrically focus tunable lens EL-10-30-TC. By applying a current, the focal length of the 10 mm aperture lens can be tuned to a specific value in milliseconds. Thanks to an integrated temperature sensor and characterization data, the lens can be driven to precise focal powers using Optotune’s lens driver 4. The EL-10-30-TC is available with two broadband coating options, VIS for 400-700nm and NIR for 700-1100nm.
Applications:
