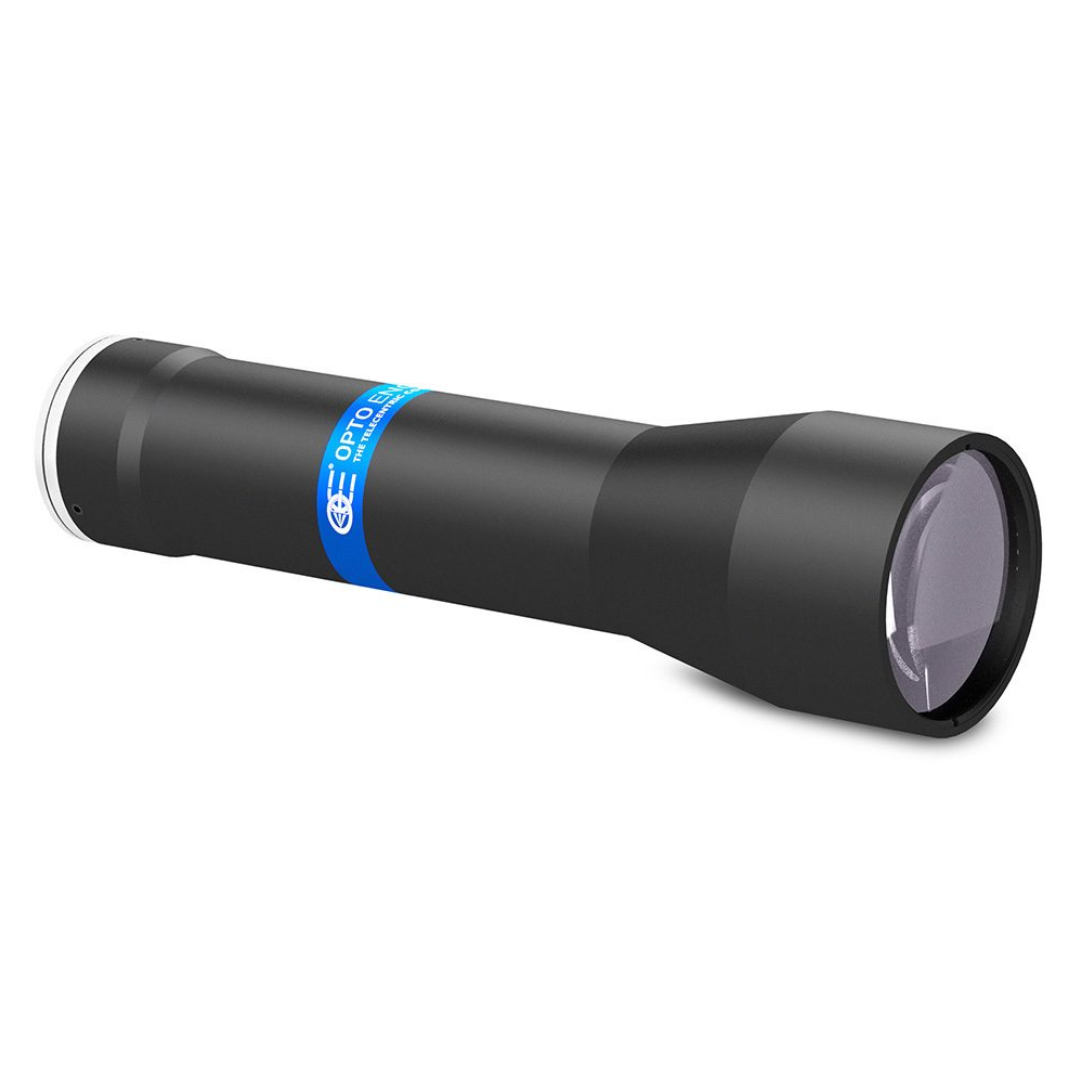

TCLWD3M series is a range of high resolution telecentric lenses specifically designed for electronic and semiconductor Automated Optical Inspection (AOI) and tool pre-setting machines. The long working distance allows for extra space, which is essential if you need to install illumination, pick-up tools or provide the necessary separation from hazardous production processes.
TCLWD3M lenses have been optimized to match up to the new 1.1” Sony sensor in order to deliver high resolution and superb image quality.
In addition to the long working distance, TCLWD3M optics deliver a numerical aperture large enough to take advantage of high resolution / small pixel size cameras, making these lenses a perfect match for general-purpose 2D measurement systems.
| # | Part Number | Magnification | Image Circle Dia (mm) | Max Sensor Size | 1/1.8" FOV (mm) | 2/3" FOV (mm) | 1.1" FOV (mm) | Working Distance (mm) | Working f/N | Telecentricity (deg) | Distortion (%) | Depth of Field (mm) | Mount | Phase Adjustment | Length (mm) | Front Dia (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TCLWD100-110-3M | 1.000 | 17.6 | 1.1″ | 7.13 x 5.33 | 8.50 x 7.09 | 14.16 x 10.37 | 110.0 | 12 | < 0.25 | < 0.15 | 0.6 | C | Yes | 190 | 42 |
| 2 | TCLWD080-110-3M | 0.800 | 17.6 | 1.1″ | 8.91 x 6.66 | 10.63 x 8.86 | 17.70 x 12.96 | 110.0 | 12 | < 0.25 | < 0.15 | 1.0 | C | Yes | 175 | 42 |
| 3 | TCLWD055-110-3M | 0.550 | 17.6 | 1.1″ | 12.96 x 9.69 | 15.45 x 12.89 | 25.75 x 18.85 | 110.0 | 10 | < 0.25 | < 0.15 | 1.7 | C | Yes | 176 | 52 |
| 4 | TCLWD050-110-3M | 0.500 | 17.6 | 1.1″ | 14.26 x 10.66 | 17.00 x 14.18 | 28.32 x 20.74 | 110.0 | 10 | < 0.25 | < 0.15 | 2.1 | C | Yes | 170 | 52 |

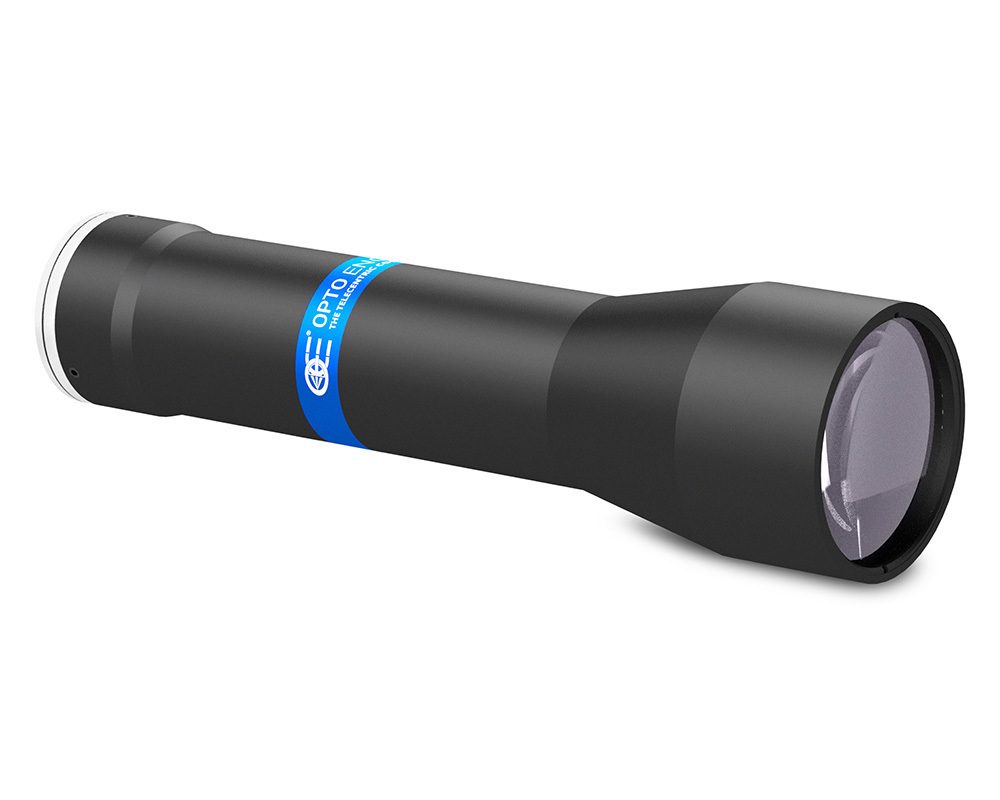

| 5 | TCLWD050-180-3M | 0.500 | 17.6 | 1.1″ | 14.26 x 10.66 | 17.00 x 14.18 | 28.32 x 20.74 | 178.0 | 10 | < 0.25 | < 0.15 | 2.1 | C | Yes | 193 | 52 |
| 6 | TCLWD040-110-3M | 0.400 | 17.6 | 1.1″ | 17.83 x 13.33 | 21.25 x 17.73 | 35.40 x 25.93 | 109.0 | 10 | < 0.25 | < 0.15 | 3.2 | C | Yes | 185 | 62 |
| 7 | TCLWD030-110-23 | 0.300 | 11.0 | 2/3″ | 23.77 x 17.77 | 28.33 x 23.63 | ø = 34.57 | 109.0 | 10 | < 0.25 | < 0.15 | 5.8 | C | Yes | 170 | 62 |
| 8 | TCLWD030-180-3M | 0.300 | 17.6 | 1.1″ | 23.77 x 17.77 | 28.33 x 23.63 | 47.20 x 34.57 | 179.0 | 8 | < 0.25 | < 0.15 | 4.6 | C | Yes | 205 | 82 |
| 9 | TCLWD020-180-23 | 0.200 | 11.0 | 2/3″ | 35.65 x 26.65 | 42.50 x 35.45 | ø = 51.85 | 179.0 | 8 | < 0.25 | < 0.15 | 10.4 | C | Yes | 184 | 82 |
| 10 | TCLWD020-275-23 | 0.200 | 11.0 | 2/3″ | 35.65 x 26.65 | 42.50 x 35.45 | ø = 51.85 | 276.0 | 8 | < 0.25 | < 0.15 | 10.4 | C | Yes | 201 | 82 |
