| # | Part Number | Magnification | Image Circle Dia (mm) | Max Sensor Size | 1/3" FOV (mm) | 1/2" FOV (mm) | 1/1.8" FOV (mm) | Working Distance (mm) | Working f/N | Distortion (%) | Depth of Field (mm) | Mount | Phase Adjustment | Length (mm) | Front Dia (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | RT-TV-1M-150 | 1.000 | 8.0 | 1/2″ | 4.80 x 3.60 | 6.40 x 4.80 | - | 156.0 | 16.7 | < 0.24 | 1.0 | C | Yes | 155.6 | 24.0 |
| 2 | RT-TV-2M-150 | 2.000 | 8.0 | 1/2″ | 2.40 x 1.80 | 3.20 x 2.40 | - | 156.0 | 25.0 | < 0.99 | 0.4 | C | Yes | 164.5 | 24.0 |
| 3 | RT-TV-3M-150 | 3.000 | 8.0 | 1/2″ | 1.60 x 1.20 | 2.13 x 1.60 | - | 156.0 | 37.5 | < 1.13 | 0.3 | C | Yes | 168.4 | 24.0 |
| 4 | RT-TV-1M-220 | 1.000 | 8.0 | 1/2″ | 4.80 x 3.60 | 6.40 x 4.80 | - | 218.2 | 20.0 | < 0.09 | 1.2 | C | Yes | 212.0 | 27.0 |
| 5 | RT-TV-2M-220 | 2.000 | 8.0 | 1/2″ | 2.40 x 1.80 | 3.20 x 2.40 | - | 218.2 | 33.0 | < 0.92 | 0.6 | C | Yes | 220.1 | 27.0 |
| 6 | RT-TV-3M-220 | 3.000 | 8.0 | 1/2″ | 1.60 x 1.20 | 2.13 x 1.60 | - | 218.2 | 43.0 | < 1.10 | 0.4 | C | Yes | 224.8 | 27.0 |
| 7 | RT-TV-1M-290 | 1.000 | 8.0 | 1/2″ | 4.80 x 3.60 | 6.40 x 4.80 | - | 290.7 | 20.0 | < 0.14 | 1.2 | C | Yes | 198.6 | 27.0 |
| 8 | RT-TV-2M-290 | 2.000 | 8.0 | 1/2″ | 2.40 x 1.80 | 3.20 x 2.40 | - | 290.7 | 33.0 | < 0.95 | 0.6 | C | Yes | 207.5 | 27.0 |
| 9 | RT-TV-3M-290 | 3.000 | 8.0 | 1/2″ | 1.60 x 1.20 | 2.13 x 1.60 | - | 290.7 | 43.0 | < 1.11 | 0.4 | C | Yes | 211.4 | 27.0 |
| 10 | RT-TV-05M-400 | 0.500 | 8.0 | 1/2″ | 9.60 x 7.20 | 12.80 x 9.60 | - | 400.0 | 13.9 | < 0.44 | 3.1 | C | Yes | 144.6 | 34.0 |
| 11 | RT-TV-1M-400 | 1.000 | 8.9 | 1/1.8″ | 4.80 x 3.60 | 6.40 x 4.80 | 7.13 x 5.33 | 400.0 | 25.0 | < 0.31 | 1.7 | C | Yes | 161.8 | 34.0 |
| 12 | RT-TV-2M-400 | 2.000 | 8.9 | 1/1.8″ | 2.40 x 1.80 | 3.20 x 2.40 | 3.57 x 2.67 | 400.0 | 33.3 | < 0.06 | 0.6 | C | Yes | 173.2 | 34.0 |

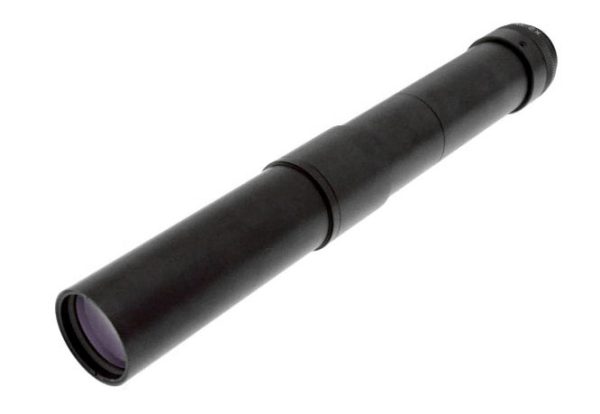

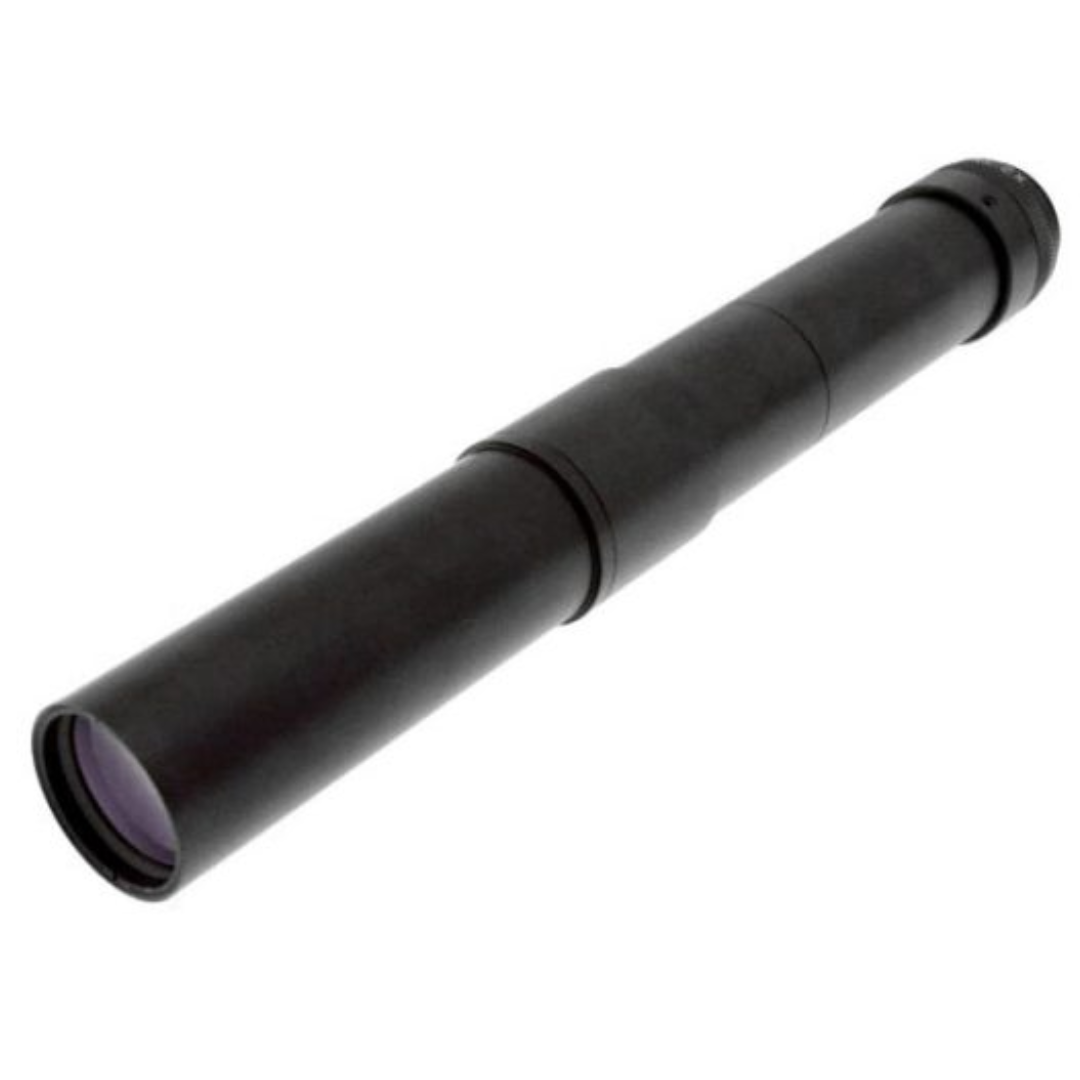

![Opto Engineering – Telecentric [TCLWD SERIES]](https://www.jm-vistec.com/wp-content/uploads/2026/03/TCLWD-series-1-300x204.jpg)

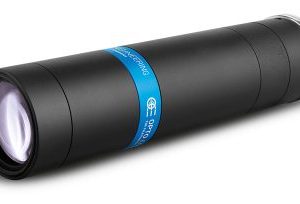

TCLWD is a range of telecentric lenses specifically designed for electronic and semiconductor Automated Optical Inspection (AOI) and tool presetting machines.
All these lenses feature a working distance of 132 mm while ensuring excellent optical resolution, high telecentricity and low distortion, thus matching and even exceeding the industrial requirements for the target applications.
The long working distance allows for extra space, which is essential if you need to install illumination, pick-up tools or provide the necessary separation from hazardous production processes.
In addition to the long working distance, TCLWD optics deliver a numerical aperture large enough to take advantage of high resolution / small pixel size cameras, making these lenses a perfect match for general-purpose 2D measurement systems.
The unique right angle over-molding available in up, down, left and right orientations allows for immediate turns behind the interface that are specific to your application needs eliminating the need for minimum bend radius concerns. The common configuration consists of a right angle on the camera end and an over-molded straight connector on the equipment end. However both connectors are available with a right angle.
Our High Flex extension cables offer system versatility and convenience when required to extend your current cable length. Both the plug and the receptacle connectors feature durable over-molded strain reliefs. The receptacle end is completed with 4/40 jack-nuts to ensure locking and proper, constant connection through motion and vibration. Right angle and low profile right angle assemblies are also available in the extension format.
Features and Benefits:
Applications:
Features and Benefits:
Applications:
