Opto Engineering – Telecentric [TCSM SERIES]

Name: Opto Engineering – Telecentric [TCSM SERIES]
SKU: 7000
Availability: InStock

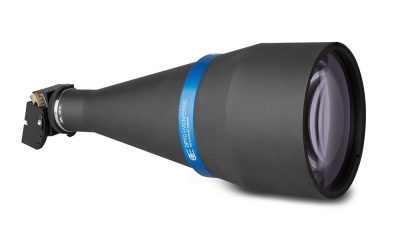

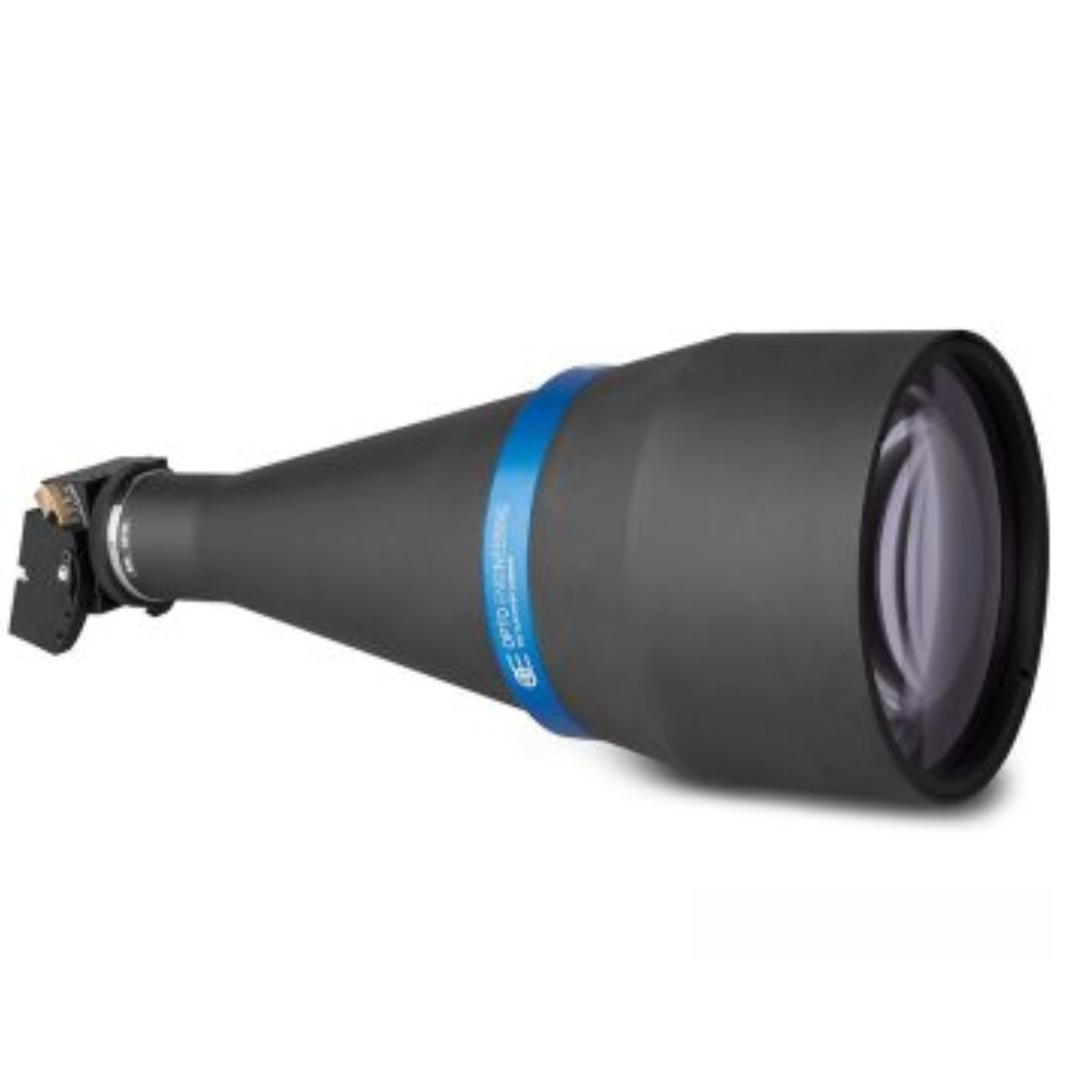

TCSM series is a unique family of bi-telecentric lenses for extremely accurate 3D dimensional measurement systems. All TCSM lenses are equipped with a high-precision Scheimpflug adjustment mechanism that fits any type of C-mount camera. Besides achieving very good focus at wide tilt angles, bi-telecentricity also yields incredibly low distortion. Images are linearly compressed only in one direction, thus making 3D-reconstruction very easy and exceptionally accurate.

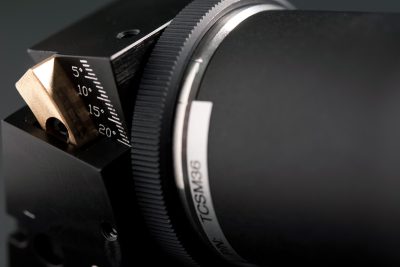

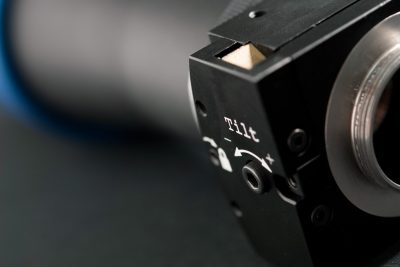

The available magnifications ranges from 0.5x to 0.1x while the angle of view reaches 30°-45° to meet the measurement needs of triangulation-based techniques. The Scheimpflug mount tilts around the horizontal axis of the detector plane to ensure excellent pointing stability and ease of focus.

3D bi-telecentric lenses with Scheimpflug adjustment

#	Part Number	Object Tilt (deg)	Mount Tilt (deg)	Horizontal Mag (x)	Vertical Mag (x)	Max Sensor Size	1/3" H-FOV (mm)	1/2" H-FOV (mm)	2/3" H-FOV (mm)	1/3" V-FOV (mm)	1/2" V-FOV (mm)	2/3" V-FOV (mm)	Working Distance (mm)	Working f/N	Telecentricity typical (max) (deg)	Distortion typical (max) (%)	Mount	Phase Adjustment	Length (mm)	Front Dia (mm)
1	TCSM016	0	0	0.528	0.528	2/3″	9.09 x 6.82	12.12 x 9.09	16.10 x 13.43	6.82 x 9.09	9.09 x 12.12	13.43 x 16.10	43.1	8	< 0.06 (0.10)	< 0.04 (0.07)	C	Yes	112.6	37.7
	TCSM016	10	5.3	0.528	0.522	2/3″	9.09 x 6.90	12.12 x 9.20	16.10 x 13.58	6.82 x 9.20	9.09 x 12.26	13.43 x 16.28
	TCSM016	20	10.9	0.528	0.505	2/3″	9.09 x 7.13	12.12 x 9.50	16.10 x 14.04	6.82 x 9.50	9.09 x 12.67	13.43 x 16.83
	TCSM016	30	17.0	0.528	0.478	2/3″	9.09 x 7.53	12.12 x 10.04	16.10 x 14.83	6.82 x 10.04	9.09 x 13.39	13.43 x 17.78
2	TCSM024	0	0	0.350	0.350	2/3″	13.71 x 10.29	18.29 x 13.71	24.29 x 20.26	10.29 x 13.71	13.71 x 18.29	20.26 x 24.29	67.2	8	< 0.08 (0.10)	< 0.04 (0.10)	C	Yes	137.5	44.0
	TCSM024	15	5.4	0.350	0.340	2/3″	13.71 x 10.59	18.29 x 14.12	24.29 x 20.85	10.29 x 14.12	13.71 x 18.82	20.26 x 25.00
	TCSM024	30	11.4	0.350	0.309	2/3″	13.71 x 11.65	18.29 x 15.53	24.29 x 22.94	10.29 x 15.53	13.71 x 20.71	20.26 x 27.51
	TCSM024	45	19.3	0.350	0.262	2/3″	13.71 x 13.74	18.29 x 18.32	24.29 x 27.06	10.29 x 18.32	13.71 x 24.43	20.26 x 32.44
3	TCSM036	0	0	0.243	0.243	2/3″	19.75 x 14.81	26.34 x 19.75	34.98 x 29.18	14.81 x 19.75	19.75 x 26.34	29.18 x 34.98	102.5	8	< 0.04 (0.08)	< 0.04 (0.10)	C	Yes	164.9	61.0
	TCSM036	15	3.7	0.243	0.235	2/3″	19.75 x 15.32	26.34 x 20.43	34.98 x 30.17	14.81 x 20.43	19.75 x 27.23	29.18 x 36.17
	TCSM036	30	8.0	0.243	0.212	2/3″	19.75 x 16.98	26.34 x 22.64	34.98 x 33.44	14.81 x 22.64	19.75 x 30.19	29.18 x 40.09
	TCSM036	45	13.6	0.243	0.177	2/3″	19.75 x 20.34	26.34 x 27.12	34.98 x 40.06	14.81 x 27.12	19.75 x 36.16	29.18 x 48.02
4	TCSM048	0	0	0.185	0.185	2/3″	25.95 x 19.46	34.59 x 25.95	45.95 x 38.32	19.46 x 25.95	25.95 x 34.59	38.32 x 45.95	132.9	8	< 0.08 (0.10)	< 0.05 (0.10)	C	Yes	200.6	75.0
	TCSM048	15	2.8	0.185	0.179	2/3″	25.95 x 20.11	34.59 x 26.82	45.95 x 39.61	19.46 x 26.82	25.95 x 35.75	38.32 x 47.49
	TCSM048	30	6.1	0.185	0.161	2/3″	25.95 x 22.36	34.59 x 29.81	45.95 x 44.04	19.46 x 29.81	25.95 x 39.75	38.32 x 52.80
	TCSM048	45	10.5	0.185	0.133	2/3″	25.95 x 27.07	34.59 x 36.09	45.95 x 53.31	19.46 x 36.09	25.95 x 48.12	38.32 x 63.91
5	TCSM056	0	0	0.157	0.157	2/3″	30.57 x 22.93	40.76 x 30.57	54.14 x 45.16	22.93 x 30.57	30.57 x 40.76	45.16 x 54.14	157.8	8	< 0.05 (0.08)	< 0.03 (0.08)	C	Yes	224.4	80.0
	TCSM056	15	2.4	0.157	0.152	2/3″	30.57 x 23.68	40.76 x 31.58	54.14 x 46.64	22.93 x 31.58	30.57 x 42.11	45.16 x 55.92
	TCSM056	30	5.1	0.157	0.137	2/3″	30.57 x 26.28	40.76 x 35.04	54.14 x 51.75	22.93 x 35.04	30.57 x 46.72	45.16 x 62.04
	TCSM056	45	8.8	0.157	0.112	2/3″	30.57 x 32.14	40.76 x 42.86	54.14 x 63.30	22.93 x 42.86	30.57 x 57.14	45.16 x 75.89
6	TCSM064	0	0	0.137	0.137	2/3″	35.04 x 26.28	46.72 x 35.04	62.04 x 51.75	26.28 x 35.04	35.04 x 46.72	51.75 x 62.04	181.8	8	< 0.05 (0.08)	< 0.03 (0.07)	C	Yes	245.5	100.0
	TCSM064	15	2.1	0.137	0.132	2/3″	35.04 x 27.27	46.72 x 36.36	62.04 x 53.71	26.28 x 36.36	35.04 x 48.48	51.75 x 64.39
	TCSM064	30	4.5	0.137	0.119	2/3″	35.04 x 30.25	46.72 x 40.34	62.04 x 59.58	26.28 x 40.34	35.04 x 53.78	51.75 x 71.43
	TCSM064	45	7.8	0.137	0.098	2/3″	35.04 x 36.73	46.72 x 48.98	62.04 x 72.35	26.28 x 48.98	35.04 x 65.31	51.75 x 86.73
7	TCSM080	0	0	0.110	0.110	2/3″	43.64 x 32.73	58.18 x 43.64	77.27 x 64.45	32.73 x 43.64	43.64 x 58.18	64.45 x 77.27	226.7	8	< 0.04 (0.08)	< 0.02 (0.10)	C	Yes	291.2	116.0
	TCSM080	15	1.7	0.110	0.106	2/3″	43.64 x 33.96	58.18 x 45.28	77.27 x 66.89	32.73 x 45.28	43.64 x 60.38	64.45 x 80.19
	TCSM080	30	3.6	0.110	0.095	2/3″	43.64 x 37.89	58.18 x 50.53	77.27 x 74.63	32.73 x 50.53	43.64 x 67.37	64.45 x 89.47
	TCSM080	45	6.3	0.110	0.078	2/3″	43.64 x 46.15	58.18 x 61.54	77.27 x 90.90	32.73 x 61.54	43.64 x 82.05	64.45 x 108.97
8	TCSM096	0	0	0.093	0.093	2/3″	51.61 x 38.71	68.82 x 51.61	91.40 x 76.24	38.71 x 51.61	51.61 x 68.82	76.24 x 91.40	278.6	8	< 0.06 (0.08)	< 0.04 (0.08)	C	Yes	336.6	143.0
	TCSM096	15	1.4	0.093	0.090	2/3″	51.61 x 40.00	68.82 x 53.33	91.40 x 78.78	38.71 x 53.33	51.61 x 71.11	76.24 x 94.44
	TCSM096	30	3.1	0.093	0.081	2/3″	51.61 x 44.44	68.82 x 59.26	91.40 x 87.53	38.71 x 59.26	51.61 x 79.01	76.24 x 104.94
	TCSM096	45	5.3	0.093	0.066	2/3″	51.61 x 54.55	68.82 x 72.73	91.40 x 107.42	38.71 x 72.73	51.61 x 96.97	76.24 x 128.79
