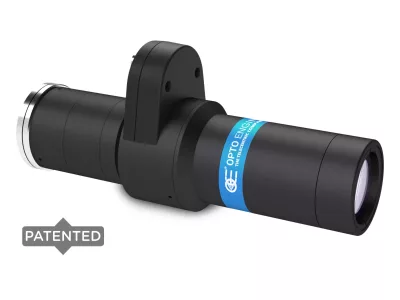

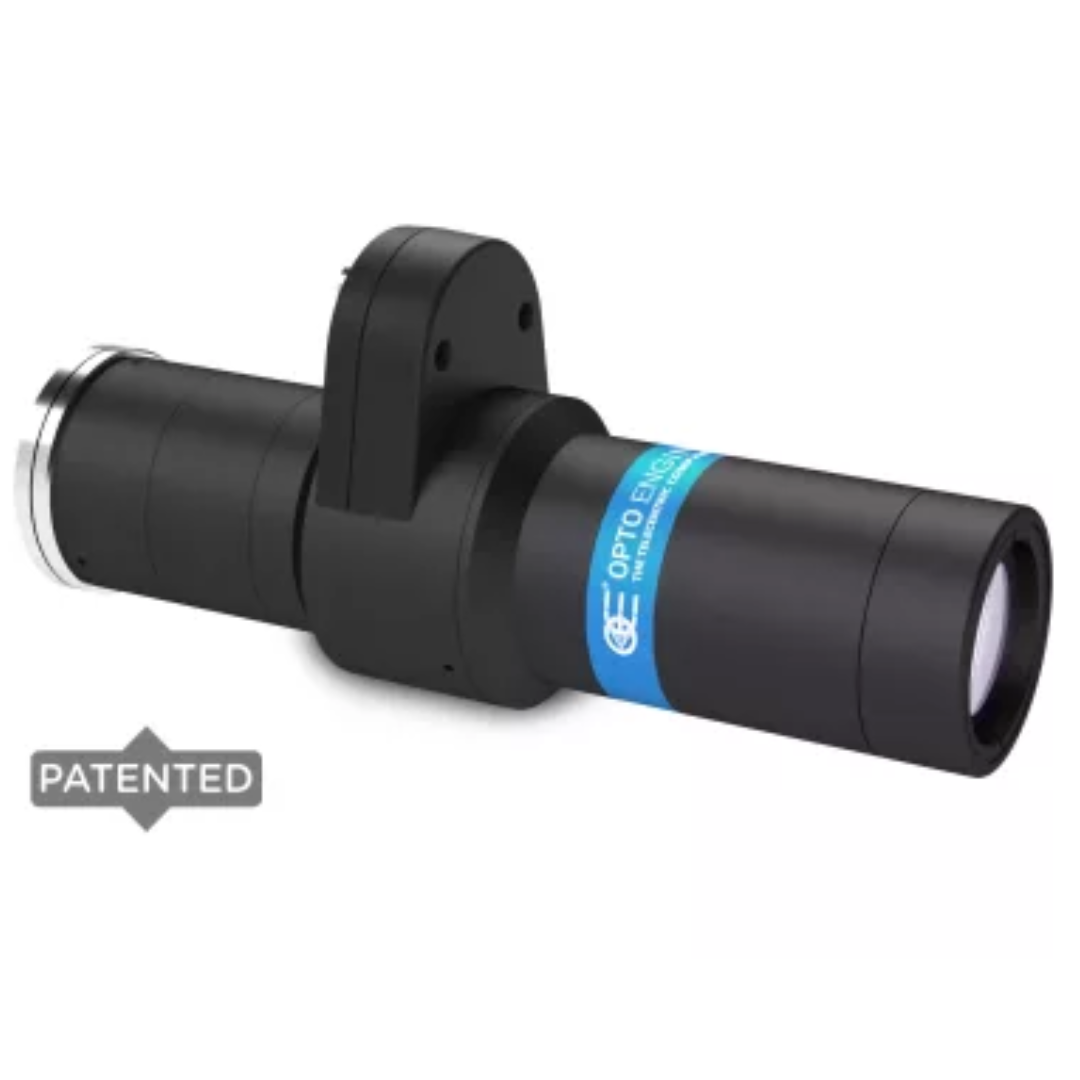

TCEL series by Opto Engineering® features a perfect combination of telecentric optics and liquid lenses technology allowing to significantly increase the depth of field (DOF). This is particularly important for small fields of view due to the proportionality of the DOF with the magnification.
Thanks to their optical design, TCEL lenses ensure excellent optical performances both in terms of telecentricity and especially distortion throughout the entire operating range. This makes them a perfect choice for many inspection and measurement applications ranging from the electronics and semiconductors industry, to the automotive sector.
The built-in, electronically controlled Optotune liquid lenses enable to precisely tune the optical power of telecentric lenses adjusting the focus: this adjustment can be extremely fast with response times in the order of few milliseconds. The driver comes as a compact USB-powered current source with free software and can be used as a stand-alone solution or integrated into OEM designs. Communication follows an open simple serial protocol, which can be implemented in any programming language on Windows or Linux (C#, Labview and Python source code available).
Don’t worry! We can integrate liquid lenses with many other models including those with coaxial illumination.
| # | Part Number | Additional Notes | Magnification | Image Circle Dia (mm) | Max Sensor Size | 1/3" FOV (mm) | 1/1.8" FOV (mm) | 2/3" FOV (mm) | Working Distance Range (mm) | Working f/N | Telecentricity typical (max) (deg) | Distortion typical (max) (%) | Depth of Field (mm) | Mount | Length (mm) | Front Dia (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TCEL23036 | a | 0.243 | 11.0 | 2/3″ | 19.75 x 14.81 | 29.34 x 21.93 | 34.98 x 29.18 | 122.9 - 73.2 | 8 | < 0.08 (0.1) | < 0.04 (0.1) | 7.0 | C | 166.4 | 61.0 |
| 2 | TCEL050 | - | 0.500 | 11.0 | 2/3″ | 9.60 x 7.20 | 14.26 x 10.66 | 17.00 x 14.18 | 146.3 - 112.2 | 12 | < 0.04 (0.08) | < 0.1 (0.2) | 2.5 | C | 130.8 | 37.7 |
| 3 | TCEL066 | - | 0.670 | 11.0 | 2/3″ | 7.16 x 5.37 | 10.64 x 7.96 | 12.69 x 10.58 | 146.1 - 112.3 | 12 | < 0.04 (0.08) | < 0.1 (0.2) | 1.4 | C | 149.3 | 37.7 |
| 4 | TCEL075 | - | 0.750 | 11.0 | 2/3″ | 6.40 x 4.80 | 9.51 x 7.11 | 11.33 x 9.45 | 146.1 - 112.5 | 12 | < 0.07 (0.1) | < 0.1 (0.2) | 1.1 | C | 155.0 | 37.7 |
| 5 | TCEL100 | - | 1.000 | 11.0 | 2/3″ | 4.80 x 3.60 | 7.13 x 5.33 | 8.50 x 7.09 | 142.0 - 118.0 | 12 | < 0.08 (0.1) | < 0.05 (0.1) | 0.6 | C | 126.0 | 37.7 |
| 6 | TCEL150 | b | 1.500 | 11.0 | 2/3″ | 3.20 x 2.40 | 4.75 x 3.55 | 5.67 x 4.73 | 142.0 - 118.0 | 16 | < 0.08 (0.1) | < 0.05 (0.1) | 0.4 | C | 140.4 | 37.7 |
| 7 | TCEL250 | b | 2.500 | 11.0 | 2/3″ | 1.92 x 1.44 | 2.85 x 2.13 | 3.40 x 2.84 | 142.1 - 117.9 | 20 | < 0.08 (0.1) | < 0.05 (0.1) | 0.2 | C | 157.0 | 37.7 |
| 8 | TCEL350 | b | 3.500 | 11.0 | 2/3″ | 1.37 x 1.03 | 2.04 x 1.52 | 2.43 x 2.03 | 142.1 - 117.9 | 24 | < 0.08 (0.1) | < 0.05 (0.1) | 0.1 | C | 174.7 | 37.7 |
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consits of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
• 100° angular field with highest optical
performance
• Precise manual focusing
• Robust full-metal construction
• Continuous aperture setting or click stop
• For industrial cameras up to sensor sizes of
24×36 mm or 41mm line sensors
• Features special screws to fix focus and aperture
settings even in rough situations
• High contrast over the entire image field
Emerald’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Very fast f/1.4 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
High optical performance both at infinity and at 1:6.7 scale
Features special screws to fix focus and aperture settings even in rough situations
