Opto Engineering – Telecentric [TC12M SERIES]

Name: Opto Engineering – Telecentric [TC12M SERIES]
SKU: 6789
Availability: InStock

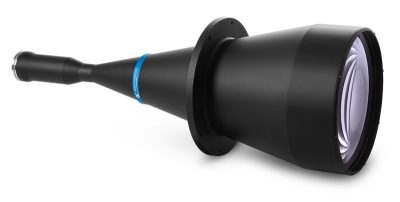

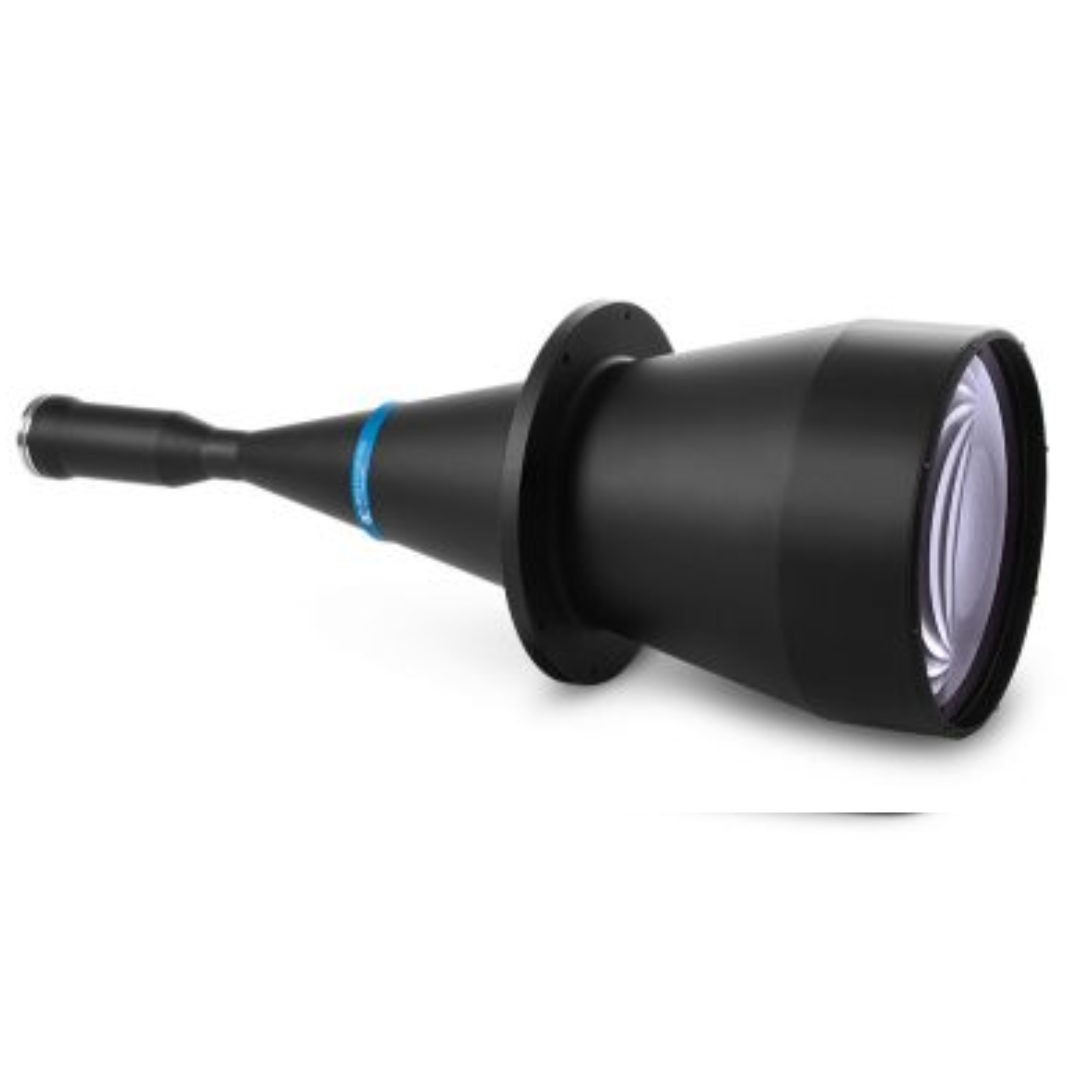

TC12M series features high-resolution telecentric lenses for sensors with an image circle up to 33.5 mm. They perfectly fit cameras with large sensors, up to APS-H format.

TC12M series lenses feature a compact and robust design that makes them ideal for various industrial applications.

Select options below to view price

Add to Proposal

#	Part Number	Magnification	Image Circle Dia (mm)	Max Sensor Size	APS-C IMX342 FOV (mm)	Line 4k-7µm (mm)	APS-H PYTHON 25K FOV (mm)	Working Distance (mm)	Working f/N	Telecentricity typical (max) (deg)	Distortion typical (max) (%)	Depth of Field (mm)	Mount	Length (mm)	Front Dia (mm)

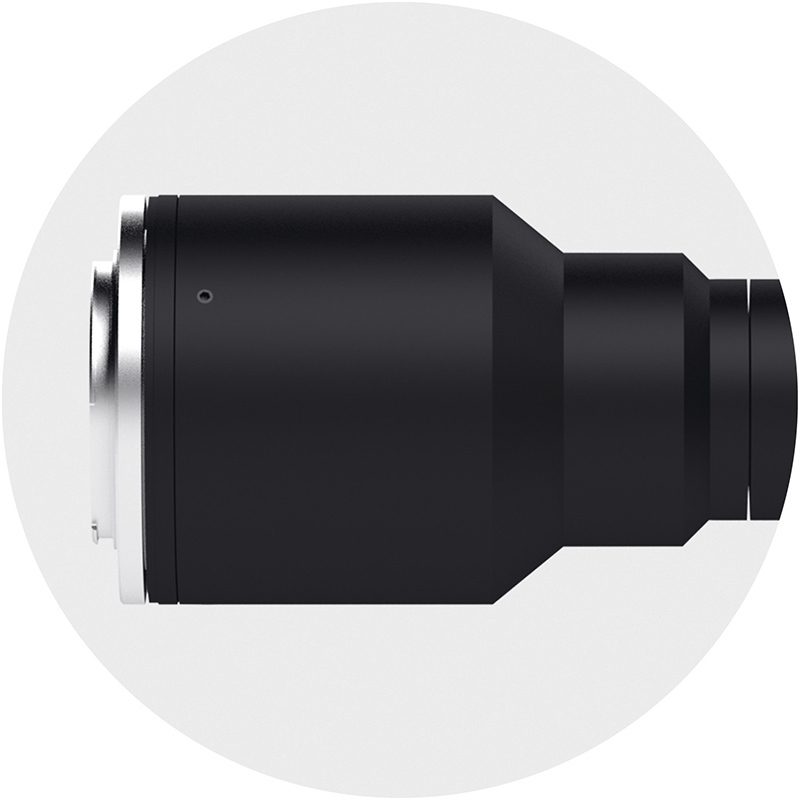

1	TC12M016-F	1.825	33.5	APS-H	12.25 x 9.19	15.71	12.62 x 12.62	42.3	16	<0.08 (0.10)	<0.08 (0.10)	0.4	F	213.0	37.7

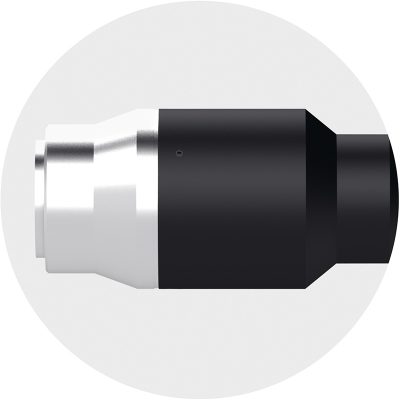

2	TC12M016-J	1.825	33.5	APS-H	12.25 x 9.19	15.71	12.62 x 12.62	42.3	16	<0.08 (0.10)	<0.08 (0.10)	0.4	M42x1 FD 12	247.5	37.7
3	TC12M024-F	1.208	33.5	APS-H	18.51 x 13.88	23.73	19.07 x 19.07	66.7	16	<0.08 (0.10)	<0.08 (0.10)	0.9	F	222.1	44
4	TC12M024-J	1.208	33.5	APS-H	18.51 x 13.88	23.73	19.07 x 19.07	66.7	16	<0.08 (0.10)	<0.08 (0.10)	0.9	M42x1 FD 12	256.6	44
5	TC12M036-F	0.838	33.5	APS-H	26.68 x 20.01	34.21	27.49 x 27.49	101.9	12	<0.08 (0.10)	<0.08 (0.10)	1.4	F	270.1	61
6	TC12M036-J	0.838	33.5	APS-H	26.68 x 20.01	34.21	27.49 x 27.49	101.9	12	<0.08 (0.10)	<0.08 (0.10)	1.4	M42x1 FD 12	304.1	61
7	TC12M048-F	0.635	33.5	APS-H	35.21 x 26.41	45.15	36.28 x 36.28	131.1	12	<0.08 (0.10)	<0.08 (0.10)	2.5	F	292.7	75
8	TC12M048-J	0.635	33.5	APS-H	35.21 x 26.41	45.15	36.28 x 36.28	131.1	12	<0.08 (0.10)	<0.08 (0.10)	2.5	M42x1 FD 12	327.2	75
9	TC12M056-F	0.531	33.5	APS-H	42.11 x 31.58	53.99	43.39 x 43.39	136.5	11	<0.08 (0.10)	<0.08 (0.10)	3.2	F	331.7	80
10	TC12M056-J	0.531	33.5	APS-H	42.11 x 31.58	53.99	43.39 x 43.39	136.5	11	<0.08 (0.10)	<0.08 (0.10)	3.2	M42x1 FD 12	366.2	80
11	TC12M064-F	0.465	33.5	APS-H	48.09 x 36.06	61.66	49.55 x 49.55	157.6	11	<0.08 (0.10)	<0.08 (0.10)	4.2	F	353.5	100
12	TC12M064-J	0.465	33.5	APS-H	48.09 x 36.06	61.66	49.55 x 49.55	157.6	11	<0.08 (0.10)	<0.08 (0.10)	4.2	M42x1 FD 12	388.0	100
13	TC12M080-F	0.376	33.5	APS-H	59.47 x 44.60	76.25	61.28 x 61.28	199.0	11	<0.08 (0.10)	<0.08 (0.10)	6.4	F	401.2	116
14	TC12M080-J	0.376	33.5	APS-H	59.47 x 44.60	76.25	61.28 x 61.28	199.0	11	<0.08 (0.10)	<0.08 (0.10)	6.4	M42x1 FD 12	435.7	116
15	TC12M096-F	0.306	33.5	APS-H	73.07 x 54.80	93.69	75.29 x 75.29	256.0	8	<0.08 (0.10)	<0.08 (0.10)	7.0	F	423.7	143
16	TC12M096-J	0.306	33.5	APS-H	73.07 x 54.80	93.69	75.29 x 75.29	256.0	8	<0.08 (0.10)	<0.08 (0.10)	7.0	M42x1 FD 12	458.2	143
17	TC12M120-F	0.233	33.5	APS-H	95.97 x 71.97	123.05	98.88 x 98.88	303.9	8	<0.08 (0.10)	<0.08 (0.10)	12.2	F	508.7	180
18	TC12M120-J	0.233	33.5	APS-H	95.97 x 71.97	123.05	98.88 x 98.88	303.9	8	<0.08 (0.10)	<0.08 (0.10)	12.2	M42x1 FD 12	543.2	180
19	TC12M144-F	0.196	33.5	APS-H	114.08 x 85.56	146.28	117.55 x 117.55	358.5	8	<0.08 (0.10)	<0.08 (0.10)	17.2	F	564.2	200
20	TC12M144-J	0.196	33.5	APS-H	114.08 x 85.56	146.28	117.55 x 117.55	358.5	8	<0.08 (0.10)	<0.08 (0.10)	17.2	M42x1 FD 12	598.7	200
21	TC12M192-F	0.144	33.5	APS-H	155.28 x 116.46	199.10	160.00 x 160.00	475.9	8	<0.08 (0.10)	<0.08 (0.10)	31.8	F	700.2	260
22	TC12M192-J	0.144	33.5	APS-H	155.28 x 116.46	199.10	160.00 x 160.00	475.9	8	<0.08 (0.10)	<0.08 (0.10)	31.8	M42x1 FD 12	734.7	260
23	TC12M240-F	0.115	33.5	APS-H	194.43 x 145.83	249.30	200.35 x 200.35	542.8	8	<0.08 (0.10)	<0.08 (0.10)	49.9	F	849.8	322
24	TC12M240-J	0.115	33.5	APS-H	194.43 x 145.83	249.30	200.35 x 200.35	542.8	8	<0.08 (0.10)	<0.08 (0.10)	49.9	M42x1 FD 12	884.3	322
25	TC12M308-F	0.100	37.2	2.4″	223.60 x 167.70	286.70	230.40 x 230.40	500.0	8	<0.10 (0.15)	<0.10 (0.15)	66.0	F	1001.0	417
26	TC12M308-J	0.100	37.2	2.4″	223.60 x 167.70	286.70	230.40 x 230.40	500.0	8	<0.10 (0.15)	<0.10 (0.15)	66.0	M42x1 FD 12	1035.5	417
