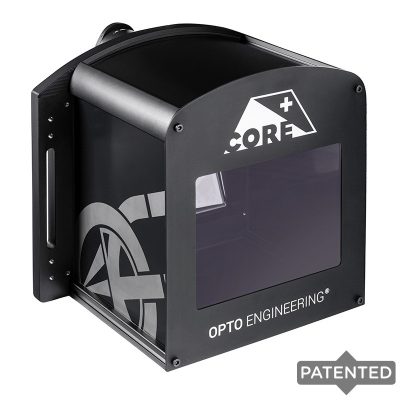

TC CORE PLUS series is a range of large FOV telecentric lenses for area scan cameras, specifically designed for the latest generation 1/1.8” and 2/3” CMOS sensors. Their opto-mechanical design is ideal to inspect large objects in a reduced space.
The lenses from the TC CORE PLUS series are up to 45% shorter than other telecentric lenses available on the market.
Their patented optical design, inspired by catadioptric telescopes, allows for large FOV imaging while keeping the overall footprint compact.
The length and working distance of a telecentric lens strongly impacts the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall system dimensions are doubled. For this reason, the working distance of TC CORE PLUS lenses has been optimized to make the vision system as compact as possible. TC CORE PLUS lenses feature a built-in mounting flange for easy mounting without additional clamps, making their integration easy and cost-effective.
| # | Part Number | Magnification | Image Shape Dimension (mm) | Max Sensor Size | 1/3" FOV (mm) | 1/1.8" FOV (mm) | 2/3" FOV (mm) | Working Distance (mm) | Working f/N | Telecentricity typical (max) (deg) | Distortion typical (max) (%) | Residual Distortion (%) | Depth of Field (mm) | Mount | Phase Adjustment | Dim A (mm) | Dim B (mm) | Dim C (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TCCP12144 | 0.044 | 7.48 x 5.60 | 1/1.8″ | 109.09 x 81.82 | 162.05 x 121.14 | - | 217.4 | 8 | < 0.06 (0.1) | < 0.8 | < 0.01 | 213.8 | C | Yes | 332 | 303 | 314 |
| 2 | TCCP23144 | 0.059 | 8.93 x 7.45 | 2/3″ | 81.91 x 61.43 | 121.67 x 90.96 | 145.05 x 120.99 | 217.4 | 8 | < 0.06 (0.1) | < 0.8 | < 0.01 | 120.6 | C | Yes | 332 | 303 | 321 |
| 3 | TCCP12192 | 0.033 | 7.48 x 5.60 | 1/1.8″ | 145.90 x 109.42 | 200.00 x 162.01 | - | 328.0 | 8 | < 0.12 (0.18) | < 0.8 | < 0.01 | 382.5 | C | Yes | 410 | 344 | 358 |
| 4 | TCCP23192 | 0.044 | 8.93 x 7.45 | 2/3″ | 109.59 x 82.19 | 162.79 x 121.69 | 194.06 x 161.87 | 328.0 | 8 | < 0.12 (0.18) | < 0.8 | < 0.01 | 215.8 | C | Yes | 410 | 344 | 359 |
| 5 | TCCP12260 | 0.027 | 7.48 x 5.60 | 1/1.8″ | 177.78 x 133.33 | 264.07 x 197.41 | - | 366.0 | 8 | < 0.18 (0.22) | < 0.9 | < 0.01 | 567.9 | C | Yes | 480 | 397 | 435 |
| 6 | TCCP23260 | 0.036 | 8.93 x 7.45 | 2/3″ | 133.33 x 100.00 | 198.06 x 148.06 | 236.11 x 196.94 | 366.0 | 8 | < 0.18 (0.22) | < 0.9 | < 0.01 | 319.4 | C | Yes | 480 | 397 | 435 |
Our Industrial High Flex Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. This is a solution for brutal applications that require more than the traditional cable can offer. Double shielded cable ensures the best electrical performance. Intercon’s industrial high flex cable has exceeded 12 million + flex cycles in both tick tock and rolling torsion testing. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion. Our unique right/left and up/down strain relief orientations provide a solution for those applications where limited space exists behind the camera. The low profile right angle orientations eliminate the stress that can be placed on the cable, connector and camera when using a traditional straight assembly in these tight areas. The thumbscrew-locking feature ensures that the interface will remain secure despite motion and vibration.
Industrial High Flex Cat6a Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. IFC6-GEVP is the solution for brutal applications that require more than the traditional CAT 6a cable can offer. Double shielded cable ensures the best electrical performance. Our unique overmold design provides increased strain relief. The high flex cable is designed to withstand 3 million + flex cycles. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion.
Industrial High Flex Cat5e Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. IFC6-GEVP is the solution for brutal applications that require more than the traditional CAT 5e cable can offer. Double shielded cable ensures the best electrical performance. Our unique overmold design provides increased strain relief. The high flex cable is designed to withstand 10 million + flex cycles. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion.
The unique right angle over-molding available in up, down, left and right orientations allows for immediate turns behind the interface that are specific to your application needs eliminating the need for minimum bend radius concerns. The common configuration consists of a right angle on the camera end and an over-molded straight connector on the equipment end. However both connectors are available with a right angle.
Our High Flex extension cables offer system versatility and convenience when required to extend your current cable length. Both the plug and the receptacle connectors feature durable over-molded strain reliefs. The receptacle end is completed with 4/40 jack-nuts to ensure locking and proper, constant connection through motion and vibration. Right angle and low profile right angle assemblies are also available in the extension format.
CoaXpress is a recently developed camera standard utilizing a single coax cable for transfer rates of up to 6.25 Gbps. Utilizing precision 75 ohm impedance and 100% sweep tested cable, Intercon 1 CoaXPress cable assemblies are JIIA certified to be CoaXPress compliant
By combining materials like crush resistant gas-injected polyethylene compound that reduces attenuation and extends operating band width. Intercon 1 provides the most robust industrial assemblies available. These assemblies are designed to function within a broad range of environmental conditions.
