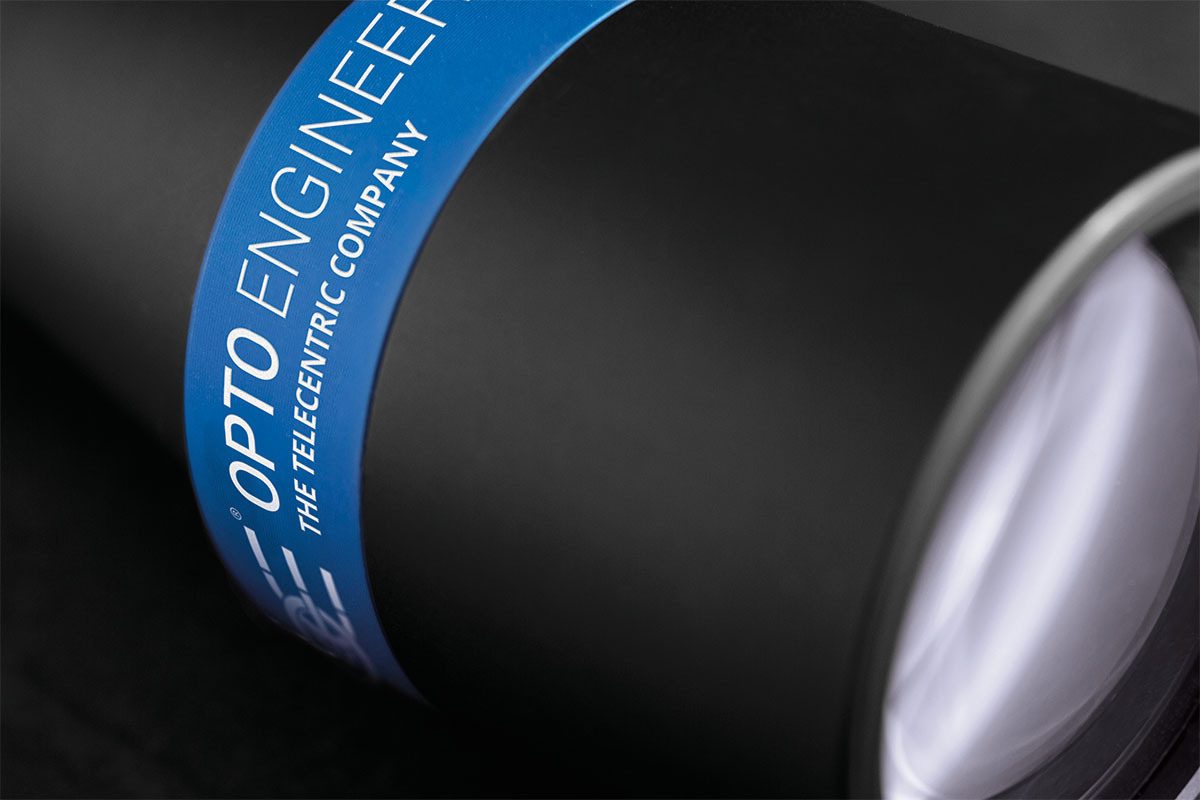

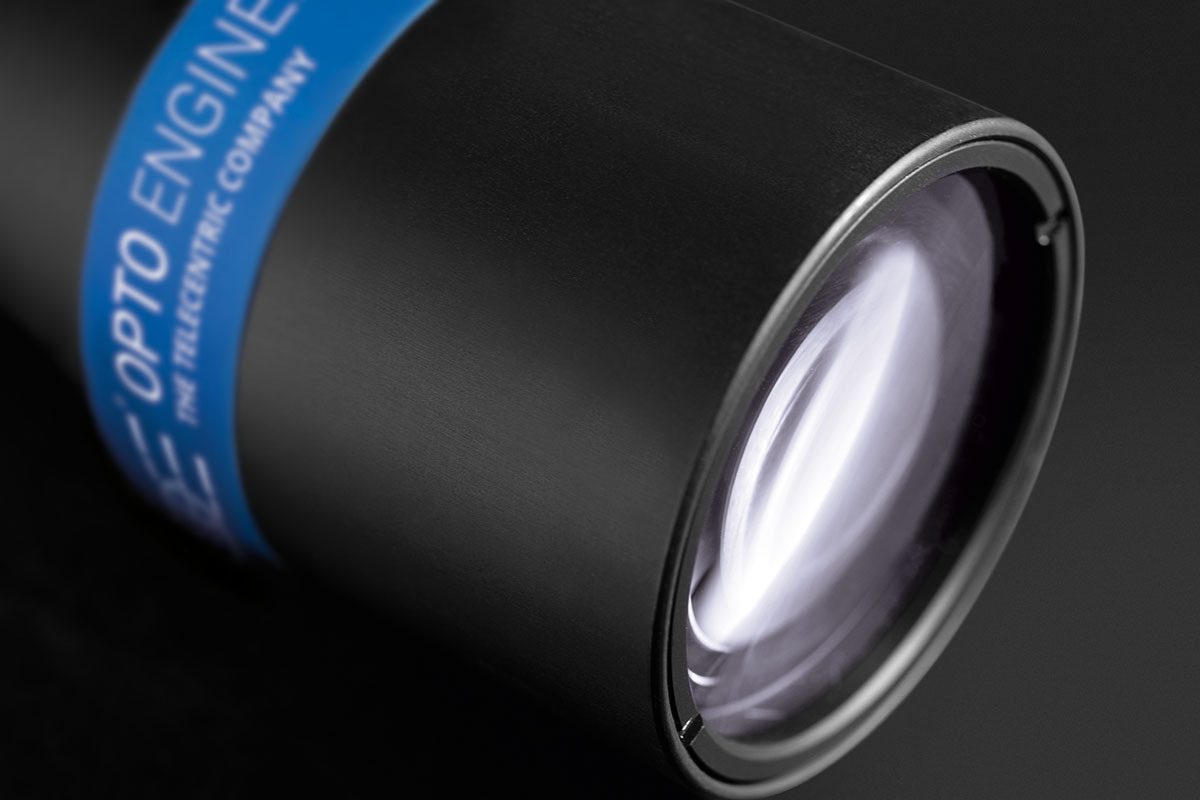

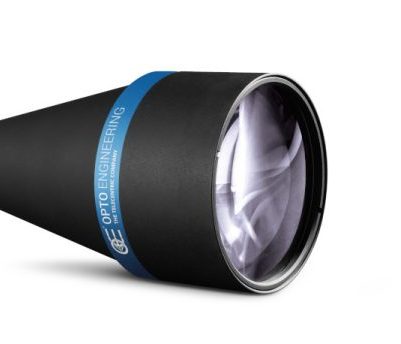

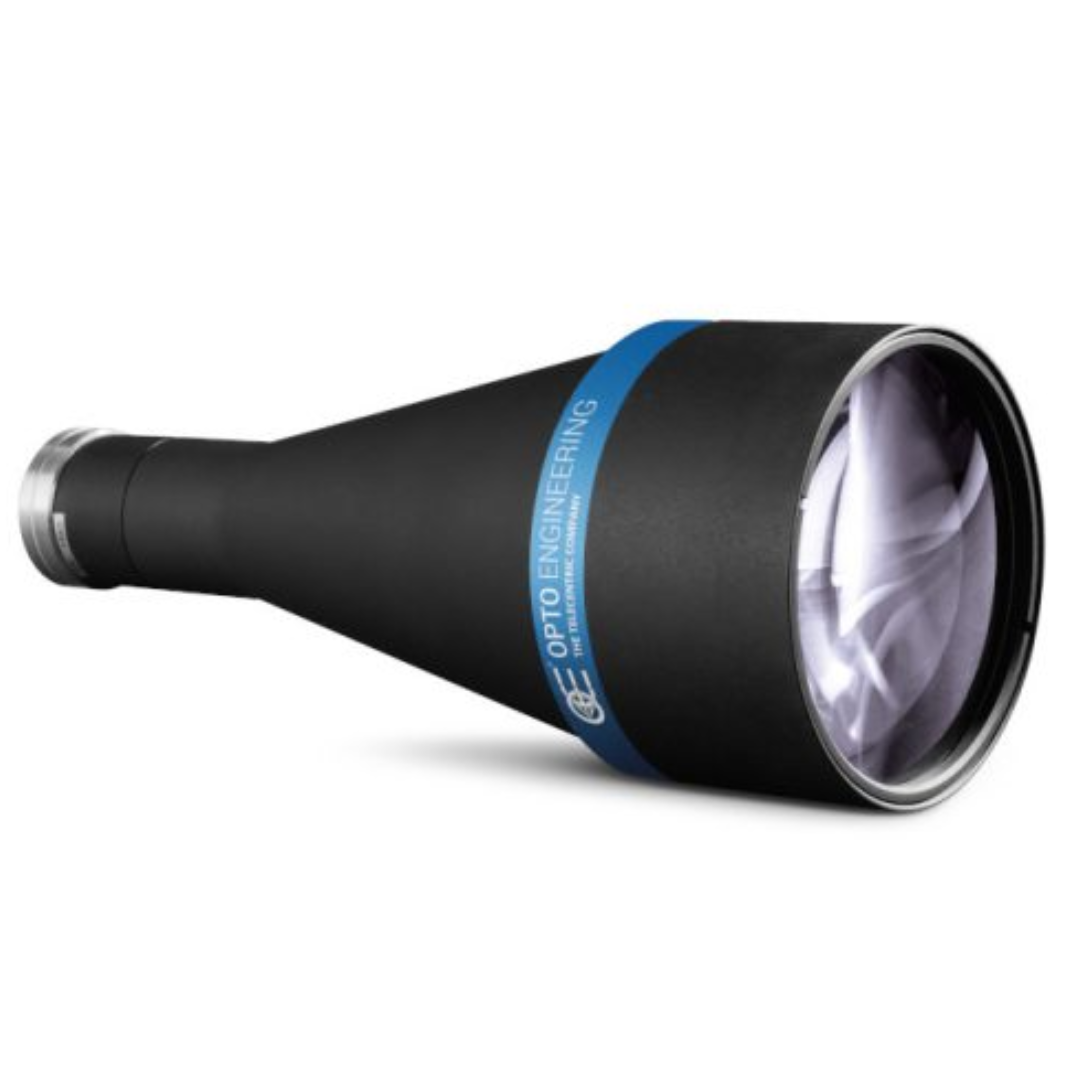

TC series bi-telecentric lenses represent the key component of any measurement system powered by machine vision: these lenses can truly take advantage of high-resolution sensors such as 5 MP – 2/3″
The Opto Engineering® bi-telecentric design makes these optics truly telecentric: no magnification change occurs when an object is moved closer to or away from the lens, making the TC series ideal for measurement applications of mechanical parts ranging from extruded aluminum profiles to tiny clock gears.
No other lenses can offer the same optical performances in terms of telecentrity and distortion: additionally, you can further enhance the depth of field and optical accuracy by pairing our TC lenses with LTCLHP telecentric illuminators. All of our TC lenses are rigorously tested and supplied with a detailed Test Report: we guarantee that 100% of our TC lenses meet or exceed our written specifications.
The Opto Engineering® TC series offers the best performance-to-price ratio available today and is the ideal choice when no compromise can be accepted in terms of reliability and ease of use. Additionally, we supply useful accessories including CMHO clamping mechanics and CMPT mounting plates: mechanical support systems for easy integration in industrial environments, where a solid and secure assembly is required.
| # | Part Number | Magnification | Image Circle Dia (mm) | Max Sensor Size | 1/3" FOV (mm) | 1/2" FOV (mm) | 2/3" FOV (mm) | Working Distance (mm) | Working f/N | Telecentricity typical (max) (deg) | Distortion typical (max) (%) | Depth of Field (mm) | Mount | Phase Adjustment | Length (mm) | Front Dia (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TC23004 | 2.000 | 11.0 | 2/3″ | 2.40 x 1.80 | 3.20 x 2.40 | 4.25 x 3.55 | 56.0 | 11 | < 0.08 (0.10) | < 0.04 (0.08) | 0.1 | C | No | 101.4 | 28 |
| 2 | TC23007 | 1.333 | 11.0 | 2/3″ | 3.60 x 2.70 | 4.80 x 3.60 | 6.38 x 5.32 | 60.1 | 11 | < 0.08 (0.10) | < 0.03 (0.08) | 0.3 | C | No | 78.5 | 28 |
| 3 | TC23009 | 1.000 | 11.0 | 2/3″ | 4.80 x 3.60 | 6.40 x 4.80 | 8.50 x 7.09 | 62.2 | 11 | < 0.08 (0.10) | < 0.04 (0.08) | 0.6 | C | No | 65.0 | 28 |
| 4 | TC23012 | 0.735 | 11.0 | 2/3″ | 6.53 x 4.90 | 8.71 x 6.53 | 11.56 x 9.65 | 53.9 | 14 | < 0.04 (0.10) | < 0.04 (0.10) | 1.3 | C | No | 60.3 | 28 |
| 5 | TC13016 | 0.290 | 6.0 | 1/3″ | 16.55 x 12.41 | ø = 16.55 | ø = 20.69 | 43.1 | 8 | < 0.08 (0.10) | < 0.04 (0.08) | 4.9 | C | No | 80.9 | 37.7 |
| 6 | TC12016 | 0.385 | 8.0 | 1/2″ | 12.47 x 9.35 | 16.62 x 12.47 | ø = 18.42 | 43.1 | 8 | < 0.04 (0.10) | < 0.04 (0.08) | 2.8 | C | No | 93.0 | 37.7 |
| 7 | TC23016 | 0.528 | 11.0 | 2/3″ | 9.09 x 6.82 | 12.12 x 9.09 | 16.10 x 13.43 | 43.1 | 8 | < 0.06 (0.10) | < 0.04 (0.07) | 1.5 | C | No | 112.7 | 37.7 |
| 8 | TC13024 | 0.192 | 6.0 | 1/3″ | 25.00 x 18.75 | ø = 25.00 | ø = 31.25 | 67.2 | 8 | < 0.08 (0.10) | < 0.04 (0.08) | 11.2 | C | No | 105.6 | 44 |
| 9 | TC12024 | 0.255 | 8.0 | 1/2″ | 18.82 x 14.12 | 25.10 x 18.82 | ø = 27.80 | 67.2 | 8 | < 0.08 (0.10) | < 0.04 (0.08) | 6.4 | C | No | 117.8 | 44 |
| 10 | TC23024 | 0.350 | 11.0 | 2/3″ | 13.71 x 10.29 | 18.29 x 13.71 | 24.29 x 20.26 | 67.2 | 8 | < 0.08 (0.10) | < 0.04 (0.10) | 3.4 | C | No | 137.5 | 44 |
| 11 | TC13036 | 0.133 | 6.0 | 1/3″ | 36.09 x 27.07 | ø = 36.09 | ø = 45.11 | 102.6 | 8 | < 0.04 (0.08) | < 0.03 (0.08) | 23.4 | C | No | 133.0 | 61 |
| 12 | TC12036 | 0.177 | 8.0 | 1/2″ | 27.12 x 20.34 | 36.16 x 27.12 | ø = 40.06 | 102.6 | 8 | < 0.03 (0.08) | < 0.04 (0.10) | 13.2 | C | No | 145.2 | 61 |
| 13 | TC23036 | 0.243 | 11.0 | 2/3″ | 19.75 x 14.81 | 26.34 x 19.75 | 34.98 x 29.18 | 102.6 | 8 | < 0.04 (0.08) | < 0.04 (0.10) | 7.0 | C | No | 164.9 | 61 |
| 14 | TC13048 | 0.098 | 6.0 | 1/3″ | 48.98 x 36.73 | ø = 48.98 | ø = 61.22 | 132.5 | 8 | < 0.08 (0.10) | < 0.06 (0.10) | 43.1 | C | No | 167.9 | 75 |
| 15 | TC12048 | 0.134 | 8.0 | 1/2″ | 35.82 x 26.87 | 47.76 x 35.82 | ø = 52.91 | 132.9 | 8 | < 0.07 (0.10) | < 0.06 (0.10) | 23.1 | C | No | 181.5 | 75 |
| 16 | TC23048 | 0.184 | 11.0 | 2/3″ | 26.09 x 19.57 | 34.78 x 26.09 | 46.20 x 38.53 | 132.9 | 8 | < 0.08 (0.10) | < 0.05 (0.10) | 12.2 | C | No | 201.0 | 75 |
| 17 | TC13056 | 0.084 | 6.0 | 1/3″ | 57.14 x 42.86 | ø = 57.14 | ø = 71.43 | 157.5 | 8 | < 0.04 (0.08) | < 0.04 (0.08) | 58.7 | C | No | 191.5 | 80 |
| 18 | TC12056 | 0.114 | 8.0 | 1/2″ | 42.11 x 31.58 | 56.14 x 42.11 | ø = 62.19 | 157.8 | 8 | < 0.04 (0.08) | < 0.04 (0.08) | 31.9 | C | No | 205.0 | 80 |
| 19 | TC23056 | 0.157 | 11.0 | 2/3″ | 30.57 x 22.93 | 40.76 x 30.57 | 54.14 x 45.16 | 157.8 | 8 | < 0.05 (0.08) | < 0.03 (0.08) | 16.8 | C | No | 225.0 | 80 |
| 20 | TC13064 | 0.074 | 6.0 | 1/3″ | 64.86 x 48.65 | ø = 64.86 | ø = 81.08 | 181.9 | 8 | < 0.06 (0.08) | < 0.03 (0.07) | 75.6 | C | No | 212.3 | 100 |
| 21 | TC12064 | 0.100 | 8.0 | 1/2″ | 48.00 x 36.00 | 64.00 x 48.00 | ø = 70.90 | 181.9 | 8 | < 0.05 (0.08) | < 0.04 (0.07) | 41.4 | C | No | 225.9 | 100 |
| 22 | TC23064 | 0.138 | 11.0 | 2/3″ | 34.78 x 26.09 | 46.38 x 34.78 | 61.59 x 51.38 | 181.9 | 8 | < 0.05 (0.08) | < 0.03 (0.07) | 21.7 | C | No | 245.5 | 100 |
| 23 | TC23072 | 0.122 | 11.0 | 2/3″ | 39.34 x 29.51 | 52.46 x 39.34 | 69.67 x 58.11 | 226.8 | 8 | < 0.04 (0.08) | < 0.03 (0.07) | 27.8 | C | Yes | 299.2 | 116 |
| 24 | TC13080 | 0.059 | 6.0 | 1/3″ | 81.36 x 61.02 | ø = 81.36 | ø = 101.69 | 226.8 | 8 | < 0.05 (0.08) | < 0.03 (0.08) | 118.9 | C | No | 259.2 | 116 |
| 25 | TC12080 | 0.080 | 8.0 | 1/2″ | 60.00 x 45.00 | 80.00 x 60.00 | ø = 88.63 | 226.8 | 8 | < 0.03 (0.08) | < 0.04 (0.10) | 64.7 | C | No | 271.5 | 116 |
| 26 | TC23080 | 0.110 | 11.0 | 2/3″ | 43.64 x 32.73 | 58.18 x 43.64 | 77.27 x 64.45 | 226.8 | 8 | < 0.04 (0.08) | < 0.02 (0.10) | 34.2 | C | No | 291.2 | 116 |
| 27 | TC23085 | 0.104 | 11.0 | 2/3″ | 46.15 x 34.62 | 61.54 x 46.15 | 81.73 x 68.17 | 278.6 | 8 | < 0.04 (0.08) | < 0.02 (0.08) | 38.3 | C | Yes | 344.5 | 143 |
| 28 | TC13096 | 0.050 | 6.0 | 1/3″ | 96.00 x 72.00 | ø = 96.00 | ø = 120.00 | 278.6 | 8 | < 0.06 (0.08) | < 0.04 (0.10) | 165.6 | C | No | 303.3 | 143 |
| 29 | TC12096 | 0.068 | 8.0 | 1/2″ | 70.59 x 52.94 | 94.12 x 70.59 | ø = 104.26 | 278.6 | 8 | < 0.06 (0.08) | < 0.03 (0.08) | 89.5 | C | No | 317.0 | 143 |
| 30 | TC23096 | 0.093 | 11.0 | 2/3″ | 51.61 x 38.71 | 68.82 x 51.61 | 91.40 x 76.24 | 278.6 | 8 | < 0.06 (0.08) | < 0.04 (0.08) | 47.9 | C | No | 336.6 | 143 |
| 31 | TC23110 | 0.079 | 11.0 | 2/3″ | 60.76 x 45.57 | 81.01 x 60.76 | 107.59 x 89.75 | 334.6 | 8 | < 0.06 (0.08) | < 0.03 (0.07) | 66.3 | C | Yes | 430.4 | 180 |
| 32 | TC13120 | 0.038 | 6.0 | 1/3″ | 126.32 x 94.74 | ø = 126.32 | ø = 157.89 | 334.6 | 8 | < 0.06 (0.08) | < 0.04 (0.10) | 286.7 | C | Yes | 398.1 | 180 |
| 33 | TC12120 | 0.052 | 8.0 | 1/2″ | 92.31 x 69.23 | 123.08 x 92.31 | ø = 136.35 | 334.6 | 8 | < 0.06 (0.08) | < 0.04 (0.10) | 153.1 | C | Yes | 402.7 | 180 |
| 34 | TC23120 | 0.072 | 11.0 | 2/3″ | 66.67 x 50.00 | 88.89 x 66.67 | 118.06 x 98.47 | 334.6 | 8 | < 0.07 (0.08) | < 0.04 (0.10) | 79.9 | C | Yes | 422.4 | 180 |
| 35 | TC23130 | 0.068 | 11.0 | 2/3″ | 70.59 x 52.94 | 94.12 x 70.59 | 125.00 x 104.26 | 396.0 | 8 | < 0.05 (0.08) | < 0.04 (0.10) | 89.5 | C | Yes | 490.0 | 200 |
| 36 | TC13144 | 0.033 | 6.0 | 1/3″ | 145.45 x 109.09 | ø = 145.45 | ø = 181.82 | 396.0 | 8 | < 0.05 (0.08) | < 0.04 (0.10) | 380.2 | C | Yes | 448.8 | 200 |
| 37 | TC12144 | 0.044 | 8.0 | 1/2″ | 109.09 x 81.82 | 145.45 x 109.09 | ø = 161.14 | 396.0 | 8 | < 0.05 (0.08) | < 0.05 (0.08) | 213.8 | C | Yes | 462.1 | 200 |
| 38 | TC23144 | 0.061 | 11.0 | 2/3″ | 78.69 x 59.02 | 104.92 x 78.69 | 139.34 x 116.23 | 396.0 | 8 | < 0.05 (0.08) | < 0.04 (0.08) | 111.3 | C | Yes | 481.9 | 200 |
| 39 | TC23172 | 0.051 | 11.0 | 2/3″ | 94.12 x 70.59 | 125.49 x 94.12 | 166.67 x 139.02 | 527.6 | 8 | < 0.05 (0.08) | < 0.04 (0.10) | 159.2 | C | Yes | 630.3 | 260 |
| 40 | TC13192 | 0.025 | 6.0 | 1/3″ | 192.00 x 144.00 | ø = 192.00 | ø = 240.00 | 527.6 | 8 | < 0.06 (0.08) | < 0.04 (0.10) | 662.4 | C | Yes | 598.2 | 260 |
| 41 | TC12192 | 0.033 | 8.0 | 1/2″ | 145.45 x 109.09 | 193.94 x 145.45 | ø = 214.85 | 527.6 | 8 | < 0.06 (0.08) | < 0.04 (0.08) | 380.2 | C | Yes | 602.6 | 260 |
| 42 | TC23192 | 0.046 | 11.0 | 2/3″ | 104.35 x 78.26 | 139.13 x 104.35 | 184.78 x 154.13 | 527.6 | 8 | < 0.06 (0.08) | < 0.05 (0.08) | 195.7 | C | Yes | 622.3 | 260 |
| 43 | TC23200 | 0.044 | 11.0 | 2/3″ | 109.09 x 81.82 | 145.45 x 109.09 | 193.18 x 161.14 | 492.8 | 8 | < 0.06 (0.08) | < 0.05 (0.10) | 213.8 | C | Yes | 792.0 | 322 |
| 44 | TC23240 | 0.037 | 11.0 | 2/3″ | 129.73 x 97.30 | 172.97 x 129.73 | 229.73 x 191.62 | 492.8 | 8 | < 0.03 (0.08) | < 0.04 (0.08) | 302.4 | C | Yes | 775.1 | 322 |
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Fast f/2.0 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
High optical performance both at infinity and at 1:5.3 scale
Features special screws to fix focus and aperture settings even in rough situations
