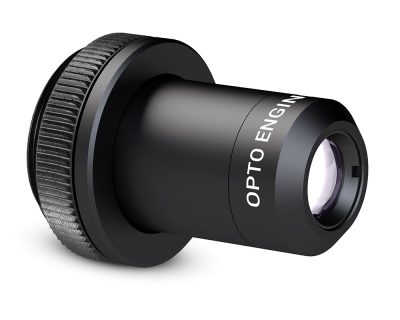

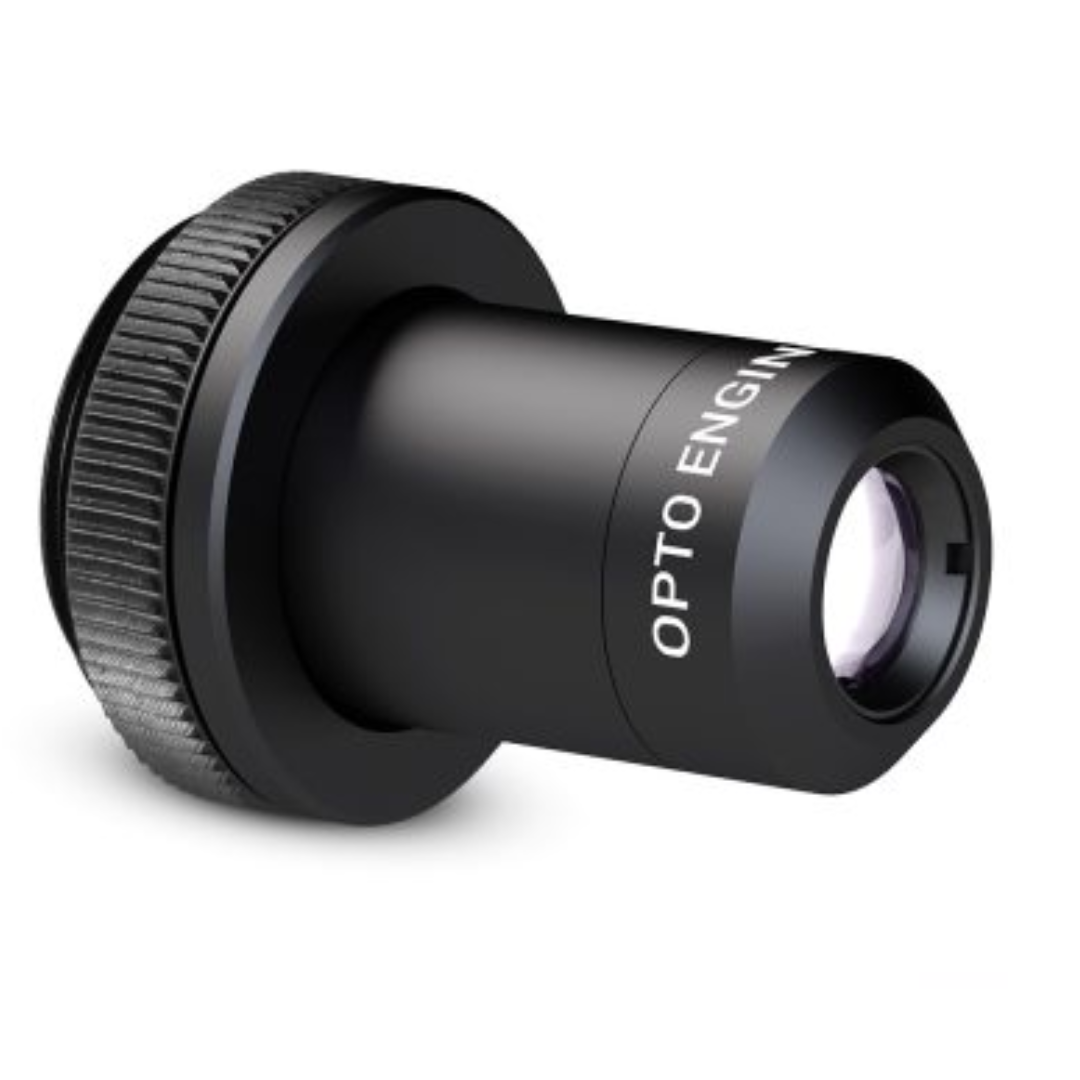

MC3M series is a family of macro lenses designed to capture images of small objects when high resolution and nearly zero distortion are required.
Optimized for 1.1″ sensors, MC3M macro lenses are specifically designed for macro imaging to get the best out of close-range inspections without compromising image distortion, resolution, depth of field, color fidelity, and measurement accuracy.
With magnifications ranging from 0.1x to 6x, these macro lenses are ideal for applications such as positioning/inspection/measurement of objects where a high depth of field is not required (bent metal parts, silicon wafers, quad flat no-lead (QFN) packages, etc.).
Their compact design and high quality/price ratio make them suitable for industrial environments with space restrictions.
| # | Part Number | Magnification | Image Circle Dia (mm) | Max Sensor Size | 1/1.2" FOV (mm) | 1" FOV (mm) | 1.1" FOV (mm) | Working Distance (mm) | f/N | Working f/N | Distortion (%) | Depth of Field (mm) | Mount | Length (mm) | Outer Dia (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | MC3M010X | 0.100 | 17.6 | 1.1″ | 113.50 x 71.30 | 141.90 x 75.10 | 141.60 x 103.70 | 348.4 | 5 | 5.5 | < 0.10 | 28.5 | C | 22.9 | 30.0 |
| 2 | MC3M020X | 0.200 | 17.6 | 1.1″ | 56.75 x 35.65 | 70.95 x 37.55 | 70.80 x 51.85 | 187.2 | 5 | 6 | < 0.08 | 7.8 | C | 26.1 | 30.0 |
| 3 | MC3M033X | 0.333 | 17.6 | 1.1″ | 34.08 x 21.41 | 42.61 x 22.55 | 42.52 x 31.14 | 122.7 | 5 | 6.5 | < 0.05 | 3.0 | C | 30.4 | 30.0 |
| 4 | MC3M040X | 0.400 | 17.6 | 1.1″ | 28.38 x 17.83 | 35.48 x 18.78 | 35.40 x 25.93 | 106.6 | 5 | 7 | < 0.05 | 2.3 | C | 32.5 | 30.0 |
| 5 | MC3M050X | 0.500 | 17.6 | 1.1″ | 22.70 x 14.26 | 28.38 x 15.02 | 28.32 x 20.74 | 90.5 | 5 | 7.5 | < 0.03 | 1.6 | C | 35.7 | 30.0 |
| 6 | MC3M075X | 0.750 | 17.6 | 1.1″ | 15.13 x 9.51 | 18.92 x 10.01 | 18.88 x 13.83 | 69.1 | 5 | 9 | < 0.03 | 0.8 | C | 43.8 | 30.0 |
| 7 | MC3M100X | 1.000 | 17.6 | 1.1″ | 11.35 x 7.13 | 14.19 x 7.51 | 14.16 x 10.37 | 58.3 | 5 | 10 | < 0.02 | 0.5 | C | 51.8 | 30.0 |
| 8 | MC3M150X | 1.500 | 17.6 | 1.1″ | 7.57 x 4.75 | 9.46 x 5.01 | 9.44 x 6.91 | 47.6 | 5 | 13 | < 0.02 | 0.3 | C | 67.9 | 30.0 |
| 9 | MC3M200X | 2.000 | 17.6 | 1.1″ | 5.68 x 3.57 | 7.10 x 3.76 | 7.08 x 5.19 | 42.3 | 5 | 15 | < 0.02 | 0.2 | C | 84.1 | 30.0 |
| 10 | MC3M300X | 3.000 | 17.6 | 1.1″ | 3.78 x 2.38 | 4.73 x 2.50 | 4.72 x 3.46 | 36.9 | 5 | 20.5 | < 0.03 | 0.1 | C | 116.4 | 30.0 |
| 11 | MC3M400X | 4.000 | 17.6 | 1.1″ | 2.84 x 1.78 | 3.55 x 1.88 | 3.54 x 2.59 | 34.2 | 5 | 26 | < 0.03 | 0.1 | C | 148.6 | 30.0 |
| 12 | MC3M500X | 5.000 | 17.6 | 1.1″ | 2.27 x 1.43 | 2.84 x 1.50 | 2.83 x 2.07 | 32.6 | 5 | 31 | < 0.03 | 0.1 | C | 180.8 | 30.0 |
| 13 | MC3M600X | 6.000 | 17.6 | 1.1″ | 1.89 x 1.19 | 2.37 x 1.25 | 2.36 x 1.73 | 31.6 | 5 | 36 | < 0.03 | 0.1 | C | 213.1 | 30.0 |
Pyrite’s Key Features:
Zirconia’s Key Features:
All Interlock® lenses from ZEISS offer extraordinary image quality with high contrast for technical and industrial applications. They feature an improved fixture for focus and aperture as well as a full metal housing for robustness. The lenses impress with their high image quality and precise manual focus. They are available with standard F-Mount and standard M42x1 Mount (45,5 mm Flange Focal Distance) for even more stability.
The ZEISS Interlock family consists of eleven focal lengths range from 15 mm to 135 mm. With additional focal lengths and improved fixations they complete the lenses of the ZEISS Classic family.
Features:
Very fast f/1.4 aperture
Precise manual focusing
Robust full-metal construction
Continuous aperture setting or click stop
For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
High optical performance both at infinity and at 1:6.7 scale
Features special screws to fix focus and aperture settings even in rough situations
